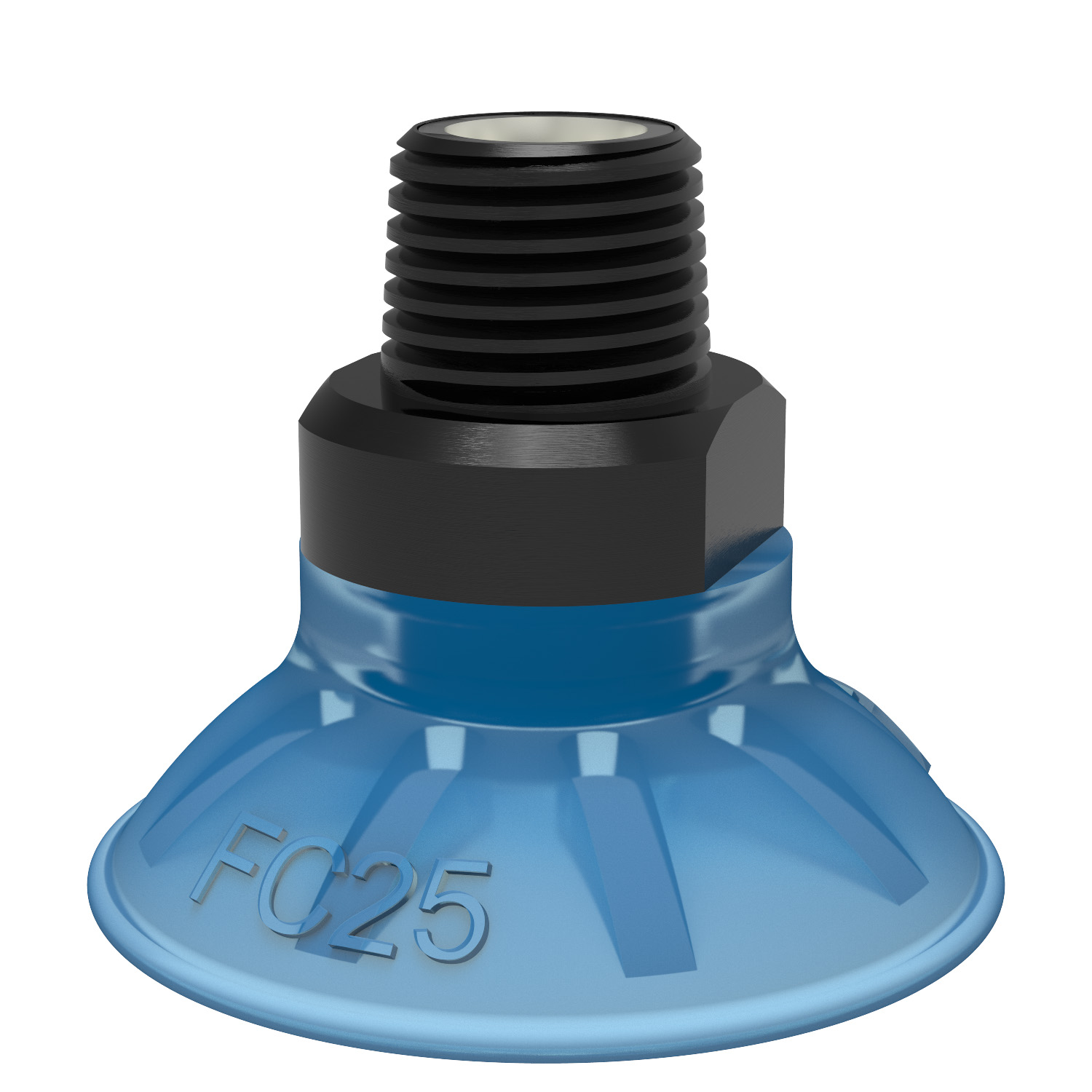

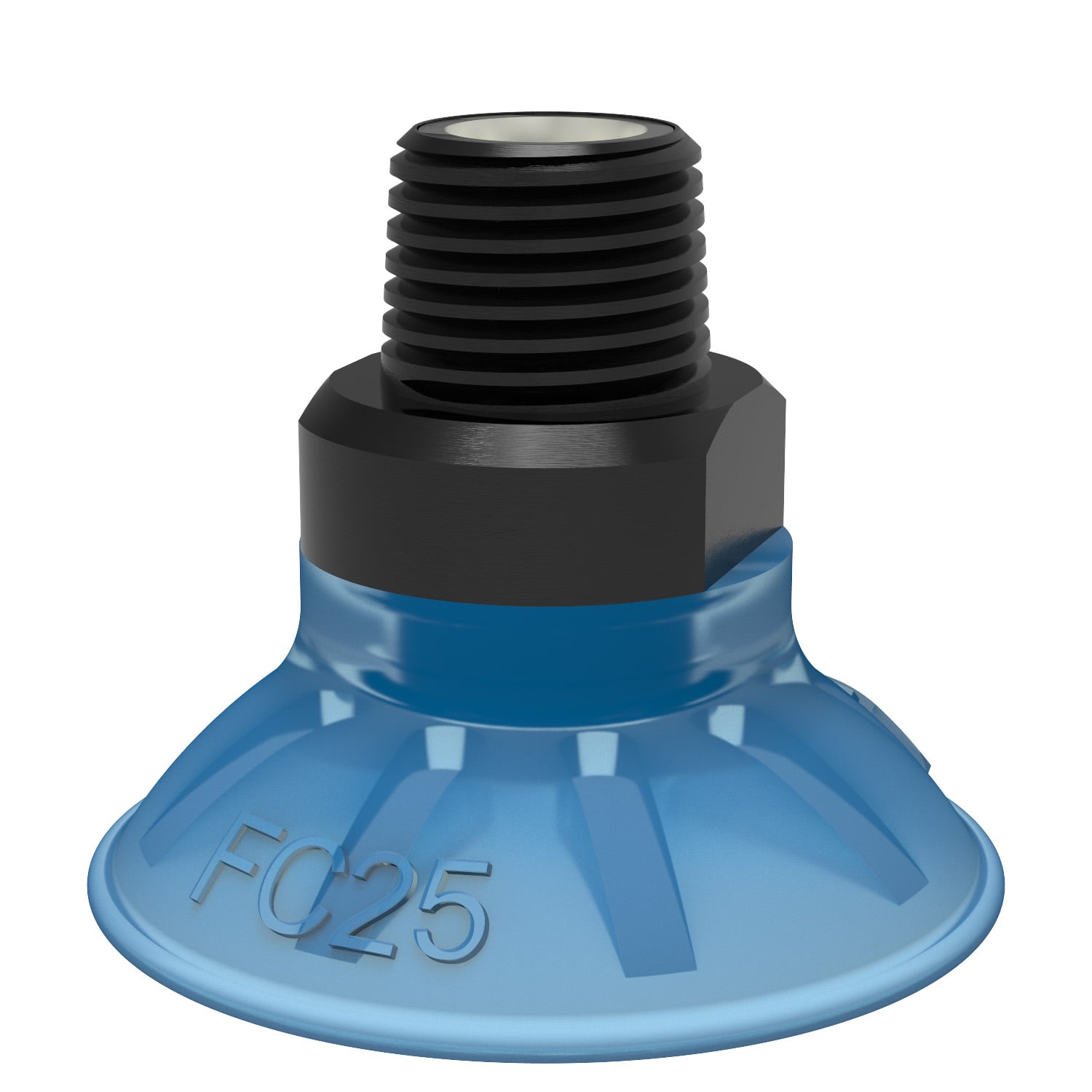

Suction cup FC25P Polyurethane 50, 1/8" NPT male, with dual flow control valve - 1
Item number: 9908672
77 Variants

Suction cup FC25P Polyurethane 50, 1/8" NPT male, with dual flow control valve

DURAFLEX® suction cups have been developed to meet the strict demands of the automotive industry. A typical application is the feeding of sheet metal into a press tool. The slightly curved shape and internal cleats provide a good grip and the strengthened lip extends the life of the cup considerably. Also available in oval shape for oblong objects.
Login or create account to access all our content and features!
DownloadsShare via email

Size

20 mm (50 Sh)
25 mm (50 Sh)
35 mm (50 Sh)
35 mm (60 Sh)
50 mm (40 Sh)
50 mm (60 Sh)
75 mm (40 Sh)
75 mm (60 Sh)
100 mm (40 Sh)
100 mm (60 Sh)
150 mm (40 Sh)
150 mm (60 Sh)

Fitting

Without fitting None
Without fitting Thread insert, None
5xM5 FemaleAl, Brass, PA
5xM5 FemaleDual flow control valve, Al, Brass, PA
M5 FemaleAl
G 1/8" Male, M5 FemaleFilter mesh, Al
M5 FemaleDual flow control valve, Al
G 1/8" MaleFilter mesh, Al
G 1/8" MaleDual flow control valve, Al
G 1/4" MaleFilter mesh, Al
G 1/4" MaleDual flow control valve, Filter mesh, Al
G 3/8" MaleFilter mesh, Al
G 3/8" MaleDual flow control valve, Filter mesh, Al
G 3/8" Male, 1/8" NPSF FemaleAl
G 1/8" FemaleAl
G 1/8" FemaleDual flow control valve, Al
G 3/8" FemaleAl
G 3/8" FemaleFilter mesh, Al
G 1/2" FemaleFilter mesh, Al
1/8" NPT MaleFilter mesh, Al
1/8" NPT MaleDual flow control valve, Al
1/4" NPT MaleFilter mesh, Al
1/4" NPT MaleDual flow control valve, Al
3/8" NPT MaleFilter mesh, Al
3/8" NPT MaleDual flow control valve, Al
1/8" NPSF FemaleFilter mesh, Al
1/8" NPSF FemaleAl
1/8" NPSF FemaleDual flow control valve, Al
5x1/8" NPSF FemaleAl
3/8" NPSF FemaleAl
3/8" NPSF FemaleFilter mesh, Al
Not compatible with the selected fitting or size. Choosing this option will adjust the size/fitting.

Features

  • Suitable for lifting small objects and narrow parts, also slightly domed, flat and oily surfaces, e.g., such as those encountered when handling steel sheets in press processes.
  • Thanks to the high friction of the rubber material, the suction cups can withstand high forces at rapid accelerations in horizontal directions, even on oily surfaces.
  • The suction cups have cleats that prevent thin objects from being disfigured.
  • DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
