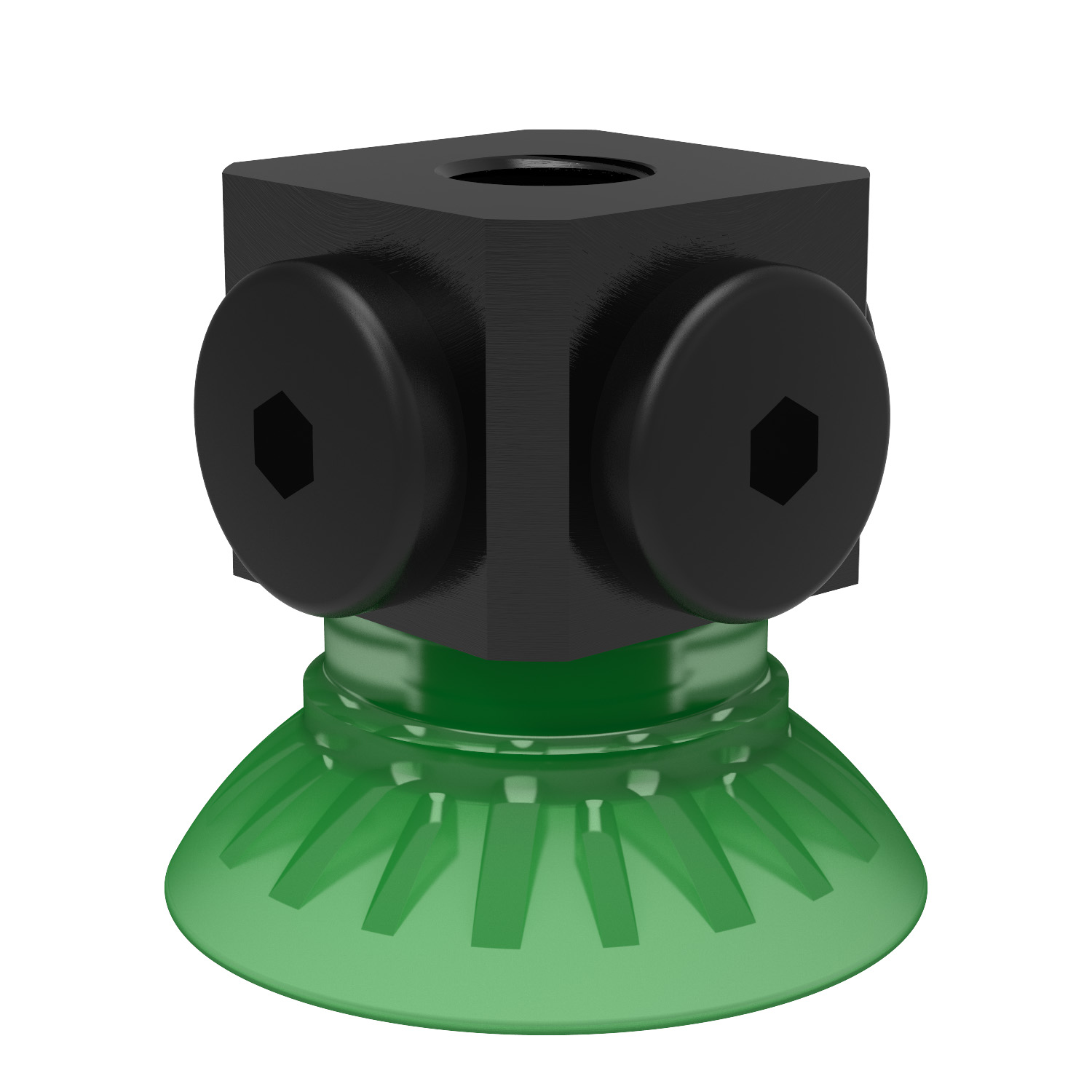

Suction cup FC35P Polyurethane 60, 5x1/8" NPSF female - 1
Item number: 0103728
19 Variants

Suction cup FC35P Polyurethane 60, 5x1/8" NPSF female

DURAFLEX® suction cups have been developed to meet the strict demands of the automotive industry. A typical application is the feeding of sheet metal into a press tool. The slightly curved shape and internal cleats provide a good grip and the strengthened lip extends the life of the cup considerably. Also available in oval shape for oblong objects.
Login or create account to access all our content and features!
DownloadsShare via email

Variants

  • Suction cup FC35P Polyurethane 50
    0103290
  • Suction cup FC35P Polyurethane 60
    0103291
  • Suction cup FC35P Polyurethane 50, 1/8" NPSF female, with mesh filter
    0103705
  • Suction cup FC35P Polyurethane 60, 1/8" NPSF female, with mesh filter
    0103706
  • Suction cup FC35P Polyurethane 50, 1/8" NPSF female
    0103707
  • Suction cup FC35P Polyurethane 50, 1/8" NPSF female, with dual flow control valve
    0103709
  • Suction cup FC35P Polyurethane 50, G1/4" male, with mesh filter
    0103711
  • Suction cup FC35P Polyurethane 60, G1/4" male, with mesh filter
    0103712
  • Suction cup FC35P Polyurethane 50, G1/4" male, with dual flow control valve
    0103713
  • Suction cup FC35P Polyurethane 50, 1/4" NPT male, with mesh filter
    0103715
  • Suction cup FC35P Polyurethane 50, G3/8" male, with mesh filter
    0103719
  • Suction cup FC35P Polyurethane 60, G3/8" male, with mesh filter
    0103720
  • Suction cup FC35P Polyurethane 60, G3/8" male, with dual flow control valve
    0103722
  • Suction cup FC35P Polyurethane 60, 5x1/8" NPSF female
    0103728
  • Suction cup FC35P Polyurethane 60, 1/8" NPSF female
    0103708
  • Suction cup FC35P Polyurethane 60, 1/4" NPT male, with mesh filter
    0103716
  • Suction cup FC35P Polyurethane 60, 3/8" NPT male, with mesh filter
    0103724
  • Suction cup FC35P Polyurethane 60, 1/4" NPT male, with dual flow control valve
    0103718
  • Suction cup FC35P Polyurethane 60, 3/8" NPT male, with dual flow control valve
    0103726

Features

  • Suitable for slightly domed and flat and oily surfaces, e.g., such as those encountered when handling steel sheets in press processes.
  • Thanks to the high friction of the rubber material, the suction cups can withstand high forces at rapid accelerations in horizontal directions, even on oily surfaces.
  • The suction cups have cleats that prevent thin objects from being disfigured.
  • DURAFLEX® material features the elasticity of rubber in combination with the wear resistance of polyurethane.
  • The DURAFLEX® material is mark-free.
