Item number: 9907342
12 Variants

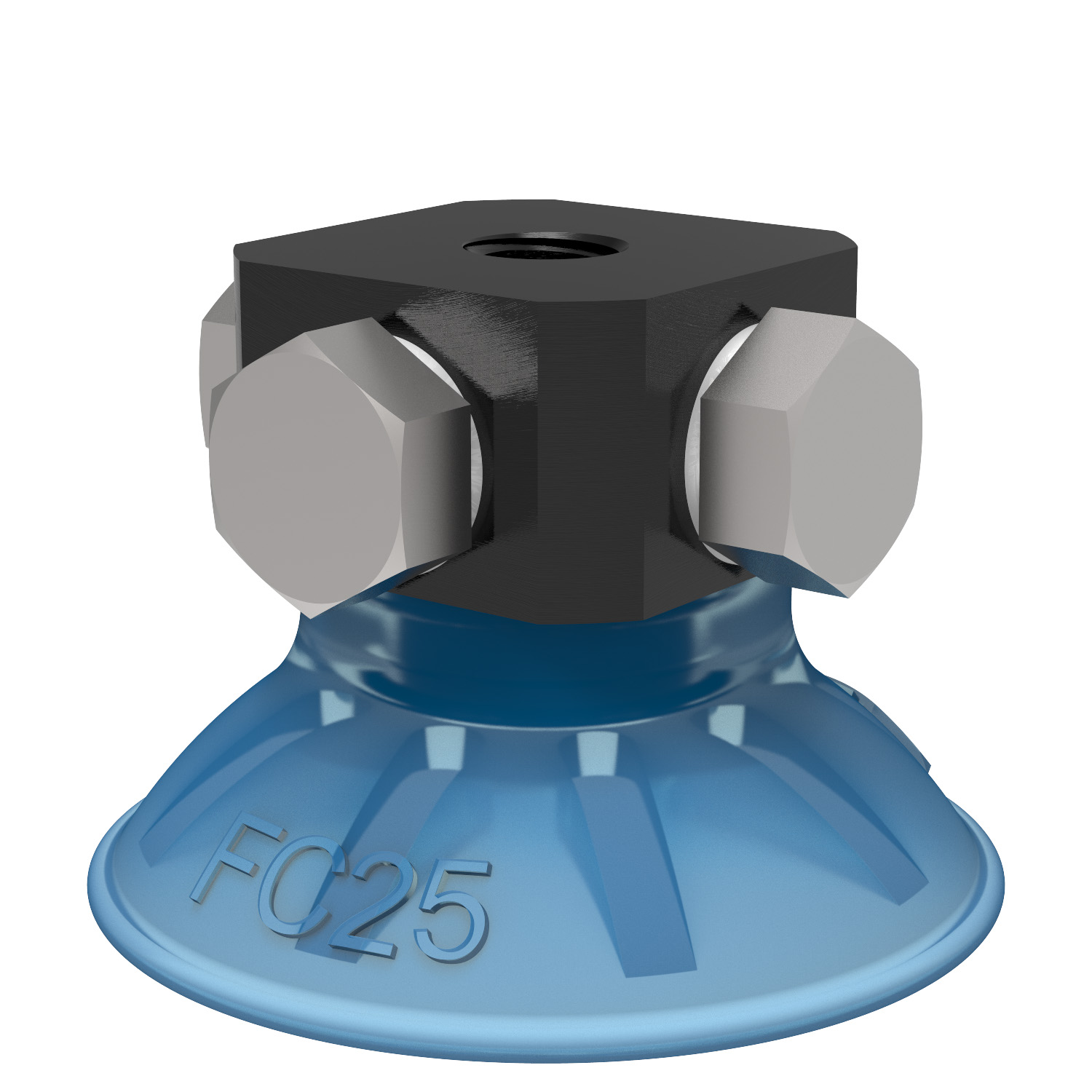

Suction cup FC25P Polyurethane 50, 5xM5 female
DURAFLEX® suction cups have been developed to meet the strict demands of the automotive industry. A typical application is the feeding of sheet metal into a pre...
Read more
Login or create account to access all our content and features!
Variants
0104803
0106719
0106720
0106721
0107356
9908541
9907342
9908670
9908671
9908672
9908673
9908674
Features
- Suitable for lifting small objects and narrow parts, also slightly domed, flat and oily surfaces, e.g., such as those encountered when handling steel sheets in press processes.
- Thanks to the high friction of the rubber material, the suction cups can withstand high forces at rapid accelerations in horizontal directions, even on oily surfaces.
- The suction cups have cleats that prevent thin objects from being disfigured.
- DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
Automotive
- Exterior and interior trim components assembly
Packaging
- Case / carton erecting, case / carton opening closing
- Rotary carton feeding
- Slip sheet feeding
- Tray forming, tray unloading and loading
- Boxes and containers
- Robot pick and place and packing
- Card / lid feeding and sorting
General
Material
Polyurethane (PU)
Characteristics
Dry sheet metal
Suction cup model
FC
Volume
3 cm³
Weight, min.
3 g
Fitting
Fitting option
None
Fitting size
5×M5
Fitting style
Female
Fitting type
M-thread
Dimension
Height
21.5 mm
Outer diameter, min.
28.5 mm
Performance - lifting forces
FC25P
20 -kPa
8 N
9 N
60 -kPa
20 N
12 N
90 -kPa
27 N
18 N
Material
Name
Polyurethane (PU50)
Colour
BlueTransparent
Temperature
10 - 50 °C
Hardness
50 °Shore A
Material resistance
Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Petrol
Wear resistance
