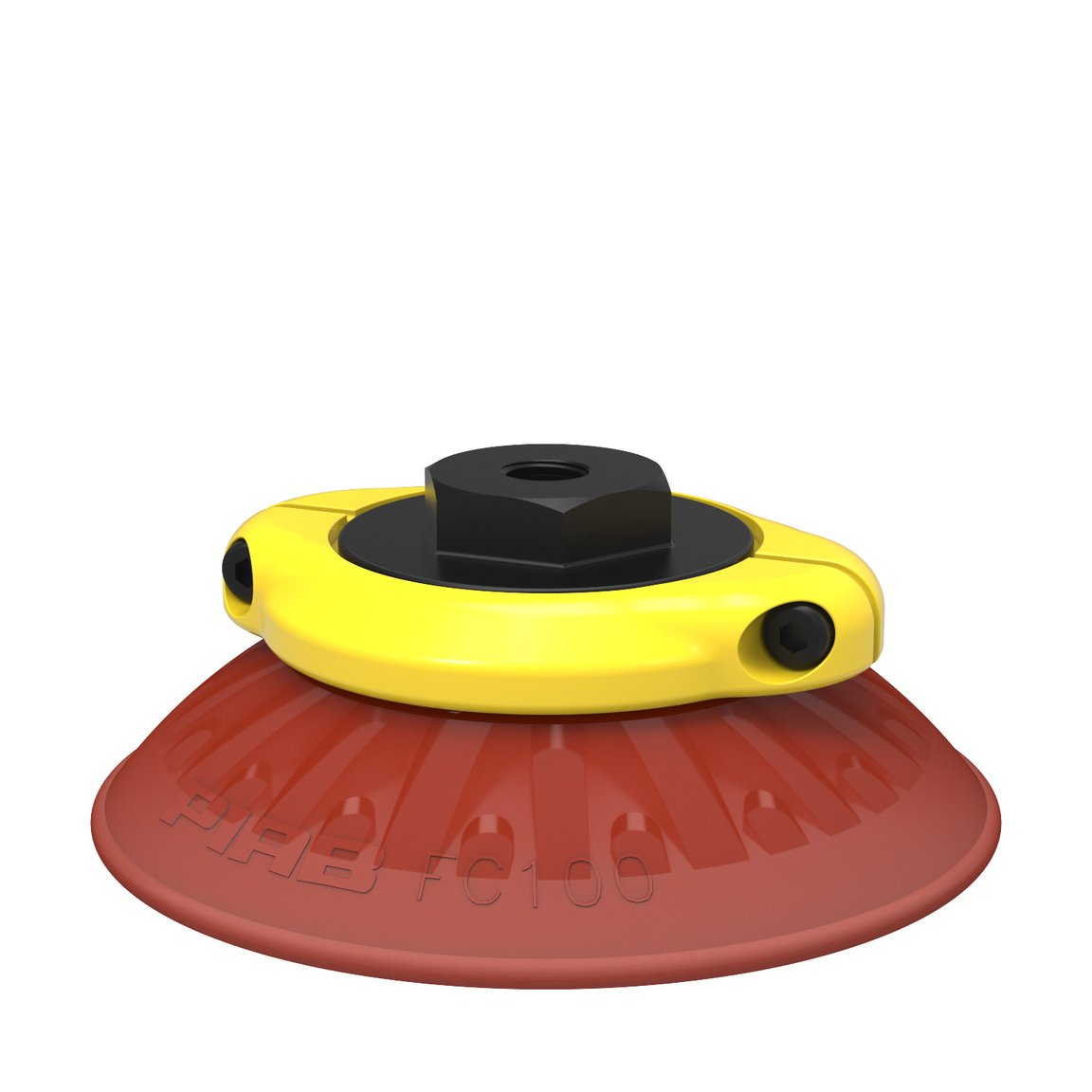

Suction cup FC100P Polyurethane 40, 1/8" NPSF female - 1
Item number: 0103731
23 Variants

Suction cup FC100P Polyurethane 40, 1/8" NPSF female

DURAFLEX® suction cups have been developed to meet the strict demands of the automotive industry. A typical application is the feeding of sheet metal into a press tool. The slightly curved shape and internal cleats provide a good grip and the strengthened lip extends the life of the cup considerably. Also available in oval shape for oblong objects.
Login or create account to access all our content and features!
DownloadsShare via email

Variants

  • Suction cup FC100P Polyurethane 40
    0103297
  • Suction cup FC100P Polyurethane 60
    0103299
  • Suction cup FC100P Polyurethane 40, 1/8" NPSF female
    0103731
  • Suction cup FC100P Polyurethane 60, 1/8" NPSF female
    0103733
  • Suction cup FC100P Polyurethane 40, G3/8" female
    0103734
  • Suction cup FC100P Polyurethane 60, G3/8" female
    0103736
  • Suction cup FC100P Polyurethane 40, 3/8" NPSF female
    0103737
  • Suction cup FC100P Polyurethane 60, 3/8" NPSF female
    0103739
  • Suction cup FC100P Polyurethane 40, G1/2" female
    0103740
  • Suction cup FC100P Polyurethane 60, G1/2" female
    0103742
  • Suction cup FC100P Polyurethane 40 with collar for Vacuum Gripper System (VGS)
    0106835
  • Suction cup FC100P Polyurethane 40, thread insert G3/8" with mesh filter for Vacuum Gripper System (VGS)
    0106836
  • Suction cup FC100P Polyurethane 60 with collar for Vacuum Gripper System (VGS)
    0107304
  • Suction cup FC100P Polyurethane 60, thread insert G3/8" with mesh filter for Vacuum Gripper System (VGS)
    0107305
  • Suction cup FC100P Polyurethane 40, brass 3/8" NPSF female
    0108798
  • Suction cup FC100P Polyurethane 60, brass 3/8" NPSF female
    0108799
  • Suction cup FC100 Nitrile-PVC 60
    3150213P
  • Suction cup FC100 Nitrile-PVC 60, G3/8" male
    3250062P
  • Suction cup FC100 Nitrile-PVC 60, 1/8" NPSF female, with mesh filter
    0101880
  • Suction cup FC100 Nitrile-PVC 60, with washer
    3150094P
  • Suction cup FC100 Nitrile-PVC 60, G3/8" female, with mesh filter
    0101881
  • Suction cup FC100 Nitrile-PVC 60, 3/8" NPSF female, with mesh filter
    0101882
  • Suction cup FC100 Nitrile-PVC 60, G1/2" female, with mesh filter
    0101883

Features

  • Suitable for slightly domed and flat and oily surfaces, e.g., such as those encountered when handling steel sheets in press processes.
  • Thanks to the high friction of the rubber material, the suction cups can withstand high forces at rapid accelerations in horizontal directions, even on oily surfaces.
  • The suction cups have cleats that prevent thin objects from being disfigured.
  • DURAFLEX® material features the elasticity of rubber in combination with the wear resistance of polyurethane.
  • The DURAFLEX® material is mark-free.
