Item number: 0103294
9 Variants

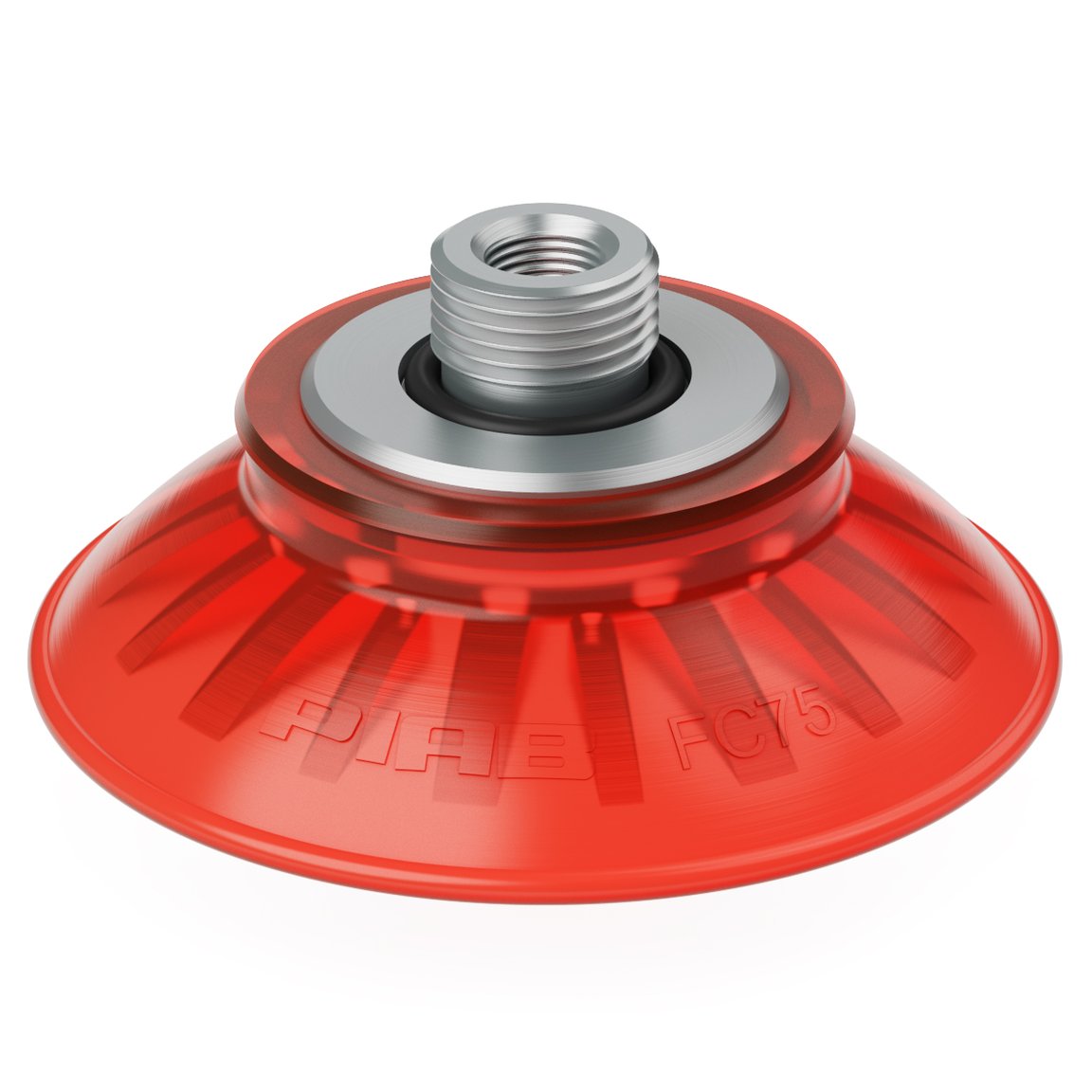

Suction cup FC75P Polyurethane 40, G3/8" male - 1/8" NPSF female
DURAFLEX® suction cups have been developed to meet the strict demands of the automotive industry. A typical application is the feeding of sheet metal into a pre...
Read more
Login or create account to access all our content and features!
Variants
0103294
0103296
0106948
0106959
0107302
0107303
0108796
0108797
3150067P
Features
- Suitable for slightly domed and flat and oily surfaces, e.g., such as those encountered when handling steel sheets in press processes.
- Thanks to the high friction of the rubber material, the suction cups can withstand high forces at rapid accelerations in horizontal directions, even on oily surfaces.
- The suction cups have cleats that prevent thin objects from being disfigured.
- DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
Automotive
- Exterior and interior trim components assembly
Packaging
- Case / carton erecting, case / carton opening closing
- Rotary carton feeding
- Slip sheet feeding
- Tray forming, tray unloading and loading
- Boxes and containers
- Robot pick and place and packing
- Card / lid feeding and sorting
General
Material
Polyurethane (PU)
Characteristics
Dry sheet metal , Mark free
Suction cup model
FC
Volume
30 cm³
Weight, min.
45 g
Fitting
Fitting option
None
Fitting size
3/8"
Fitting style
Female
Fitting type
G-thread
Dimension
Height
33.5 mm
Outer diameter, min.
75 mm
Performance - lifting forces
FC75P PU40
20 -kPa
73 N
107 N
60 -kPa
157 N
200 N
90 -kPa
215 N
230 N
Material
Name
Polyurethane (PU40)
Colour
RedTransparent
Temperature
10 - 50 °C
Hardness
40 °Shore A
Material resistance
Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Petrol
Wear resistance
