Suction cup FC75P Polyurethane 60, thread insert G3/8" with mesh filter for Vacuum Gripper System (VGS) - 1
Item number: FC75P.5E.G40M
9 Variants

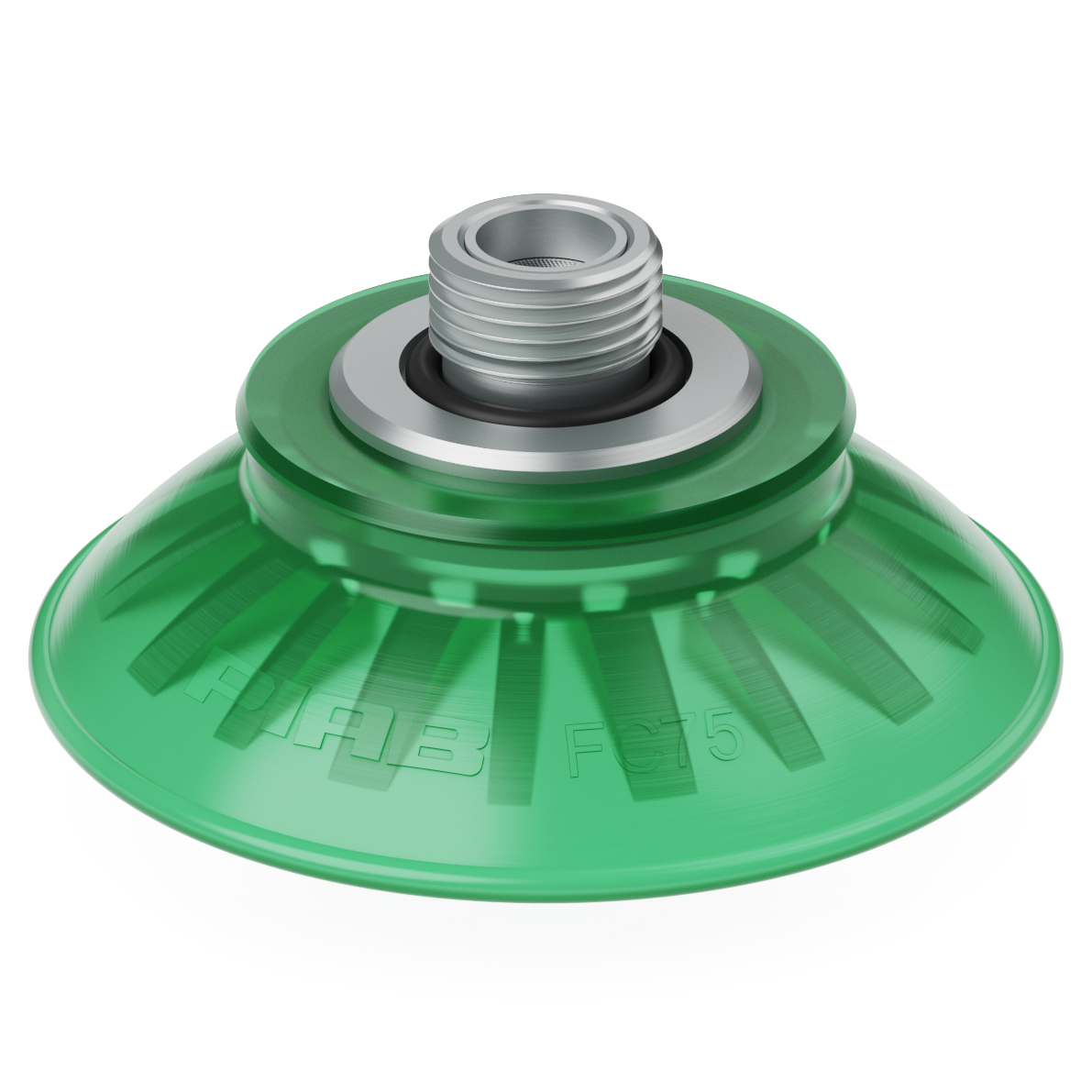

Suction cup FC75P Polyurethane 60, thread insert G3/8" with mesh filter for Vacuum Gripper System (VGS)

DURAFLEX® suction cups have been developed to meet the strict demands of the automotive industry. A typical application is the feeding of sheet metal into a press tool. The slightly curved shape and internal cleats provide a good grip and the strengthened lip extends the life of the cup considerably. Also available in oval shape for oblong objects.
Login or create account to access all our content and features!
DownloadsShare via email

Variants

  • Suction cup FC75P Polyurethane 40, G3/8" male - 1/8" NPSF female
    FC75P.4C.07UF
  • Suction cup FC75P Polyurethane 60, G3/8" male - 1/8" NPSF female
    FC75P.4E.07UF

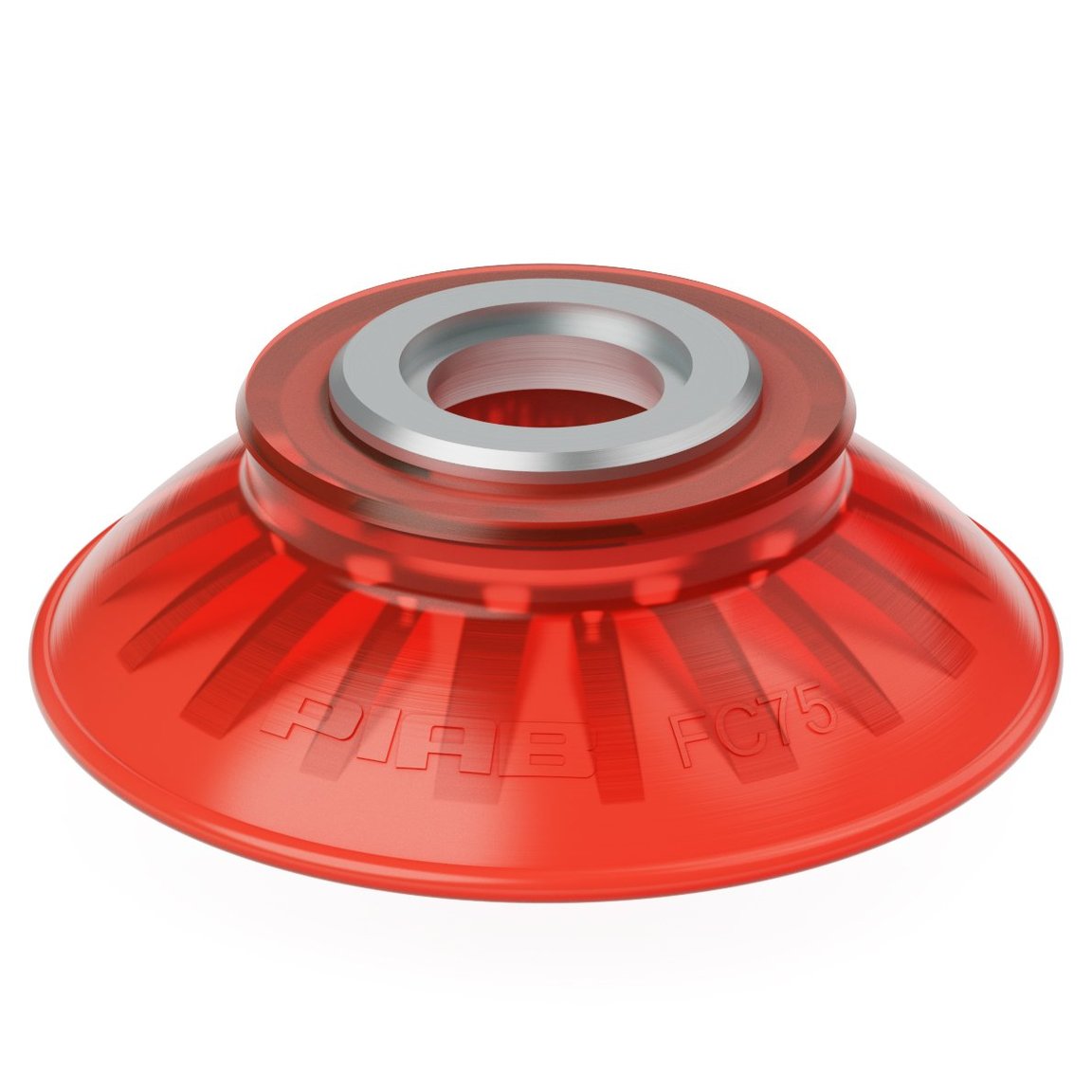

  • Suction cup FC75P Polyurethane 40, for tread insert
    01.06.948
  • Suction cup FC75P Polyurethane 40, thread insert G3/8" with mesh filter for Vacuum Gripper System (VGS)
    FC75P.5C.G40M
  • Suction cup FC75P Polyurethane 60, for tread insert
    01.07.302
  • Suction cup FC75P Polyurethane 60, thread insert G3/8" with mesh filter for Vacuum Gripper System (VGS)
    FC75P.5E.G40M
  • Suction cup FC75P Polyurethane 40, brass 3/8" NPSF female
    FC75P.5C.N40W
  • Suction cup FC75P Polyurethane 60, brass 3/8" NPSF female
    FC75P.5E.N40W

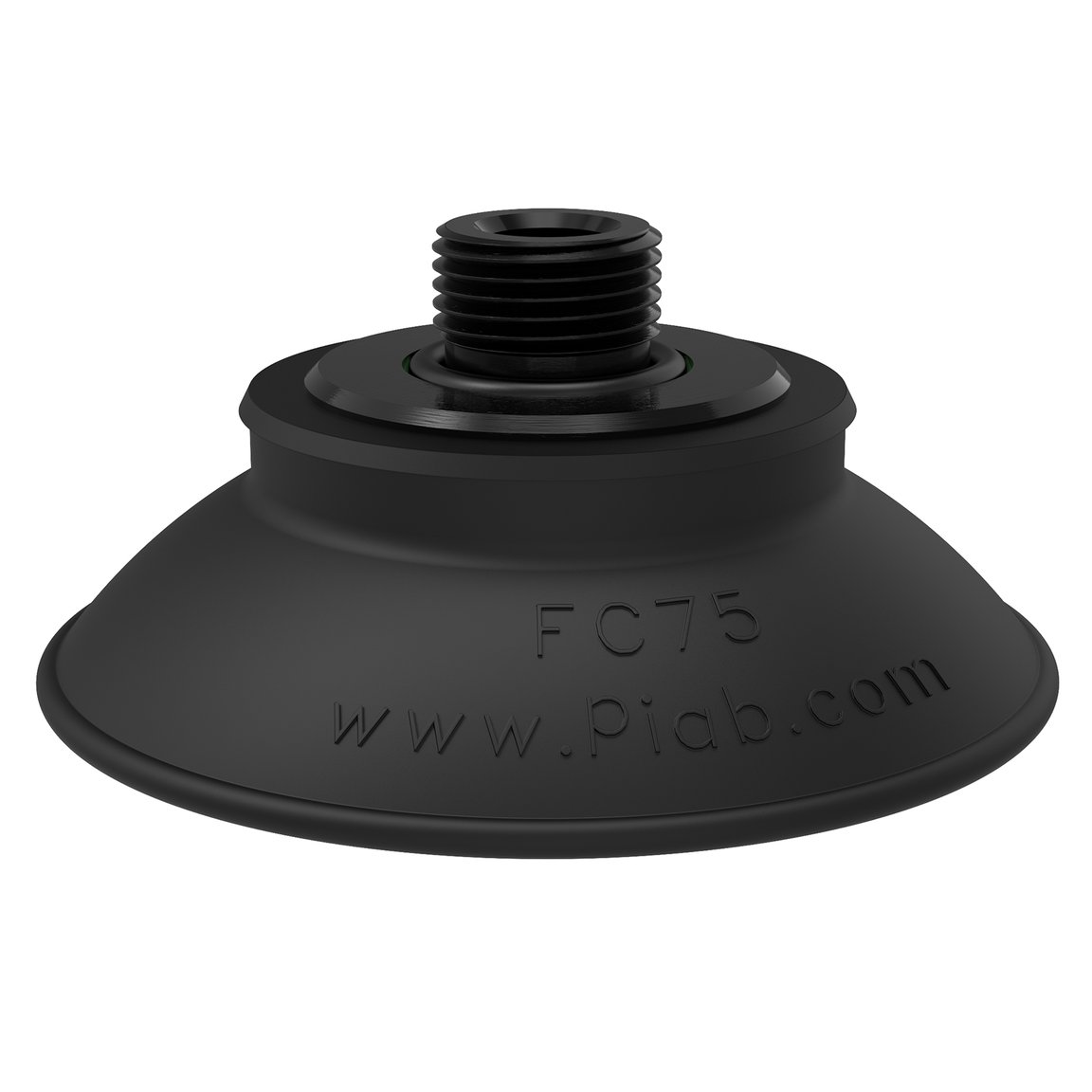

  • Suction Cup FC75 Nitrile-PVC 60, G3/8" male - 1/8" NPSF female
    FC75.30.07UF

Features

  • Suitable for slightly domed and flat and oily surfaces, e.g., such as those encountered when handling steel sheets in press processes.
  • Thanks to the high friction of the rubber material, the suction cups can withstand high forces at rapid accelerations in horizontal directions, even on oily surfaces.
  • The suction cups have cleats that prevent thin objects from being disfigured.
  • DURAFLEX® material features the elasticity of rubber in combination with the wear resistance of polyurethane.
  • The DURAFLEX® material is mark-free.
