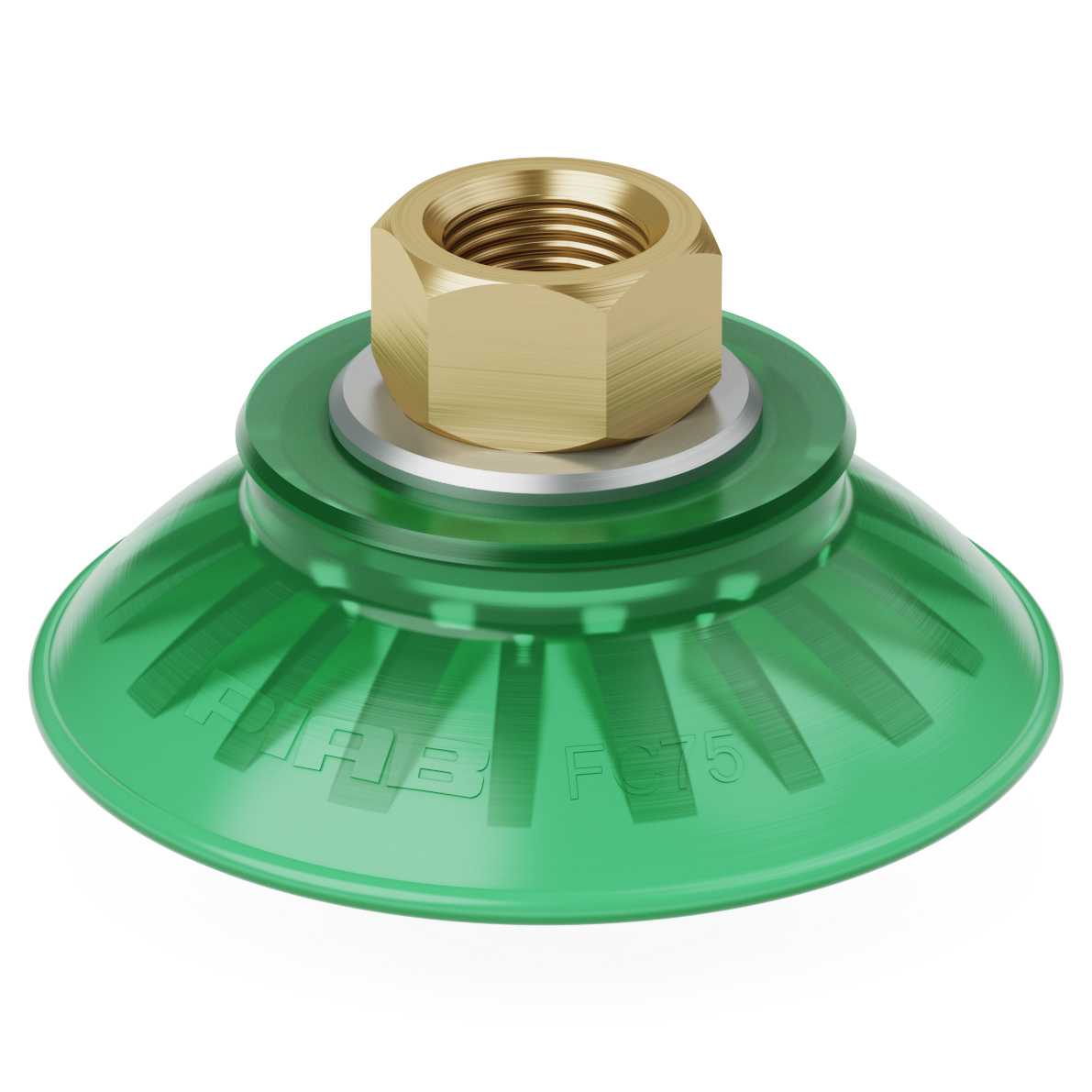

Suction cup FC75P Polyurethane 60, brass 3/8" NPSF female - 1
Item number: FC75P.5E.N40W
29 Variants

Suction cup FC75P Polyurethane 60, brass 3/8" NPSF female

0
Login or create account to access all our content and features!
DownloadsShare via email

Size

100 mm (40 Sh)
100 mm (60 Sh)
150 mm (40 Sh)
150 mm (60 Sh)
20 mm (50 Sh)
25 mm (50 Sh)
35 mm (50 Sh)
35 mm (60 Sh)
50 mm (40 Sh)
50 mm (60 Sh)
75 mm (40 Sh)
75 mm (60 Sh)

Fitting

1/4" NPT MaleFilter mesh, Al
1/8" NPSF FemaleFilter mesh, Al
1/8" NPT MaleFilter mesh, Al
3/8" NPSF FemaleAl
3/8" NPT MaleFilter mesh, Al
5x1/8" NPSF FemaleAl
5xM5 FemaleAl
G 1/2" FemaleFilter mesh, Al
G 1/4" MaleFilter mesh, Al
G 1/8" FemaleAl
G 1/8" MaleFilter mesh, SS
G 1/8" Male, M5 FemaleFilter mesh, Al
G 3/8" FemaleAl
G 3/8" MaleFilter mesh, Al
G 3/8" Male, 1/8" NPSF FemaleAl
M5 FemaleAl
Without fitting None
Not compatible with the selected fitting or size. Choosing this option will adjust the size/fitting.

Features

  • Suitable for lifting small objects and narrow parts, also slightly domed, flat and oily surfaces, e.g., such as those encountered when handling steel sheets in press processes
  • Thanks to the high friction of the rubber material, the suction cups can withstand high forces at rapid accelerations in horizontal directions, even on oily surfaces.
  • The suction cups have cleats that prevent thin objects from being disfigured.
  • DURAFLEX® material features the elasticity of rubber in combination with the wear resistance of polyurethane.
  • The DURAFLEX® material is mark-free.
