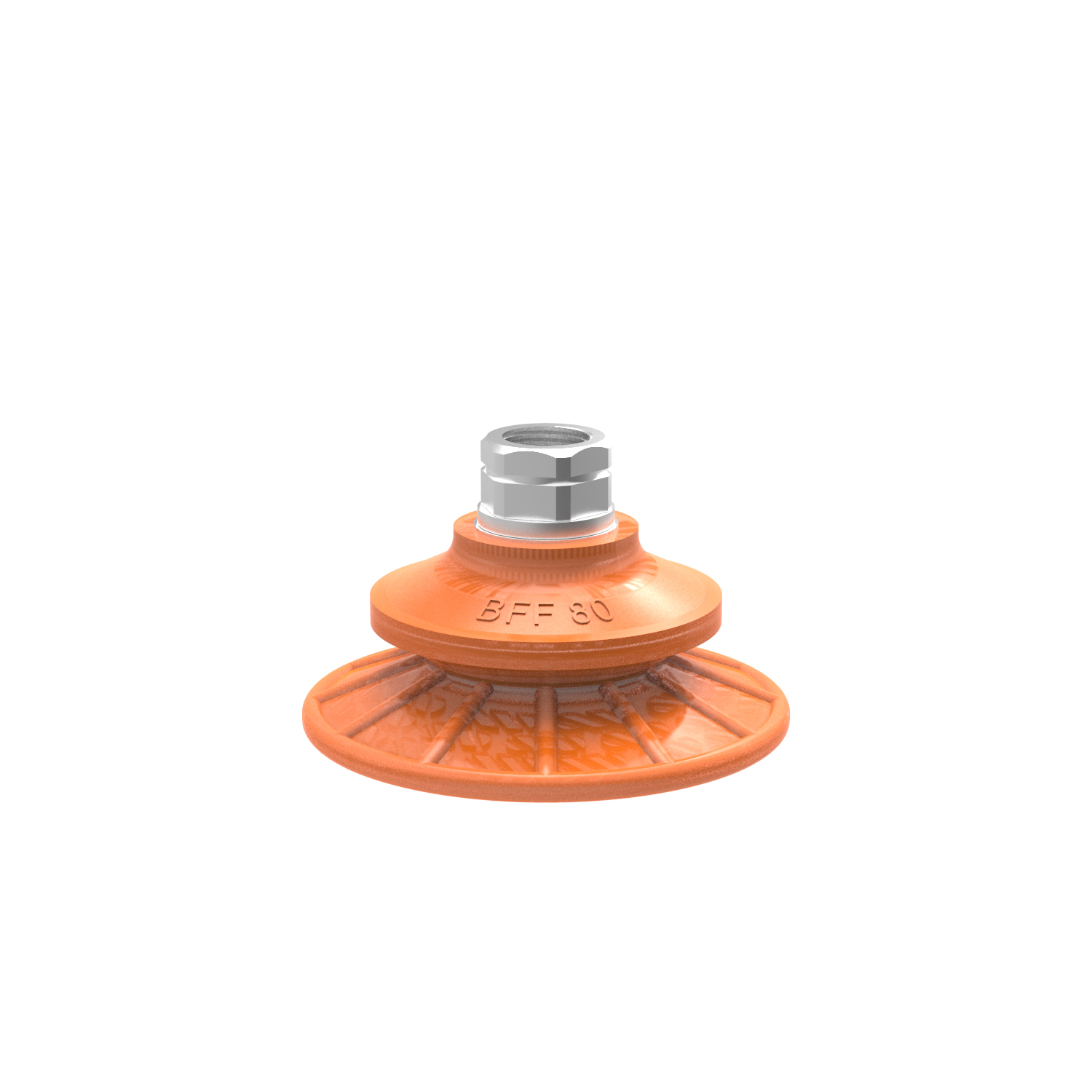

Suction cup BFF80P Polyurethane 55/60. 3/8" NPT female with mesh filter - 1
Item number: 0206882
9 Variants

Suction cup BFF80P Polyurethane 55/60. 3/8" NPT female with mesh filter

The BFF-P design is suitable for oily surfaces, uneven/curved surfaces or if level compensation is needed, for example in de-stacking applications. The flat inner support gives stability during movement in any orientation.Special designed friction cups for oily surfaces, such as sheets in metal forming processes. Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 2–4 times more than corresponding conventional suction cups.
Login or create account to access all our content and features!
DownloadsShare via email

Variants

  • Suction cup BFF80P Polyurethane 55/60. 3/8" NPT female with mesh filter
    0206882
  • Suction cup BFF80P Polyurethane 55/60 G3/8" female with mesh filter
    0207255
  • Suction cup BFF80P Polyurethane 55/60 G3/8" female plastic thread
    0207256
  • Suction cup BFF80P Polyurethane 55/60 G3/8" male, 1/8" NPSF female, with mesh filter
    0207257
  • Suction cup BFF80P Polyurethane 55/60 T-slot with mesh filter
    0207258
  • Suction cup BFF80P Polyurethane 55/60 G1/4" female with mesh filter
    0207259
  • Suction cup BFF80P Polyurethane 55/60 M10x1,5 male with mesh filter
    0207260
  • Suction cup BFF80P Polyurethane 55/60 G3/8" female with mesh filter, 17 mm thread
    0207261
  • Suction cup BFF80P Polyurethane 55/60 G1/4" male with mesh filter
    0209104

Features

  • Special designed friction cups for oily surfaces, such as sheets in metal forming processes.
  • Normal wear on friction cup will not affect the long term shear force performance.
  • Best choice if > 0.1g/m2 press oil is used on the sheet.
  • Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 2–4 times more than corresponding conventional suction cups.
  • The "BFF" design is suitable for uneven/curved surfaces or if level compensation is needed, for example in de-stacking applications.
  • The flat inner support gives stability during movement in any orientation.
  • DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
