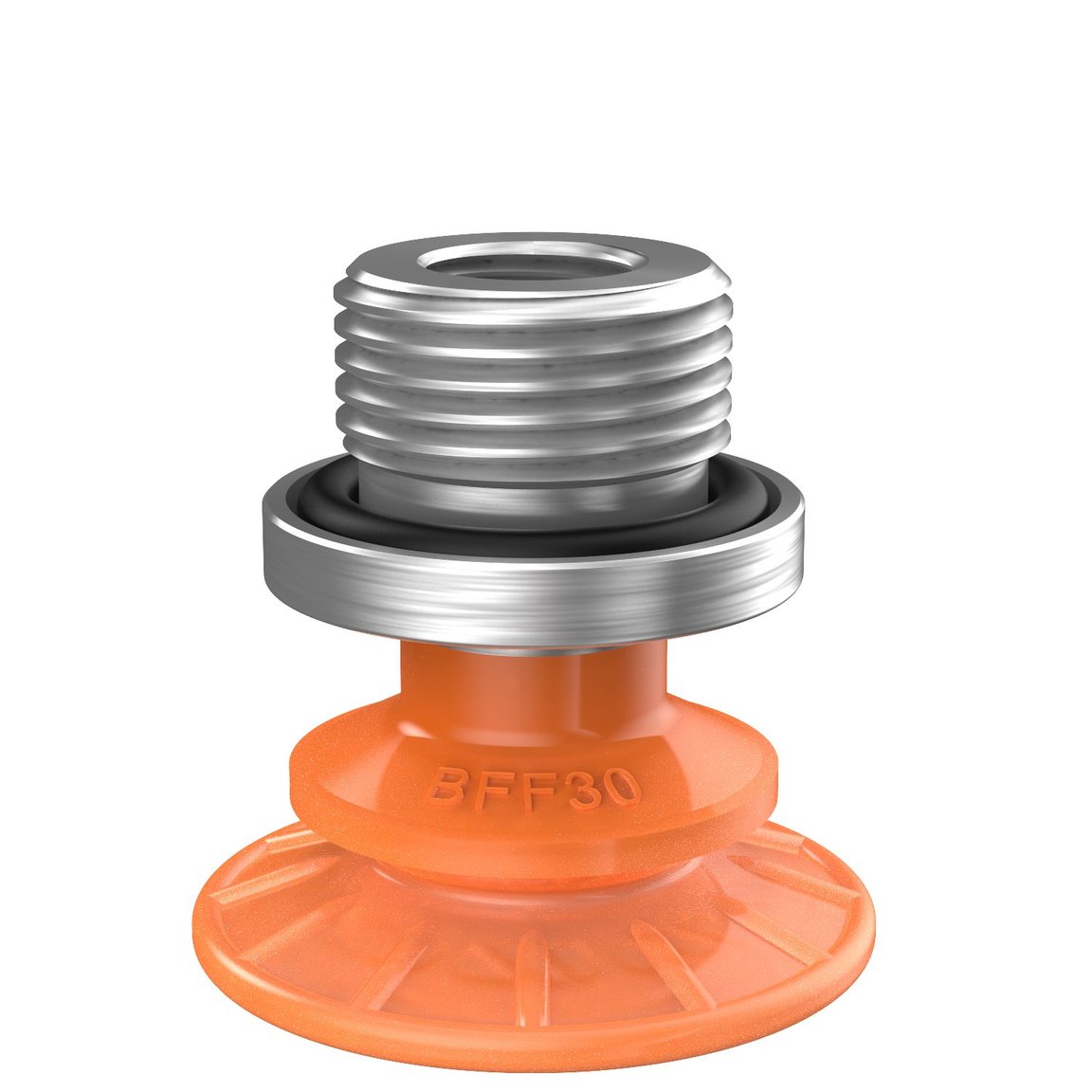

Suction cup BFF30P Polyurethane 55/60, G3/8" male, 1/8" NPSF female - 1
Item number: BFF30P.4Q.G68W
6 Variants

Suction cup BFF30P Polyurethane 55/60, G3/8" male, 1/8" NPSF female

The BFF-P design is suitable for oily surfaces, uneven/curved surfaces or if level compensation is needed, for example in de-stacking applications. The flat inner support gives stability during movement in any orientation.Special designed friction cups for oily surfaces, such as sheets in metal forming processes. Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 2–4 times more than corresponding conventional suction cups.
Login or create account to access all our content and features!
DownloadsShare via email

Variants

  • Suction cup BFF30P Polyurethane 55/60, G3/8" male, 1/8" NPSF female
    BFF30P.4Q.G68W
  • Suction cup BFF30P Polyurethane 55/60, G3/8" female plastic
    BFF30P.4Q.G73WC
  • Suction cup BFF30P Polyurethane 55/60, G3/8" female
    BFF30P.4Q.G71W
  • Suction cup BFF30P Polyurethane 55/60, 3/8" NPT female
    BFF30P.4Q.N50W
  • Suction cup BFF30P Polyurethane 55/60, G1/4" female
    BFF30P.4Q.G75W
  • Suction cup BFF30P Polyurethane 55/60, T-slot
    BFF30P.4Q.T1W

Features

  • Special designed friction cups for oily surfaces, such as sheets in metal forming processes.
  • Normal wear on friction cup will not affect the long term shear force performance.
  • Best choice if > 0.1g/m2 press oil is used on the sheet.
  • Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 2–4 times more than corresponding conventional suction cups.
  • The "BFF" design is suitable for uneven/curved surfaces or if level compensation is needed, for example in de-stacking applications.
  • The flat inner support gives stability during movement in any orientation.
  • DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
