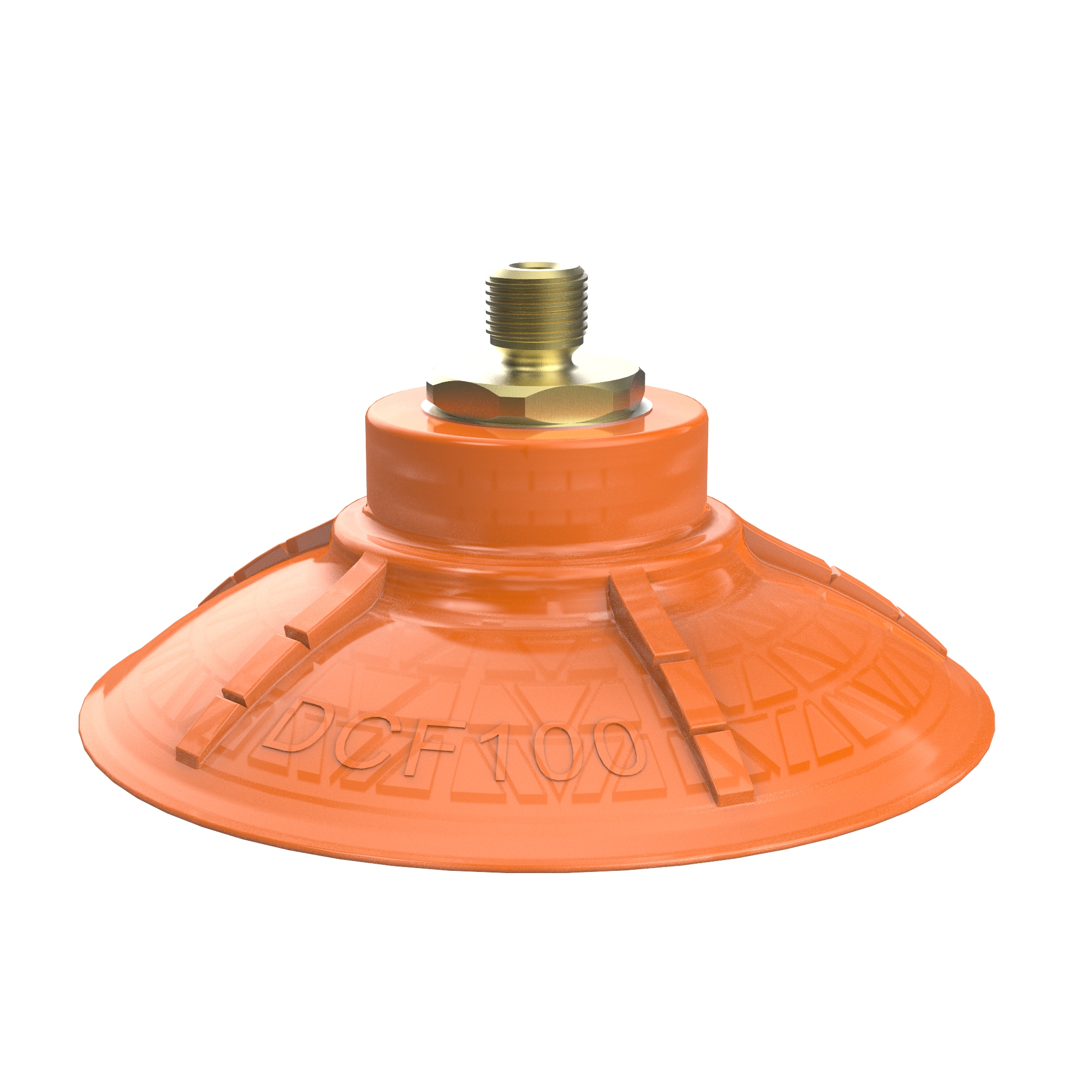

Suction cup DCF100P Polyurethane 60, M10x1,5 male with mesh filter - 1
Artikelnummer: 0210626
9 Varianten

Suction cup DCF100P Polyurethane 60, M10x1,5 male with mesh filter

Melden Sie sich an oder erstellen Sie ein Konto, um auf alle unsere Inhalte und Funktionen zugreifen zu können!

Varianten auswählen

  • Suction cup DCF100P Polyurethane 60, G3/8" female plastic
    0210172
  • Suction cup DCF100P Polyurethane 60, G3/8" female with mesh filter
    0210620
  • Suction cup DCF100P Polyurethane 60, G3/8" female 17mm with mesh filter
    0210621
  • Suction cup DCF100P Polyurethane 60, G3/8" male
    0210622
  • Suction cup DCF100P Polyurethane 60, 3/8" NPT female with mesh filter
    0210623
  • Suction cup DCF100P Polyurethane 60, G1/4" female with mesh filter
    0210624
  • Suction cup DCF100P Polyurethane 60, G1/4" male with mesh filter
    0210625
  • Suction cup DCF100P Polyurethane 60, M10x1,5 male with mesh filter
    0210626
  • Suction cup DCF100P Polyurethane 60, T-slot with mesh filter
    0210627

Merkmale

  • Special designed friction cups for domed or flat oily surfaces, such as sheets in metal forming processes.
  • Long lasting material, normal wear on friction cup will not affect the long term shear force performance.
  • Best choice if > 0.1g/m2 press oil is used on the sheet but also a great choice for dry metal sheets.
  • Refined internal friction pattern provides additional grip performance, the suction cups can withstand high shear forces, typically 3–5 times more than corresponding conventional suction cups.
  • Thin design that easily will follow convex or concave surfaces. The thin and pliable design in combination with a special inner friction pattern will maximize grip performance.
  • DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled and has a fantastic elastic memory, even after hundreds of thousands of cycles.
