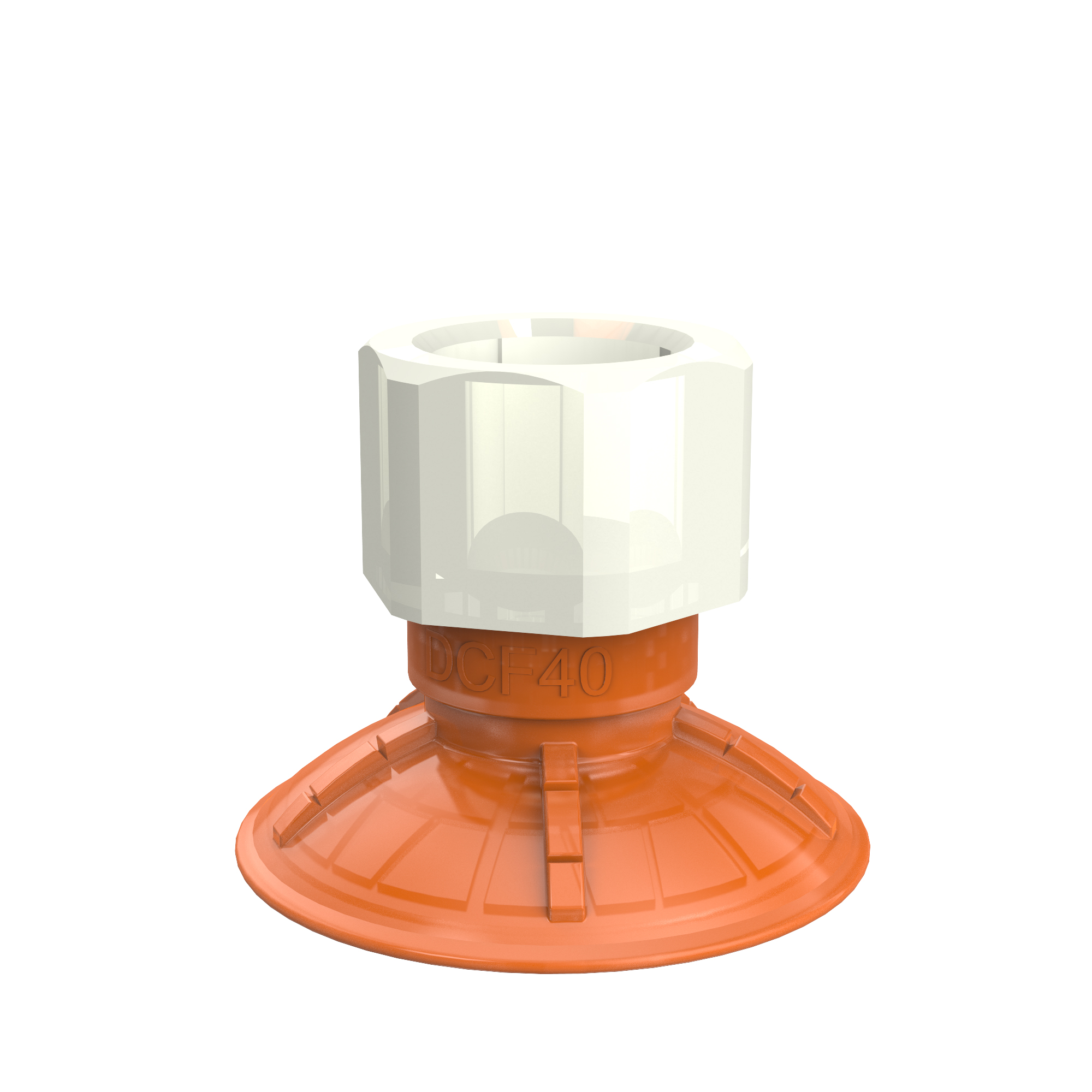

Suction cup DCF40P Polyurethane 60, G3/8" female plastic

Login or create account to access all our content and features!

Variants

  • 0210330
  • 0210596
  • 0210597
  • 0210598
  • 0210599
  • 0210600
  • 0210601
  • 0210602
  • 0210603

Features

  • Special designed friction cups for domed or flat oily surfaces, such as sheets in metal forming processes.
  • Long lasting material, normal wear on friction cup will not affect the long term shear force performance.
  • Best choice if > 0.1g/m2 press oil is used on the sheet but also a great choice for dry metal sheets.
  • Refined internal friction pattern provides additional grip performance, the suction cups can withstand high shear forces, typically 3–5 times more than corresponding conventional suction cups.
  • Thin design that easily will follow convex or concave surfaces. The thin and pliable design in combination with a special inner friction pattern will maximize grip performance.
  • DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled and has a fantastic elastic memory, even after hundreds of thousands of cycles.

Automobilbau

  • Karosserieseiten und Rahmen
  • Abstapeln
  • Ergonomische Werkzeuge für die Türmontage/-demontage
  • Montage und Installation von Treibstofftanks
  • Montage und Installation von Glasteilen

General

Material
Polyurethan (PU)
Characteristics
Öliges Blech
Saugnapfmodell
DCF
Volumen
3.7049 cm³
Gewicht, min.
11.6 g

Fitting

Material
PA
Anschlußgewinde
3/8"
Befestigungsart
Innengewinde
Befestigungstyp
G-Gewinde

Dimension

Höhe
32.2 mm
Höhe 2 (Actuated)
26.1 mm
Außendurchmesser, betätigt
42 mm
Außendurchmesser, min.
40 mm

Performance - lifting forces

DCF40 Oily metal sheet

60 -kPa
40 N
19 N
90 -kPa
55 N
28 N

Performance - lifting forces

DCF40 Dry metal sheet

60 -kPa
43 N
27 N
90 -kPa
56 N
44 N

Material

Name
Polyurethane (PU60)
Farbe
Orange
Temperature
50 - 122 °F
Härtegrad
60 °Shore A

Material resistance

Alkohol
n/a
Konzentrierte Säuren
+
Etanol
+
Hydrolyse
+
Metanol
-
Öl
+++
Oxidation
-
Benzin
+
Verschleißfestigkeit
+++
+++
