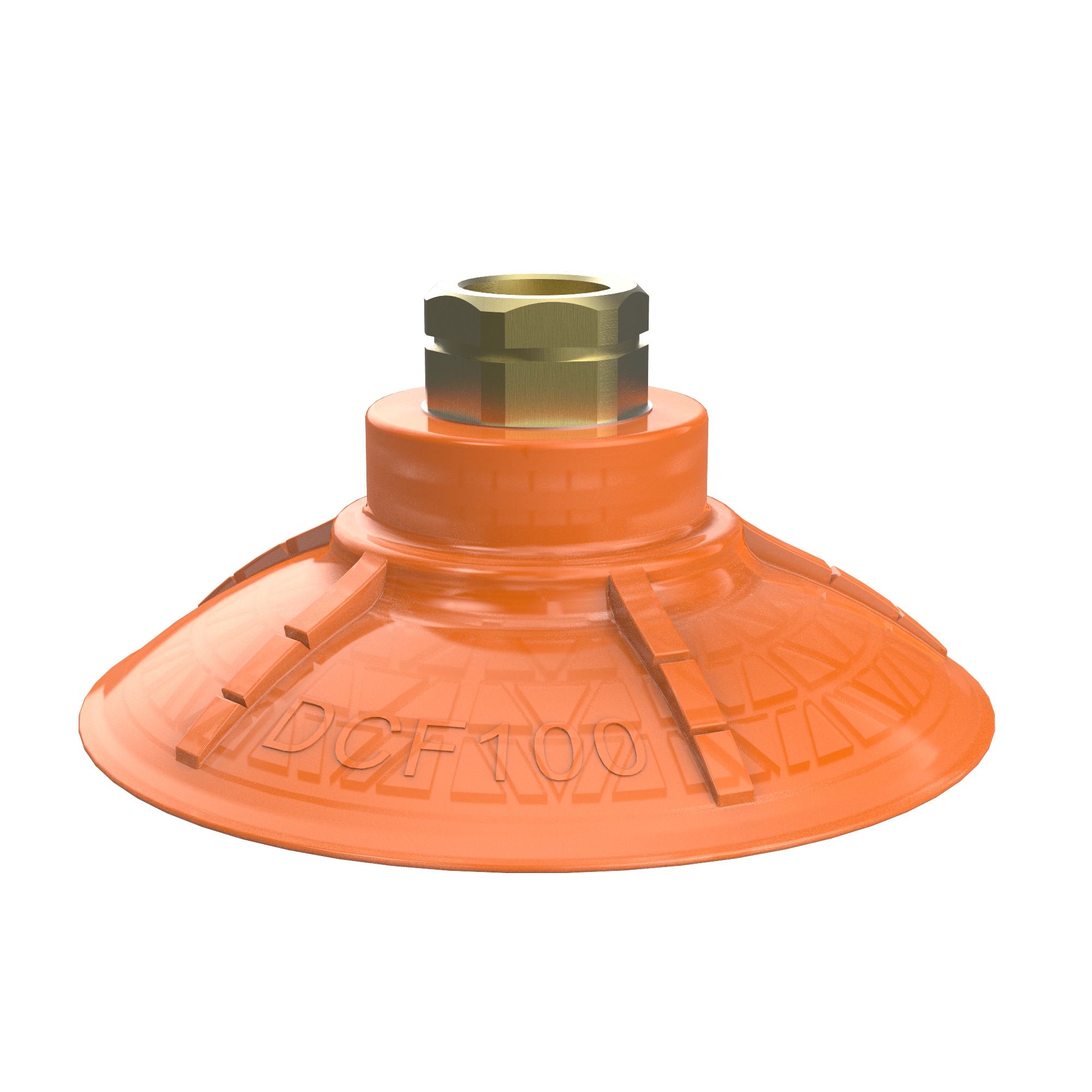

Suction cup DCF100P Polyurethane 60, 3/8" NPT female with mesh filter - 1
Artikelnummer: 0210623
18 Varianten

Suction cup DCF100P Polyurethane 60, 3/8" NPT female with mesh filter

Piab’s DCF suction cups are optimized for oily metal sheets, featuring a deep concave design and flexible lip for secure grip and reliable sealing—even on curved or uneven surfaces. The DCF cups handle high shear forces and are ideal for fast de-stacking and handling in press lines. Made from DURAFLEX®, they offer excellent wear resistance and elastic memory, ensuring long-lasting, consistent performance.
Melden Sie sich an oder erstellen Sie ein Konto, um auf alle unsere Inhalte und Funktionen zugreifen zu können!
DownloadsPer E-Mail teilen

Größe

100 mm
110 mm
30 mm
40 mm
52 mm
65 mm
80 mm
90 mm

Beschlag

3/8" NPT InnengewindeFiltersieb, Brass
3/8" NPT InnengewindeFiltersieb, Al
G 1/4" AußengewindeFiltersieb, Al
G 1/4" InnengewindeFiltersieb, Al
G 3/8" AußengewindeAl
G 3/8" Außengewinde, 1/8" NPSF InnengewindeFiltersieb, Al
G 3/8" InnengewindePA
G 3/8" InnengewindeFiltersieb, Al
M10x1.5 AußengewindeFiltersieb, SS
T-slot Filtersieb, Al
Nicht mit der ausgewählten Anpassung oder Größe kompatibel. Durch die Auswahl dieser Option wird die Größe/Anpassung angepasst.

Merkmale

  • Special designed friction cups for domed or flat oily surfaces, such as sheets in metal forming processes.
  • Long lasting material, normal wear on friction cup will not affect the long term shear force performance.
  • Best choice if > 0.1g/m2 press oil is used on the sheet but also a great choice for dry metal sheets.
  • Refined internal friction pattern provides additional grip performance, the suction cups can withstand high shear forces, typically 3–5 times more than corresponding conventional suction cups.
  • Thin design that easily will follow convex or concave surfaces. The thin and pliable design in combination with a special inner friction pattern will maximize grip performance.
  • DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled and has a fantastic elastic memory, even after hundreds of thousands of cycles.
