Item number: 0101357
10 Variants

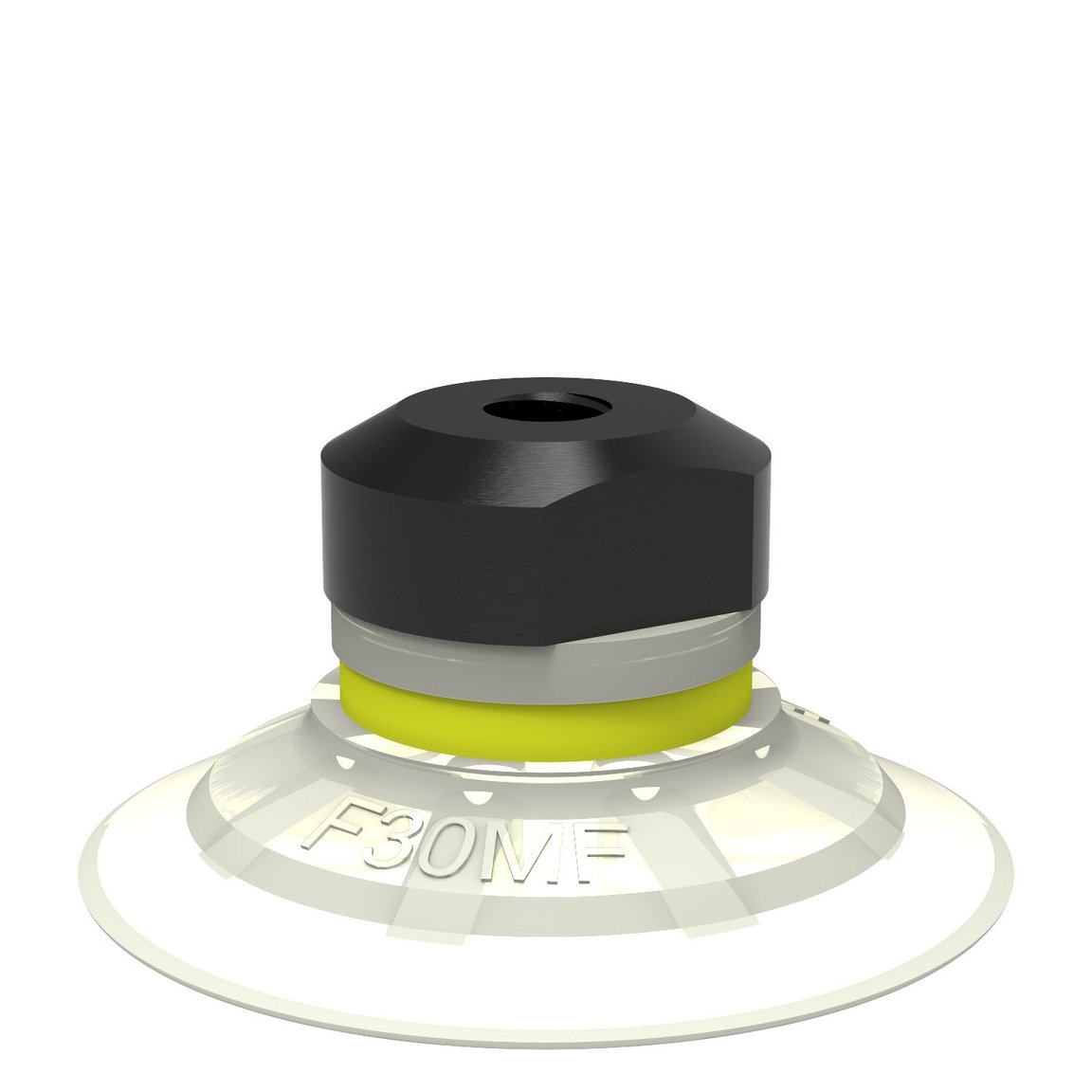

Suction cup F30MF Thermoelastic polyurethane, M5 female
Suction cup of TPU, a mark-free material that leaves no trace on the object being handled. Suitable for flat surfaces. The cleats stop deformation by preventing...
Read more
Login or create account to access all our content and features!
Variants
0101141
0101357
0101358
0101359
0101360
0101361
0101362
0101363
0101364
0101367
Features
- Suction cup of TPU, a mark free material that leaves no trace on the object being handled.
- Suitable for flat surfaces.
- Good stability and little inherent movement.
- Recommended when the lifting force is parallel to the surface of the object.
Glass
General
Material
TPE
Characteristics
Mark free
Suction cup model
F-MF
Volume
2 cm³
Weight, min.
2.2 g
Fitting
Fitting option
None
Fitting size
None
Fitting style
Female
Fitting type
M-thread
Dimension
Height
16 mm
Outer diameter, actuated
32.6 mm
Outer diameter, min.
32 mm
Performance - lifting forces
F30MF
20 -kPa
11 N
13.6 N
60 -kPa
34.5 N
28 N
90 -kPa
48 N
42 N
Material
Name
Thermoplastic Polyurethane (TPE-U)
Colour
WhiteTransparent
Temperature
-20 - 80 °C
Hardness
81 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
