Item number: 0101314
2 Variants

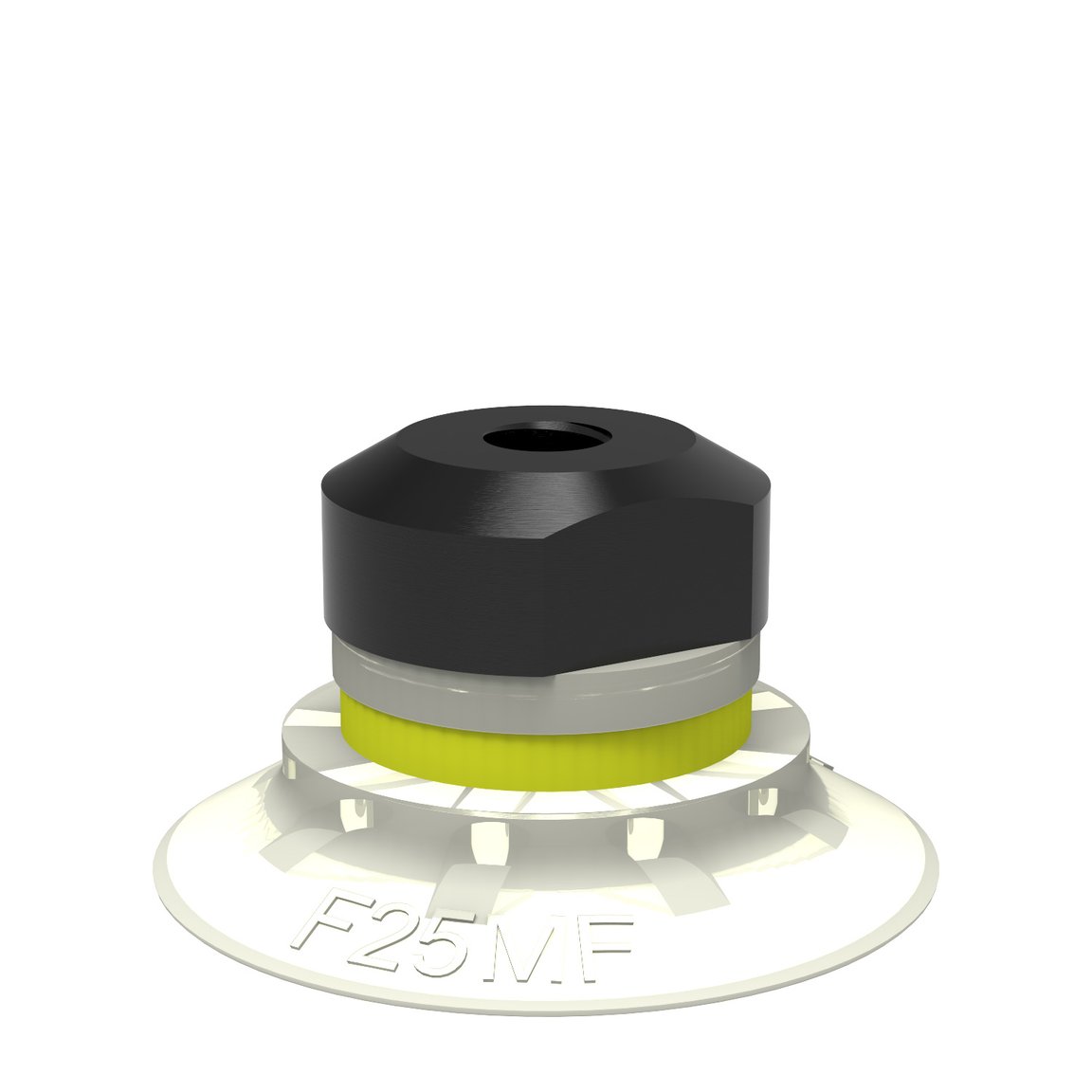

Suction cup F25MF Thermoelastic polyurethane, M5 female
Login or create account to access all our content and features!
Variants
0101314
0101140
Features
- Suction cup of TPU, a mark free material that leaves no trace on the object being handled.
- Suitable for flat surfaces.
- Good stability and little inherent movement.
- Recommended when the lifting force is parallel to the surface of the object.
Glass
General
Material
TPE
Characteristics
Mark free
Suction cup model
F-MF
Volume
1.1 cm³
Weight, min.
1.7 g
Fitting
Fitting option
None
Fitting size
M5
Fitting style
Male
Fitting type
M-thread
Dimension
Height
15 mm
Outer diameter, actuated
27.9 mm
Outer diameter, min.
27 mm
Performance - lifting forces
F25MF
20 -kPa
6.3 N
9 N
60 -kPa
24.5 N
24.5 N
90 -kPa
35.5 N
36.3 N
Material
Name
Thermoplastic Polyurethane (TPE-U)
Colour
WhiteTransparent
Temperature
-20 - 80 °C
Hardness
81 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
