Item number: 0101142
12 Variants

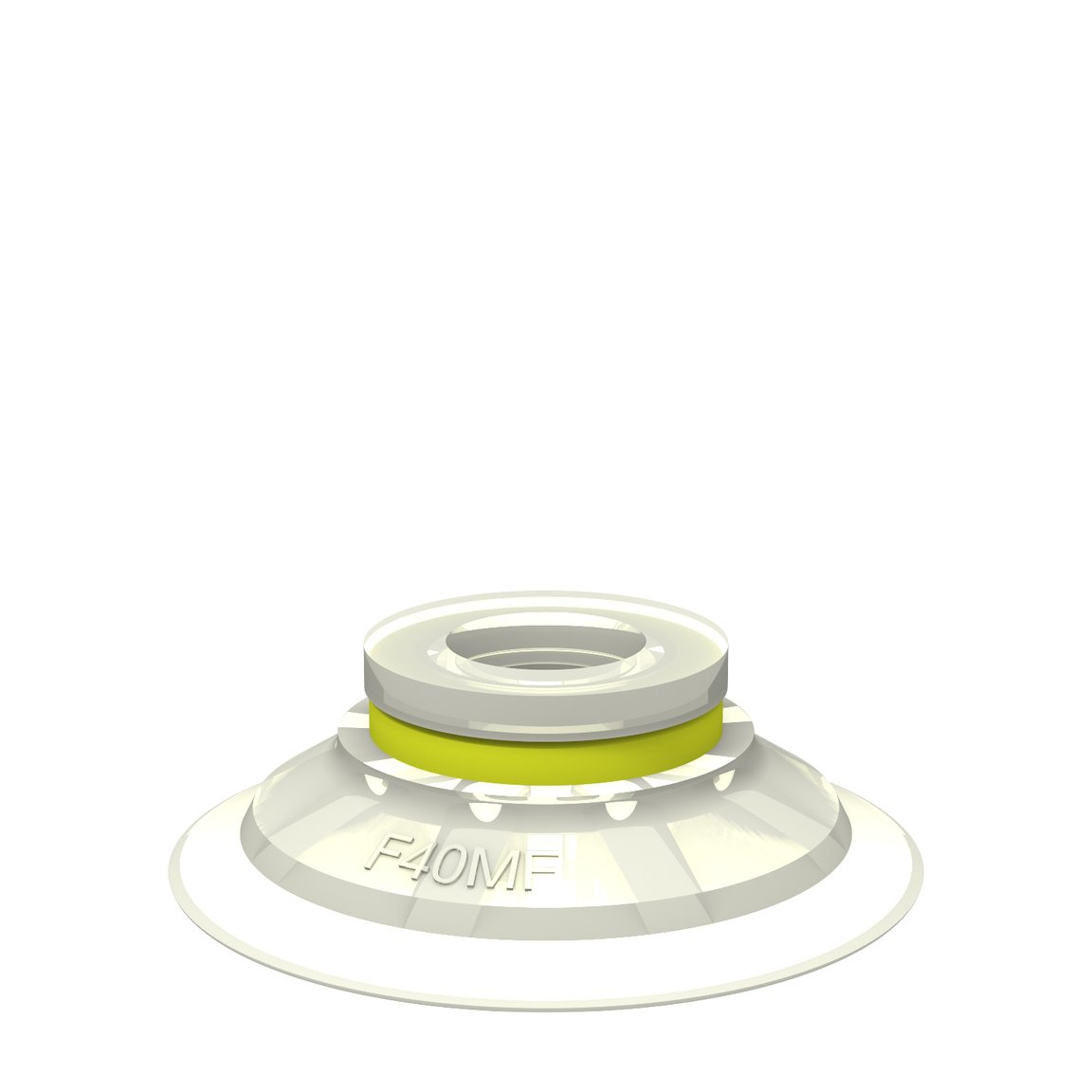

Suction cup F40MF Thermoelastic polyurethane
Suction cup of TPU, a mark-free material that leaves no trace on the object being handled. Suitable for flat surfaces. The cleats stop deformation by preventing...
Read more
Login or create account to access all our content and features!
Variants
0101142
0101585
0101586
0101587
0101588
0101589
0101590
0101591
0101592
0101593
0101594
0101595
Features
- Suction cup of TPU, a mark free material that leaves no trace on the object being handled.
- Suitable for flat surfaces.
- Good stability and little inherent movement.
- Recommended when the lifting force is parallel to the surface of the object.
Glass
General
Material
TPE
Characteristics
Mark free
Suction cup model
F-MF
Volume
4.8 cm³
Weight, min.
6 g
Fitting
Fitting option
None
Fitting size
None
Fitting style
None
Fitting type
None
Dimension
Height
13 mm
Outer diameter, actuated
43.7 mm
Outer diameter, min.
42 mm
Performance - lifting forces
F40MF
20 -kPa
18 N
16 N
60 -kPa
57 N
49 N
90 -kPa
83 N
57 N
Material
Name
Thermoplastic Polyurethane (TPE-U)
Colour
WhiteTransparent
Temperature
-20 - 80 °C
Hardness
81 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
Dimensional drawings
