Item number: 0101290
10 Variants

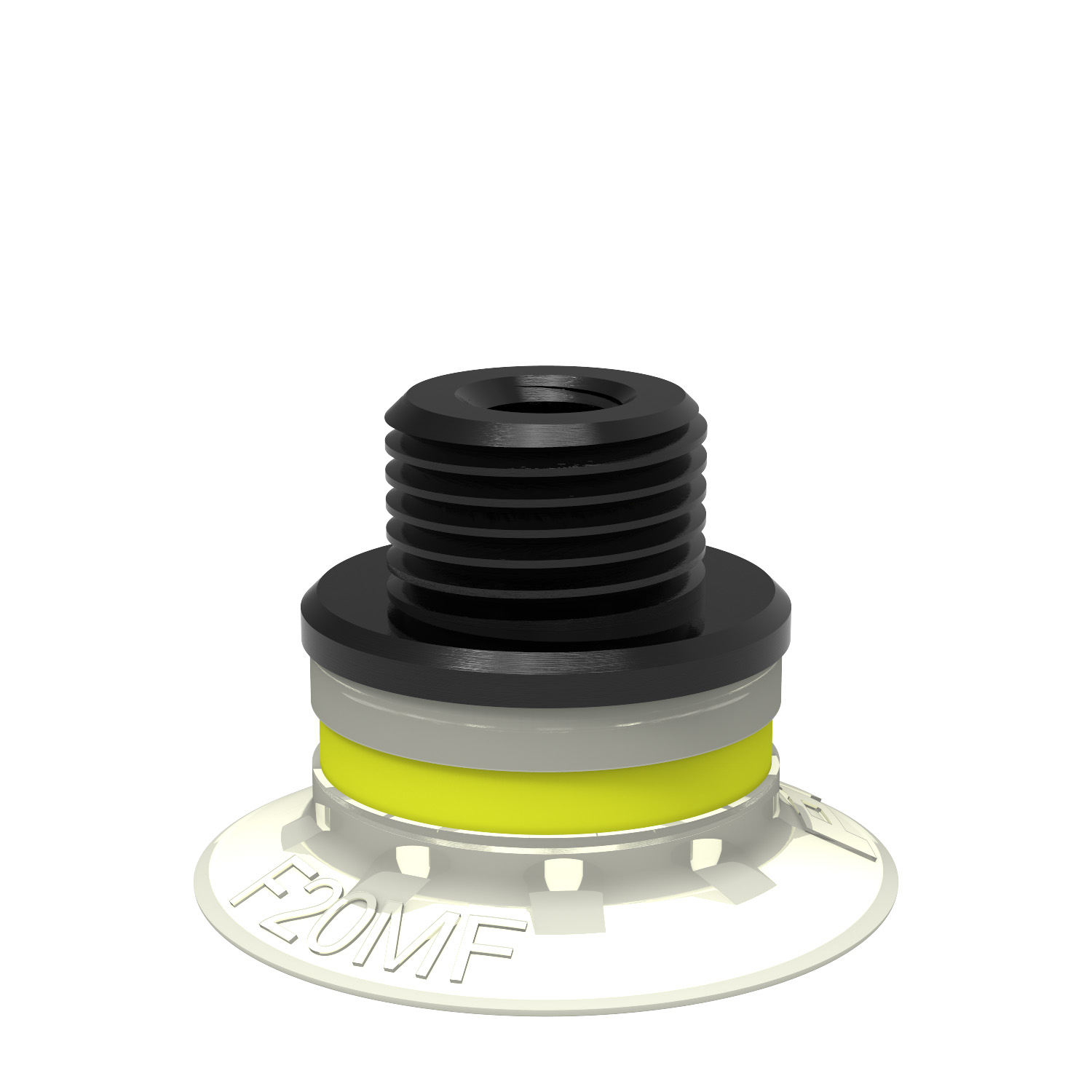

Suction cup F20MF Thermoelastic polyurethane, G1/8" male / M5 fem., with dual flow control valve
Suction cup of TPU, a mark-free material that leaves no trace on the object being handled. Suitable for flat surfaces. The cleats stop deformation by preventing...
Read more
Login or create account to access all our content and features!
Variants
0101139
0101281
0101282
0101286
0101288
0101290
0101284
0101283
0101285
0101291
Features
- Suction cup of TPU, a mark free material that leaves no trace on the object being handled.
- Suitable for flat surfaces.
- Good stability and little inherent movement.
- Recommended when the lifting force is parallel to the surface of the object.
Glass
General
Material
TPE
Characteristics
Mark free
Leakage flow, max.
0.06 Nl/s
Suction cup model
F-MF
Valve restriction
0.7 mm
Volume
1 cm³
Weight, min.
1.2 g
Fitting
Fitting option
Dual flow control valve
Fitting size
1/8" , M5
Fitting style
Female/Male
Fitting type
G-thread , M-thread
Dimension
Height
15.5 mm
Outer diameter, actuated
23.2 mm
Outer diameter, min.
22 mm
Performance
Restricted vacuum flow
0.7 Nl/s
Performance - lifting forces
F20MF
20 -kPa
3.6 N
8 N
60 -kPa
14.5 N
14.5 N
90 -kPa
22 N
21 N
Material
Name
Thermoplastic Polyurethane (TPE-U)
Colour
WhiteTransparent
Temperature
-20 - 80 °C
Hardness
81 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
Dimensional drawings
