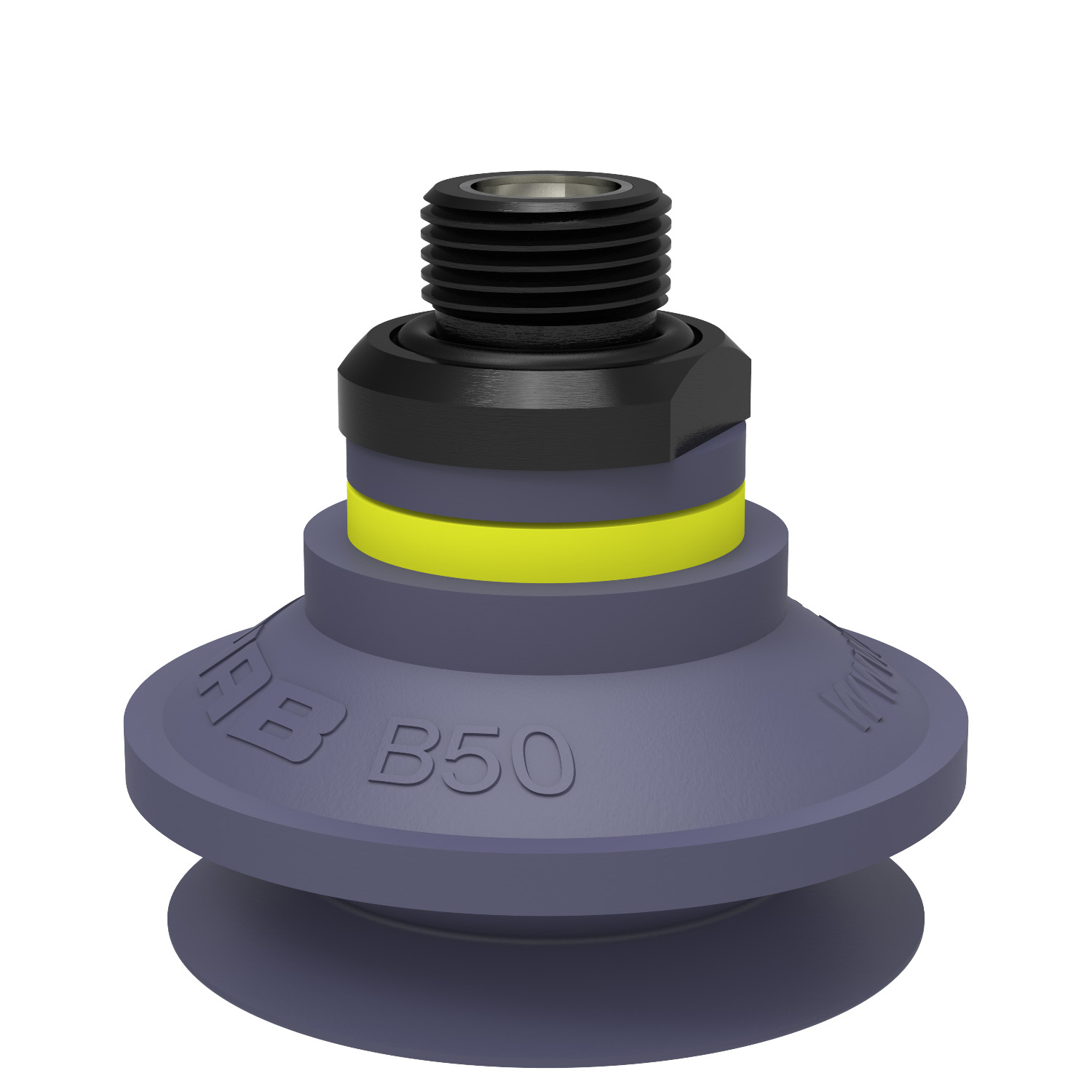

Suction cup B50 HNBR, G3/8" male, with mesh filter - 1
Item number: 0108173
75 Variants

Suction cup B50 HNBR, G3/8" male, with mesh filter

Piab’s HNBR bellow suction cups are engineered for high-performance handling in challenging industrial settings. Made from HNBR, these cups provide outstanding resistance to heat, oil, and chemicals. The flexible bellow design allows for excellent adaptability to uneven surfaces and compensates for height differences, ensuring a secure and reliable grip. Ideal for automotive and heavy-duty applications, HNBR bellow suction cups deliver durable, consistent performance in demanding environments.
Login or create account to access all our content and features!
DownloadsShare via email

Size

5 mm
8 mm
10 mm
15 mm
20 mm
30 mm
40 mm
50 mm
75 mm
110 mm

Fitting

Without fitting None
Without fitting Washer, None
M5 MaleBrass
5xM5 FemaleAl, Brass, PA
M5 FemaleAl
M5 FemaleDual flow control valve, Al
G 1/8" Male, M5 FemaleAl
G 1/8" Male, M5 FemaleFilter mesh, Al
G 1/8" Male, M5 FemaleDual flow control valve, Al
G 1/8" MaleFilter mesh, Al
G 1/8" MaleDual flow control valve, Filter mesh, Al
G 1/4" MaleDual flow control valve, Al
G 1/4" MaleFilter mesh, Al
G 3/8" MaleDual flow control valve, Al
G 3/8" MaleFilter mesh, Al
G 3/8" FemaleFilter mesh, Al
G 1/2" FemaleFilter mesh, Al
G 1/2" FemaleFilter mesh, Clamp ring, Al
1/8" NPT MaleFilter mesh, Al
1/8" NPT MaleDual flow control valve, Filter mesh, Al
1/4" NPT MaleDual flow control valve, Al
1/4" NPT MaleFilter mesh, Al
3/8" NPT MaleDual flow control valve, Al
3/8" NPT MaleFilter mesh, Al
1/4" NPT FemaleAl
1/8" NPSF FemaleDual flow control valve, Al
1/8" NPSF FemaleAl
1/8" NPSF FemaleFilter mesh, Al
1/8" NPSF FemaleFilter mesh, Clamp ring, Al
5x1/8" NPSF FemaleDual flow control valve, Al
5x1/8" NPSF FemaleAl
3/8" NPSF FemaleFilter mesh, Clamp ring, Al
Not compatible with the selected fitting or size. Choosing this option will adjust the size/fitting.

Features

  • Manufactured from high-performance, mark free HNBR rubber
  • Outstanding resistance to heat, oil, and chemicals
  • Flexible bellow design for adapting to surface variations
  • Secure and reliable grip in demanding applications
  • Durable construction for extended service life
  • Perfect for automotive and heavy-duty industrial use
