Item number: 0200894
8 Variants

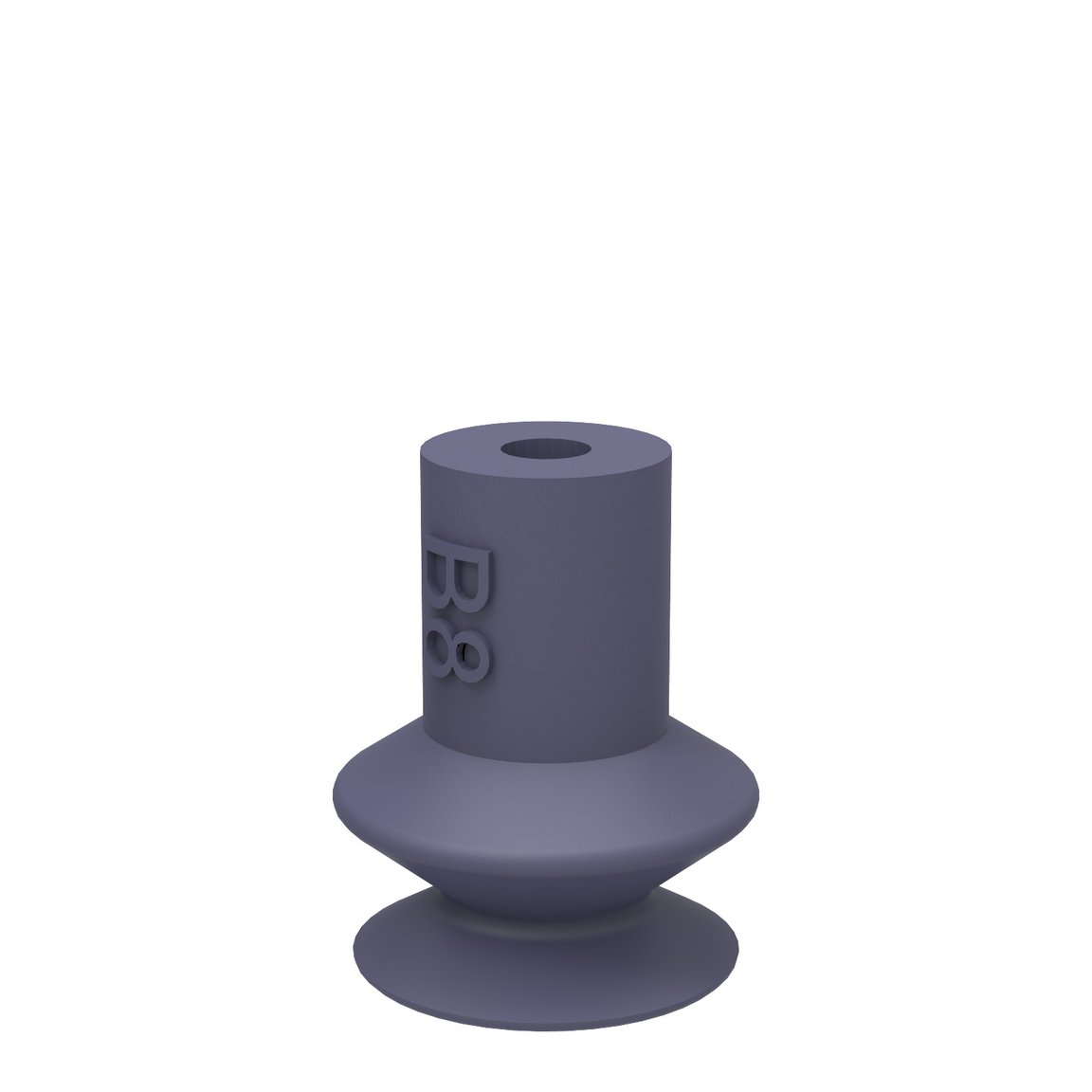

Suction cup B8 HNBR
Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting moveme...
Read more
Login or create account to access all our content and features!
Variants
0200894
3150287

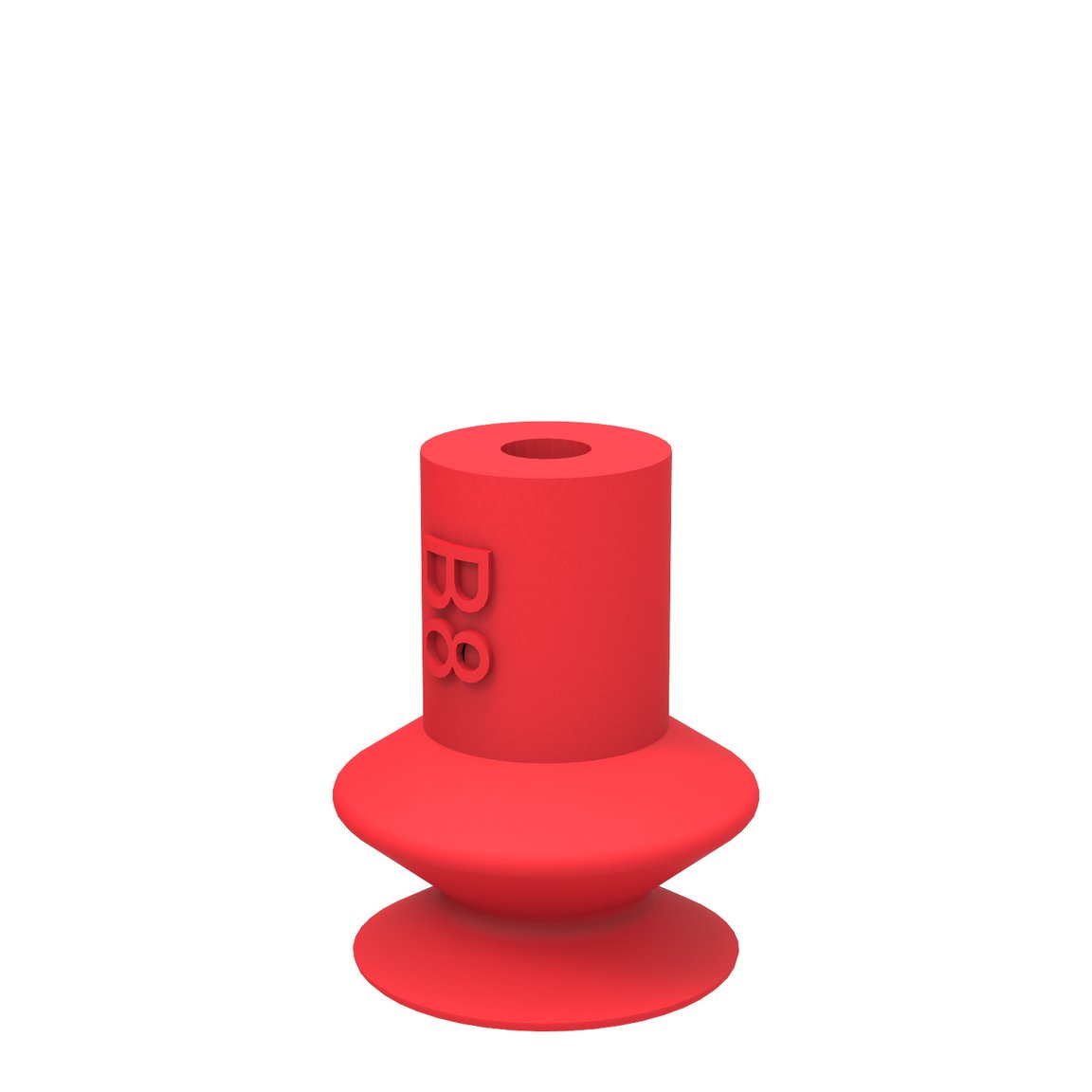

3150287S

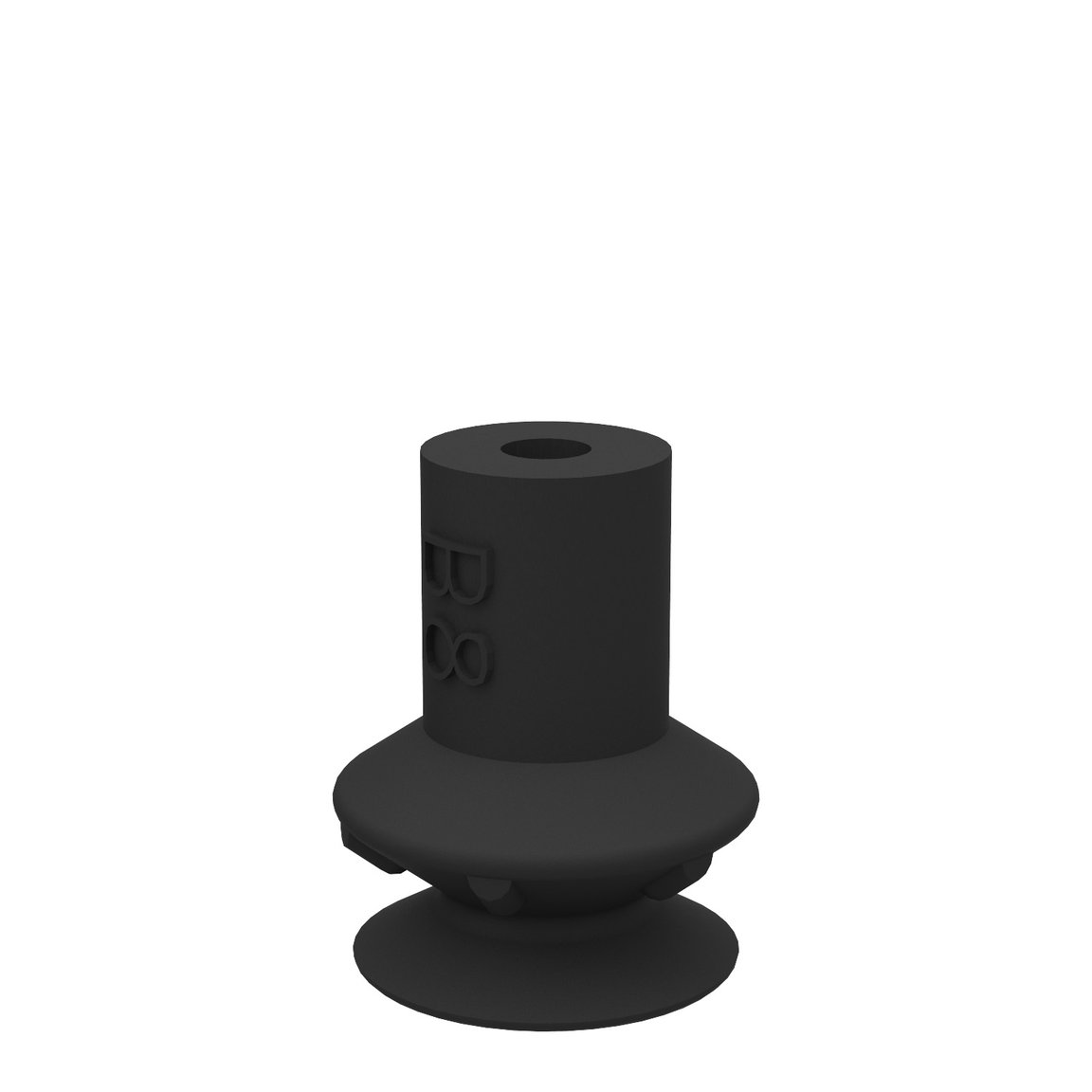

3150287SC

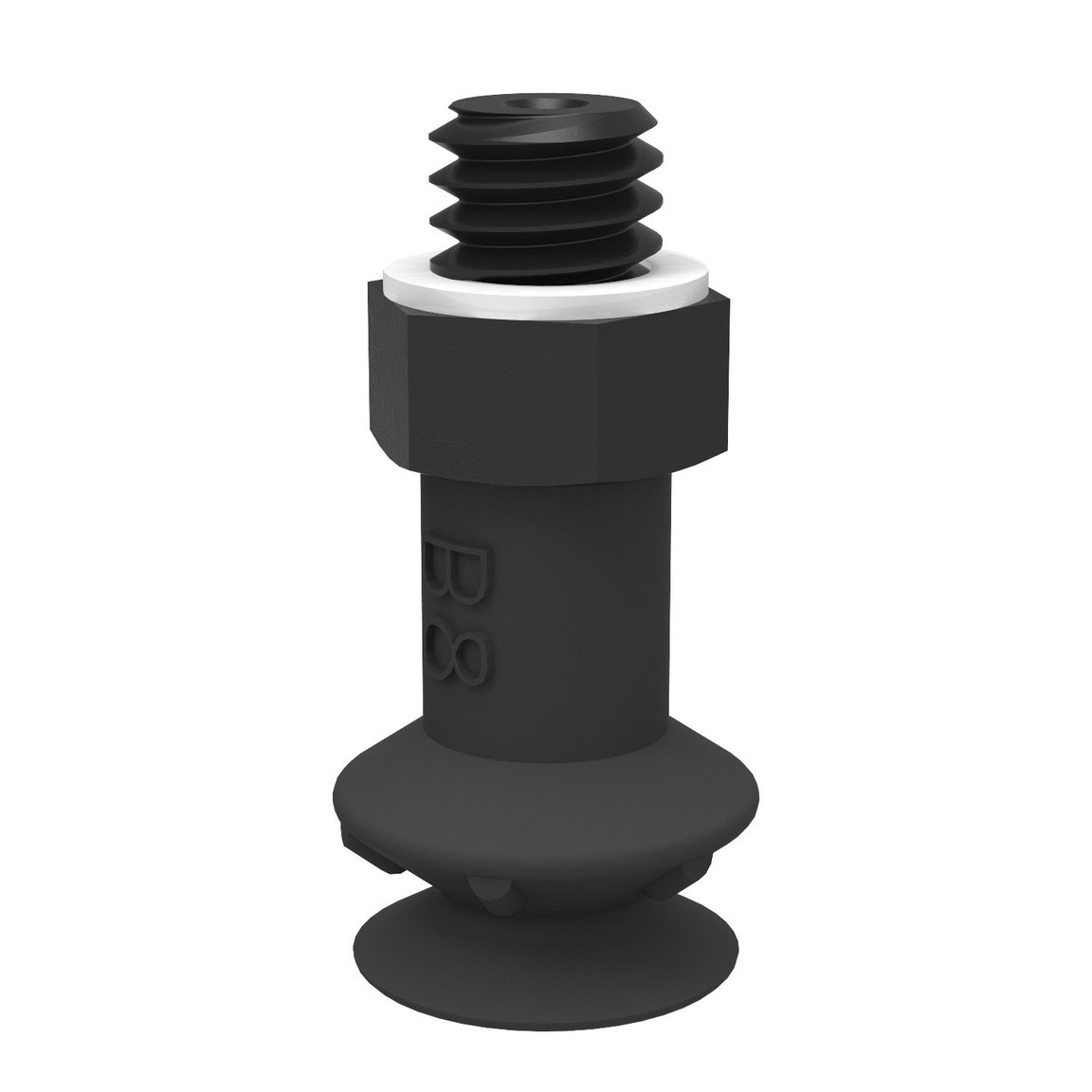

3250083

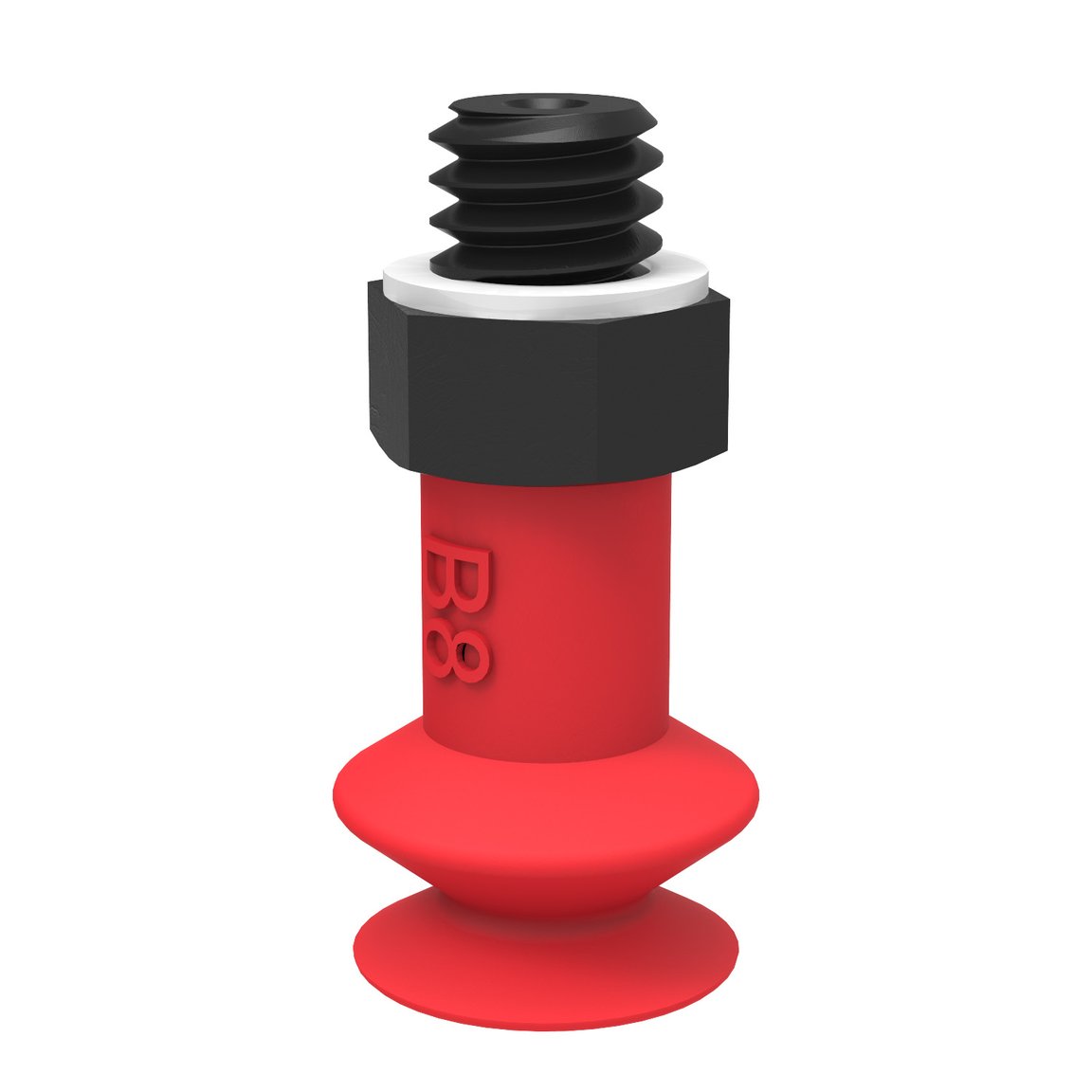

3250083S
3250083SC
9912094
Features
- Lifting movement to separate small and thin objects.
- Only lightweight objects should be handled when the lifting force is parallel to the surface.
- Suitable for level adjustment.
- Suction cups of conductive silicone and semi-conductive EPDM are suitable for objects with sensitivity to static electricity.
Electronics
Logistics
Packaging
General
Material
HNBR
Characteristics
Dry sheet metal , Plastic injection molded parts , Electronic / semiconductor , Glass handling , High/low temp cup (plastic) , Mark free
Suction cup model
B
Volume
0.15 cm³
Weight, min.
0.3 g
Fitting
Fitting option
None
Fitting size
None
Fitting style
None
Fitting type
None
Dimension
Height
11.9 mm
Outer diameter, actuated
9.6 mm
Outer diameter, min.
8.8 mm
Performance - lifting forces
B8
20 -kPa
0.8 N
0 N
60 -kPa
1.6 N
0 N
90 -kPa
2.5 N
0 N
Material
Name
HNBR 50° Shore A
Colour
Blue
Temperature
-30 - 140 °C
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
