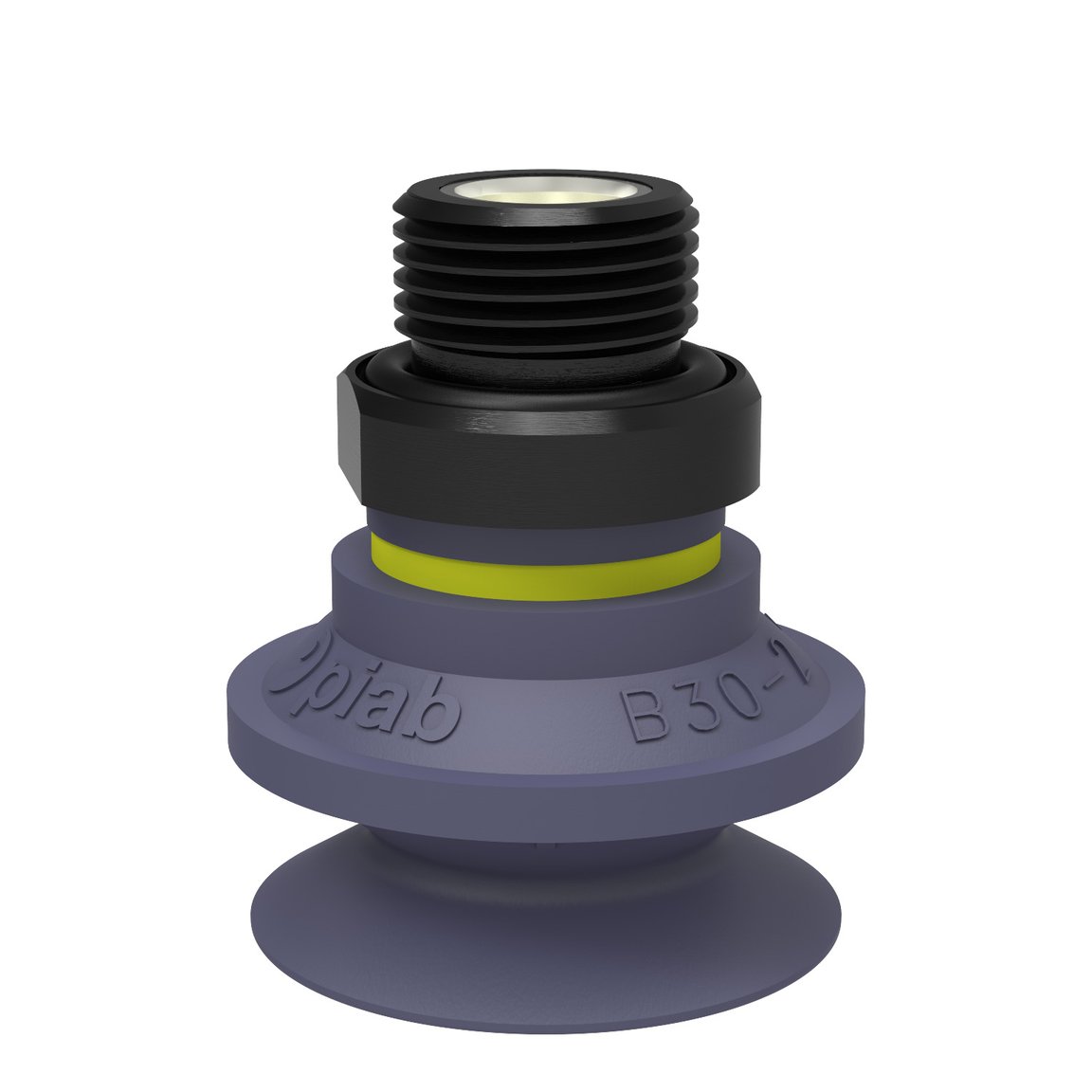

Suction cup B30-2 HNBR, G3/8" male, with mesh filter
Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting moveme...
Read more
Login or create account to access all our content and features!
Variants
0101103
0101104
0101417
0101418
0101419
0101420
0101421
0101422
0101423
0101424
0101425
0101426
0101427
0101430
0101431
0101432
0101433
0101434
0101435
0101436
0101437
0101438
0101440
0101442
0108077
0108078
0108168
0109845
0110343
9906494
9906882
9907862
9908688
9908767
9908768
9908769
9908770
9908772
9908773
0108167
Features
- Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
- The lifting movement can be used to separate small and thin objects.
- Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement.
Logistics
Packaging
General
Material
HNBR
Characteristics
Dry sheet metal , Glass handling , High/low temp cup (plastic) , Plastic injection molded parts , Mark free
Suction cup model
B
Volume
10 cm³
Weight, min.
7 g
Fitting
Fitting option
Filter mesh
Fitting size
3/8"
Fitting style
Male
Fitting type
G-thread
Dimension
Height
42.2 mm
Outer diameter, actuated
38.4 mm
Outer diameter, min.
34.6 mm
Performance - lifting forces
B30-2
20 -kPa
12 N
9.4 N
60 -kPa
22 N
16.6 N
90 -kPa
27 N
22.2 N
Material
Name
HNBR 75° Shore A
Colour
BlueGrey
Temperature
-30 - 140 °C
Hardness
75 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
Dimensional drawings
