Item number: 9908789
40 Variants

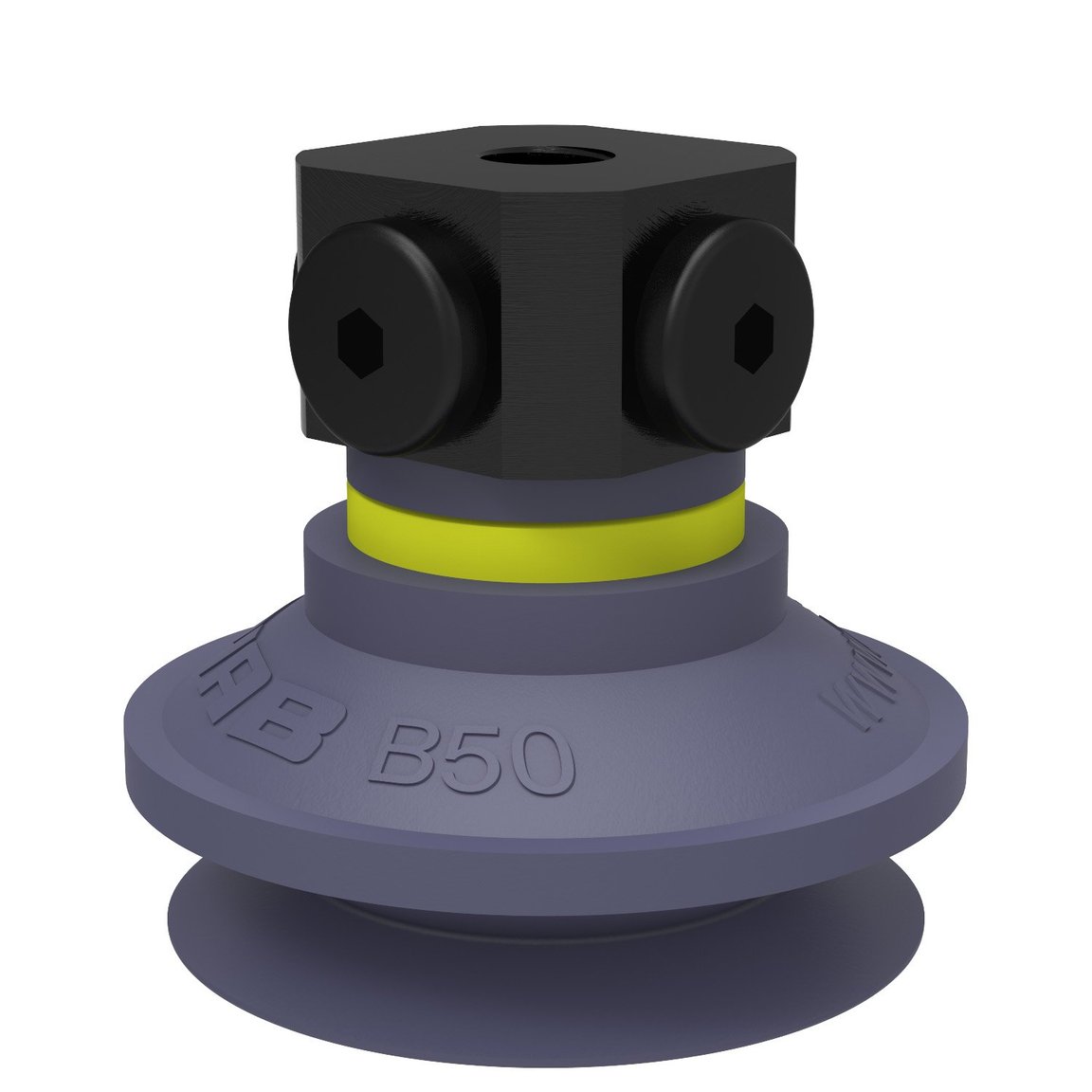

Suction cup B50 HNBR, 5x1/8" NPSF female
Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting moveme...
Read more
Login or create account to access all our content and features!
Variants
0101107
0101108
0101630
0101631
0101632
0101633
0101634
0101635
0101636
0101637
0101638
0101639
0101640
0101643
0101644
0101645
0101646
0101647
0101648
0101649
0101650
0101651
0101652
0101653
0108165
0108171
0108172
0108173
0111063
3150028SA
9908740
9906290
9908627
9908789
9908790
9908791
9908796
9908792
9908793
9908794
Features
- Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
- The lifting movement can be used to separate small and thin objects.
- Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement.
Logistics
Packaging
General
Material
HNBR
Characteristics
Dry sheet metal , Glass handling , High/low temp cup (plastic) , Plastic injection molded parts , Mark free
Suction cup model
B
Volume
32 cm³
Weight, min.
20 g
Fitting
Fitting option
None
Fitting size
1/8"
Fitting style
Female
Fitting type
NPSF-thread
Dimension
Height
53.3 mm
Outer diameter, min.
53 mm
Performance - lifting forces
B50
20 -kPa
33 N
24.2 N
60 -kPa
65 N
51.2 N
90 -kPa
82 N
60.8 N
Material
Name
HNBR 50° Shore A
Colour
Blue
Temperature
-30 - 140 °C
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
