Item number: 3150096P
56 Variants

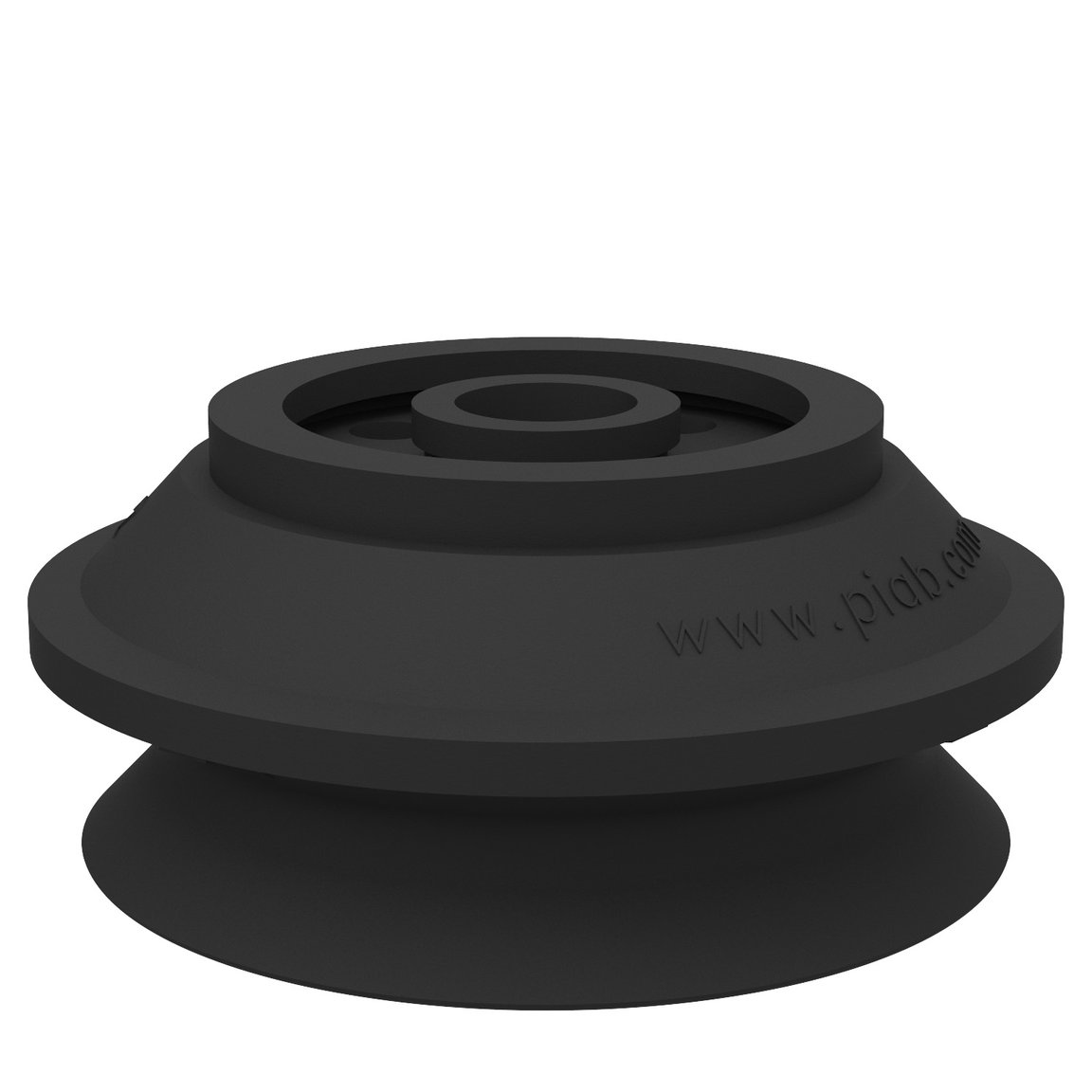

Suction cup B75-2 Nitrile-PVC, with filter & washer
Piab’s Nitrile-PVC bellow suction cups are designed for robust and reliable handling in demanding industrial environments. Constructed from a durable Nitrile-PVC blend, these cups offer excellent resistance to oils, chemicals, and abrasion. The flexible bellow design adapts to uneven surfaces and compensates for height differences, ensuring a secure grip on a variety of materials. Ideal for automotive and manufacturing applications, they deliver consistent, long-lasting performance in tough conditions.
Login or create account to access all our content and features!
Fitting
Without fitting None
Without fitting Filter disc, None
Without fitting Al
Without fitting Filter, Washer, None
G 1/4" MaleFilter mesh, Al
G 1/4" MaleDual flow control valve, Filter mesh, Al
G 1/4" MaleDual flow control valve, Filter disc, Filter mesh, Al
G 1/4" MaleFilter mesh, Filter disc, Al
G 3/8" MaleFilter mesh, Al
G 3/8" MaleDual flow control valve, Filter mesh, Al
G 3/8" MaleFilter mesh, Filter disc, Al
G 3/8" FemaleFilter mesh, Al
G 1/2" FemaleFilter mesh, Clamp ring, Al
G 1/2" FemaleFilter mesh, Al
G 3/4" FemaleFilter mesh, Al
1/4" NPT MaleFilter mesh, Al
1/4" NPT MaleDual flow control valve, Filter mesh, Al
1/4" NPT MaleFilter mesh, Filter disc, Al
3/8" NPT MaleFilter mesh, Al
1/8" NPSF FemaleAl
1/8" NPSF FemaleFilter mesh, Al
1/8" NPSF FemaleDual flow control valve, Al
1/8" NPSF FemaleFilter disc, Al
1/8" NPSF FemaleFilter mesh, Filter disc, Al
1/8" NPSF FemaleDual flow control valve, Filter disc, Al
1/8" NPSF FemaleFilter disc, PA
1/8" NPSF FemaleFilter mesh, Clamp ring, Al
1/8" NPSF FemalePA
5x1/8" NPSF FemaleAl
5x1/8" NPSF FemaleFilter disc, Al
3/8" NPSF FemaleFilter mesh, Clamp ring, Al
3/8" NPSF FemaleFilter mesh, Al
Not compatible with the selected fitting or size. Choosing this option will adjust the size/fitting.
Features
- Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
- The lifting movement can be used to separate small and thin objects.
- Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement.
