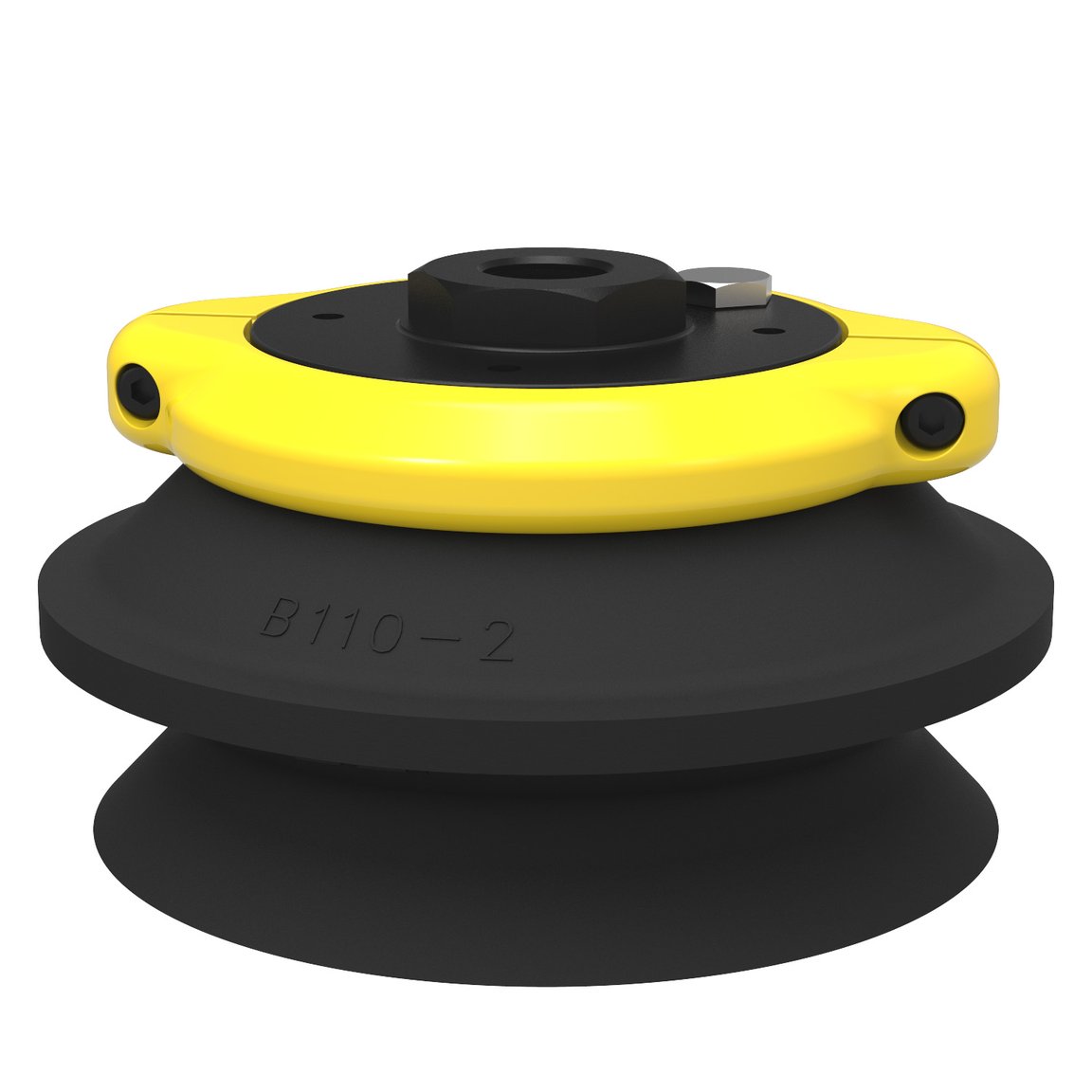

Suction cup B110-2 Nitrile-PVC, G3/8" female, clamp ring with mesh filter - 1
Item number: B110-2.30.11NA
58 Variants

Suction cup B110-2 Nitrile-PVC, G3/8" female, clamp ring with mesh filter

Piab’s Nitrile-PVC bellow suction cups are designed for robust and reliable handling in demanding industrial environments. Constructed from a durable Nitrile-PVC blend, these cups offer excellent resistance to oils, chemicals, and abrasion. The flexible bellow design adapts to uneven surfaces and compensates for height differences, ensuring a secure grip on a variety of materials. Ideal for automotive and manufacturing applications, they deliver consistent, long-lasting performance in tough conditions.
Login or create account to access all our content and features!
DownloadsShare via email

Size

50 mm
Item number: B50.30
75 mm
Item number: B75.30.07ND
110 mm
Item number: B110.30.11NA
150 mm
Item number: B150.30.15NA
50 mm (50-2)
Item number: B50-2.30.05AE
75 mm (75-2)
Item number: B75-2.30.07ND
110 mm (110-2)
Item number: B110-2.30.11NA

Fitting

Without fitting None
Item number: B50.30
Without fitting Filter disc, None
Item number: B50-2.30
Without fitting Al
Item number: B75.30.W
Without fitting Filter, Washer, None
Item number: B75-2.30.W
G 1/4" MaleFilter mesh, Al
Item number: B50.30.05AB
G 1/4" MaleDual flow control valve, Filter mesh, Al
Item number: B50.30.05DB
G 1/4" MaleDual flow control valve, Filter disc, Filter mesh, Al
Item number: B50-2.30.05DB
G 1/4" MaleFilter mesh, Filter disc, Al
Item number: B50-2.30.05AB
G 3/8" MaleFilter mesh, Al
Item number: B50.30.05AD
G 3/8" MaleDual flow control valve, Filter mesh, Al
Item number: B50.30.05DD
G 3/8" MaleFilter mesh, Filter disc, Al
Item number: B50-2.30.05AD
G 3/8" FemaleFilter mesh, Al
Item number: B110-2.30.11NA
G 1/2" FemaleFilter mesh, Clamp ring, Al
Item number: B110-2.30.11NC
G 1/2" FemaleFilter mesh, Al
Item number: B110-2.30.11UA
G 3/4" FemaleFilter mesh, Al
Item number: B150.30.15NB
1/4" NPT MaleFilter mesh, Al
Item number: B50.30.05AC
1/4" NPT MaleDual flow control valve, Filter mesh, Al
Item number: B50.30.05DC
1/4" NPT MaleFilter mesh, Filter disc, Al
Item number: B50-2.30.05AC
3/8" NPT MaleFilter mesh, Al
Item number: B50.30.05AE
1/4" NPT FemaleAl
Item number: B75.30.07UH
1/8" NPSF FemaleAl
Item number: B50.30.05AA
1/8" NPSF FemaleFilter mesh, Al
Item number: B50.30.05AG
1/8" NPSF FemaleDual flow control valve, Al
Item number: B50.30.05DA
1/8" NPSF FemaleFilter disc, Al
Item number: B50-2.30.05AA
1/8" NPSF FemaleFilter mesh, Filter disc, Al
Item number: B50-2.30.05AG
1/8" NPSF FemaleDual flow control valve, Filter disc, Al
Item number: B50-2.30.05DA
1/8" NPSF FemaleFilter disc, PA
Item number: B50-2.30.05CA
1/8" NPSF FemaleFilter mesh, Clamp ring, Al
Item number: B75.30.07NA
1/8" NPSF FemalePA
Item number: B50.30.05CA
5x1/8" NPSF FemaleAl
Item number: B50.30.05AF
5x1/8" NPSF FemaleFilter disc, Al
Item number: B50-2.30.05AF
3/8" NPSF FemaleFilter mesh, Clamp ring, Al
Item number: B75.30.07NE
3/8" NPSF FemaleFilter mesh, Al
Item number: B110-2.30.11NB
Not compatible with the selected fitting or size. Choosing this option will adjust the size/fitting.

Features

  • Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
  • The lifting movement can be used to separate small and thin objects.
  • Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement.
