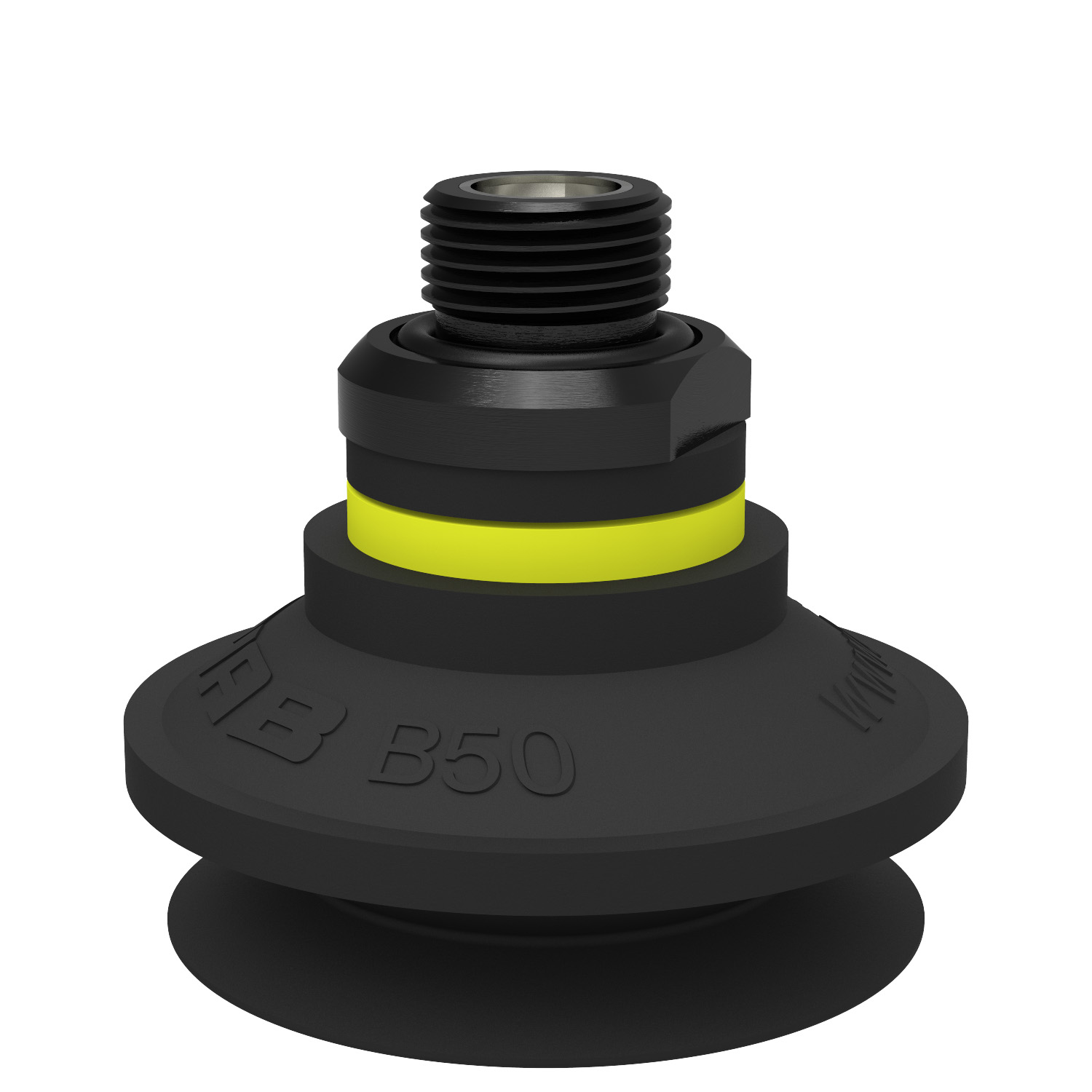

Suction cup B50 Nitrile-PVC, G3/8" male, with mesh filter - 1
Item number: 0101646
18 Variants

Suction cup B50 Nitrile-PVC, G3/8" male, with mesh filter

Piab’s Nitrile-PVC bellow suction cups are designed for robust and reliable handling in demanding industrial environments. Constructed from a durable Nitrile-PVC blend, these cups offer excellent resistance to oils, chemicals, and abrasion. The flexible bellow design adapts to uneven surfaces and compensates for height differences, ensuring a secure grip on a variety of materials. Ideal for automotive and manufacturing applications, they deliver consistent, long-lasting performance in tough conditions.
Login or create account to access all our content and features!
DownloadsShare via email

Size

50 mm
75 mm
110 mm
150 mm

Fitting

Without fitting None
Without fitting Al
G 1/4" MaleFilter mesh, Al
G 3/8" MaleFilter mesh, Al
G 3/8" FemaleFilter mesh, Al
G 1/2" FemaleFilter mesh, Al
G 3/4" FemaleFilter mesh, Al
1/4" NPT MaleFilter mesh, Al
3/8" NPT MaleFilter mesh, Al
1/4" NPT FemaleAl
1/8" NPSF FemaleAl
1/8" NPSF FemaleFilter disc, PA
5x1/8" NPSF FemaleAl
3/8" NPSF FemaleFilter mesh, Al
Not compatible with the selected fitting or size. Choosing this option will adjust the size/fitting.

Features

  • Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
  • The lifting movement can be used to separate small and thin objects.
  • Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement.
