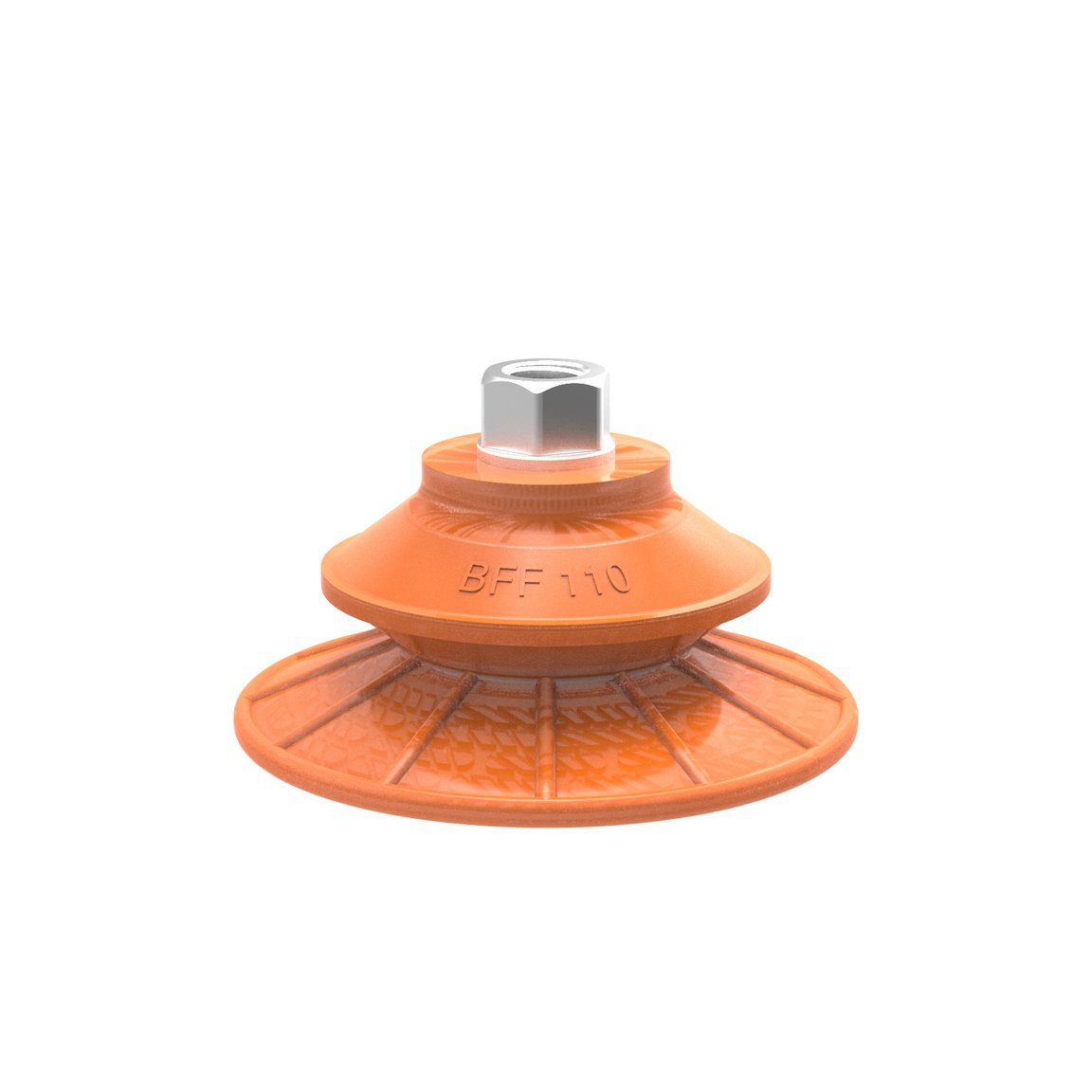

Suction cup BFF110P Polyurethane 55/60 G3/8" female with mesh filter, 17 mm thread - 1
Item number: 0207217
9 Variants

Suction cup BFF110P Polyurethane 55/60 G3/8" female with mesh filter, 17 mm thread

The BFF-P design is suitable for oily surfaces, uneven/curved surfaces or if level compensation is needed, for example in de-stacking applications. The flat inner support gives stability during movement in any orientation.Special designed friction cups for oily surfaces, such as sheets in metal forming processes. Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 2–4 times more than corresponding conventional suction cups.
Login or create account to access all our content and features!
DownloadsShare via email

Variants

  • Suction cup BFF110P Polyurethane 55/60. 3/8" NPT female with mesh filter
    0206881
  • Suction cup BFF110P Polyurethane 55/60 G3/8" female with mesh filter
    0207211
  • Suction cup BFF110P Polyurethane 55/60 G3/8" female plastic thread
    0207212
  • Suction cup BFF110P Polyurethane 55/60 G3/8" male, 1/8" NPSF female, with mesh filter
    0207213
  • Suction cup BFF110P Polyurethane 55/60 T-slot with mesh filter
    0207214
  • Suction cup BFF110P Polyurethane 55/60 G1/4" female with mesh filter
    0207215
  • Suction cup BFF110P Polyurethane 55/60 M10x1,5 male with mesh filter
    0207216
  • Suction cup BFF110P Polyurethane 55/60 G3/8" female with mesh filter, 17 mm thread
    0207217
  • Suction cup BFF110P Polyurethane 55/60 G1/4" male with mesh filter
    0209103

Features

  • Special designed friction cups for oily surfaces, such as sheets in metal forming processes.
  • Normal wear on friction cup will not affect the long term shear force performance.
  • Best choice if > 0.1g/m2 press oil is used on the sheet.
  • Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 2–4 times more than corresponding conventional suction cups.
  • The "BFF" design is suitable for uneven/curved surfaces or if level compensation is needed, for example in de-stacking applications.
  • The flat inner support gives stability during movement in any orientation.
  • DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
