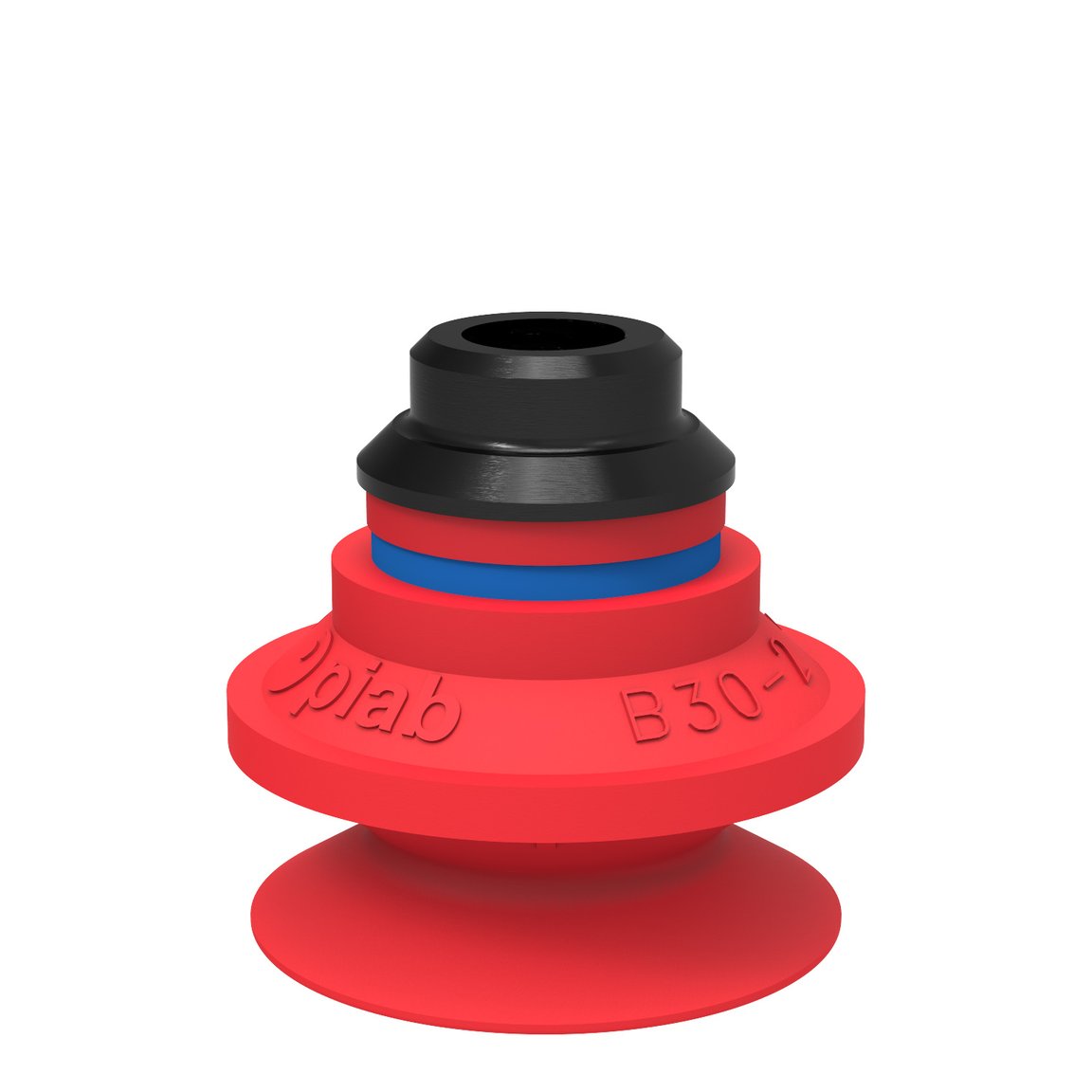

Suction cup B30-2 Silicone, 1/8" NPSF female, PA - 1
Item number: B30-2.20.04CA
99 Variants

Suction cup B30-2 Silicone, 1/8" NPSF female, PA

Piab’s silicone bellow suction cup is designed for superior flexibility and adaptability in challenging material handling tasks. The soft silicone construction ensures a gentle grip. Its bellow design allows for excellent compensation of height differences and effective handling of uneven objects. Durable and resistant to chemicals, the silicone bellow suction cup delivers reliable, safe, and efficient performance in demanding automation environments.
Login or create account to access all our content and features!
DownloadsShare via email

Size

5 mm
Item number: B5.20
8 mm
Item number: B8.20
10 mm
Item number: B10-2.20
15 mm
Item number: B15-2.20
20 mm
Item number: B20.20
30 mm
Item number: B30-2.20.04CA
40 mm
Item number: B40.20.04CA
50 mm
Item number: B50.20
75 mm
Item number: B75.20.07NA
110 mm
Item number: B110.20.11NA
150 mm
Item number: B150.20.15NA
50 mm (50-2)
Item number: B50-2.20
75 mm (75-2)
Item number: B75-2.20.07NA
110 mm (110-2)
Item number: B110-2.20.11NA

Fitting

Without fitting None
Item number: B30-2.20
Without fitting Filter disc, None
Item number: B50-2.20
Without fitting Washer, None
Item number: B75.20.W
Without fitting Filter, Washer, None
Item number: B75-2.20.W
M5 MaleBrass
Item number: B5.20.01AB
5xM5 FemaleAl, Brass, PA
Item number: B20.20.02AE
5xM5 FemaleDual flow control valve, Al, Brass, PA
Item number: B20.20.02DE
M5 FemaleAl
Item number: B20.20.02AA
G 1/8" Male, M5 FemaleAl
Item number: B20.20.02AD
G 1/8" Male, M5 FemaleFilter mesh, Al
Item number: B20.20.02AF
M5 FemaleDual flow control valve, Al
Item number: B20.20.02DA
G 1/8" Male, M5 FemaleDual flow control valve, Al
Item number: B20.20.02DD
G 1/8" Male, M5 FemalePA
Item number: B20.20.02CD
G 1/8" MaleFilter mesh, Al
Item number: B20.20.02AB
G 1/8" MaleDual flow control valve, Filter mesh, Al
Item number: B20.20.02DB
G 1/4" MaleFilter mesh, Al
Item number: B30-2.20.04AB
G 1/4" MaleDual flow control valve, Filter mesh, Al
Item number: B30-2.20.04DB
G 1/4" MaleFilter mesh, Filter disc, Al
Item number: B50-2.20.05AB
G 3/8" MaleFilter mesh, Al
Item number: B30-2.20.04AD
G 3/8" MaleDual flow control valve, Filter mesh, Al
Item number: B30.2.20.04DD
G 3/8" MaleFilter mesh, Filter disc, Al
Item number: B50-2.20.05AD
G 3/8" FemaleFilter mesh, Al
Item number: B75.20.07ND
G 1/2" FemaleFilter mesh, Clamp ring, Al
Item number: B75.20.07NF
G 1/2" FemaleFilter mesh, Al
Item number: B75.20.07UD
G 3/4" FemaleFilter mesh, Al
Item number: B150.20.15NB
1/8" NPT MaleFilter mesh, Al
Item number: B20.20.02AC
1/4" NPT MaleFilter mesh, Al
Item number: B30-2.20.04AC
1/4" NPT MaleDual flow control valve, Filter mesh, Al
Item number: B50.20.05DC
1/4" NPT MaleFilter mesh, Filter disc, Al
Item number: B50-2.20.05AC
3/8" NPT MaleFilter mesh, Al
Item number: B30-2.20.04AE
3/8" NPT MaleFilter mesh, Filter disc, Al
Item number: B50-2.20.05AE
1/4" NPT FemaleAl
Item number: B75.20.07UH
1/8" NPSF FemaleFilter mesh, Al
Item number: B30-2.20.04AG
1/8" NPSF FemaleDual flow control valve, Al
Item number: B30-2.20.04DA
1/8" NPSF FemalePA
Item number: B30-2.20.04CA
1/8" NPSF FemaleAl
Item number: B40.20.04AA
1/8" NPSF FemaleFilter disc, Al
Item number: B50-2.20.05AA
1/8" NPSF FemaleFilter mesh, Filter disc, Al
Item number: B50-2.20.05AG
1/8" NPSF FemaleDual flow control valve, Filter disc, Al
Item number: B50-2.20.05DA
1/8" NPSF FemaleFilter disc, PA
Item number: B50-2.20.05CA
1/8" NPSF FemaleFilter mesh, Clamp ring, Al
Item number: B75.20.07NA
5x1/8" NPSF FemaleAl
Item number: B30-2.20.04AF
5x1/8" NPSF FemaleDual flow control valve, Al
Item number: B30-2.20.04DF
5x1/8" NPSF FemaleFilter disc, Al
Item number: B50-2.20.05AF
3/8" NPSF FemaleFilter mesh, Clamp ring, Al
Item number: B75.20.07NE
3/8" NPSF FemaleFilter mesh, Al
Item number: B75.20.07UB
Not compatible with the selected fitting or size. Choosing this option will adjust the size/fitting.

Features

  • Made from high quality silicone for safe and efficient handling
  • Suitable for level adjustment.
  • Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
  • The lifting movement can be used to separate small and thin objects.
  • Suitable for plastics, sheet metal and packaging application
