Suction cup FC100P Polyurethane 40 - 1
订货号: FC100P.4C
23 种类

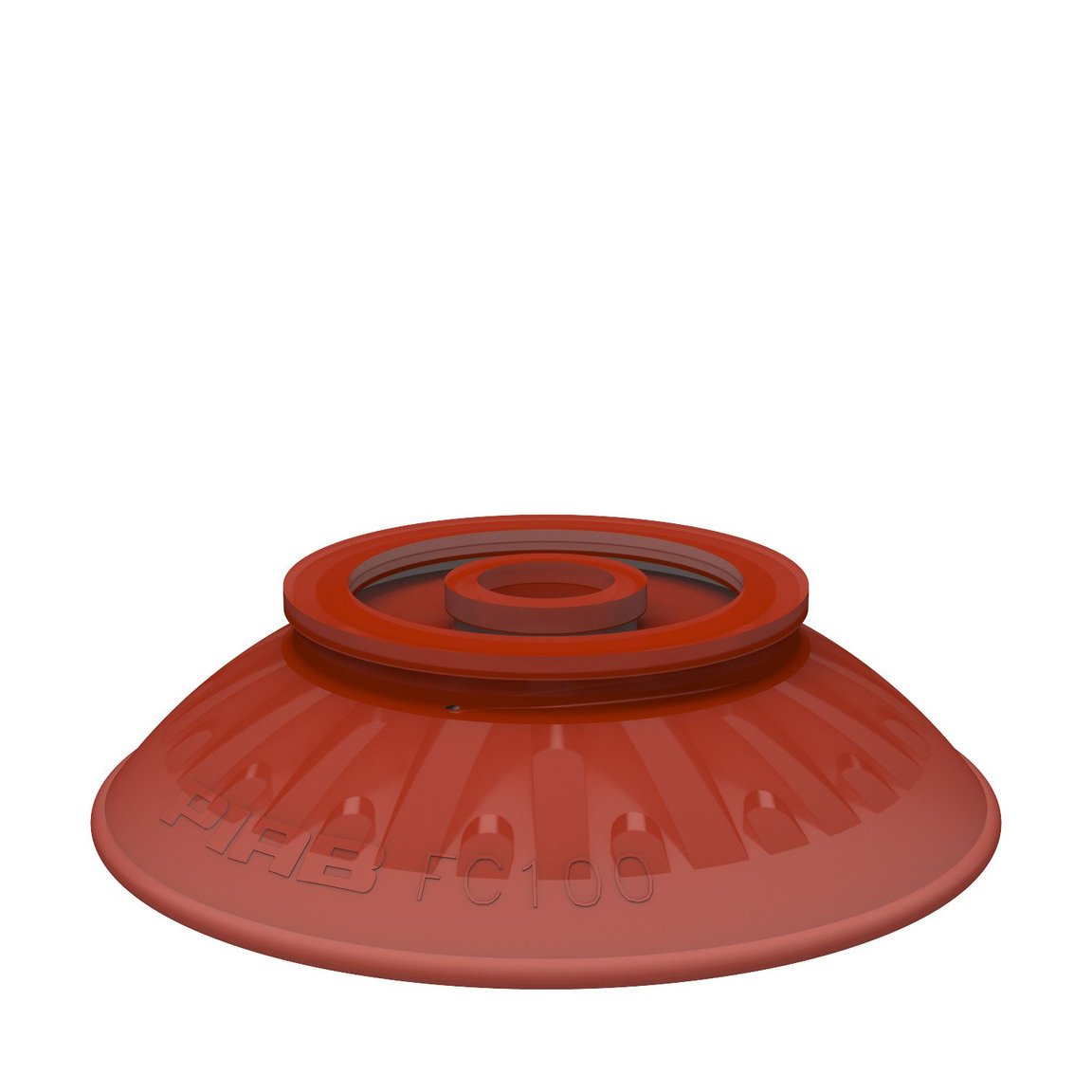

Suction cup FC100P Polyurethane 40

DURAFLEX®吸盘专为满足汽车行业的苛刻要求而研制。其典型应用为将钣金送入冲压模具。它具有略带弧形的外形和内夹板，抓持力好，同时唇边经过强化，能显著延长吸盘的使用寿命。同时还供应椭圆型号用于处理卵形工件。
登录或创建账户以访问我们的所有内容和功能！
下载通过电子邮件分享

种类

  • Suction cup FC100P Polyurethane 40
    FC100P.4C
  • Suction cup FC100P Polyurethane 60
    FC100P.4E
  • Suction cup FC100P Polyurethane 40, 1/8" NPSF female, with mesh filter
    FC100P.4C.07NA
  • Suction cup FC100P Polyurethane 60, 1/8" NPSF female, with mesh filter
    FC100P.4E.07NA
  • Suction cup FC100P Polyurethane 40, G3/8" female, with mesh filter
    FC100P.4C.07ND
  • Suction cup FC100P Polyurethane 60, G3/8" female, with mesh filter
    FC100P.4E.07ND
  • Suction cup FC100P Polyurethane 40, 3/8" NPSF female, with mesh filter
    FC100P.4C.07NE
  • Suction cup FC100P Polyurethane 60, 3/8" NPSF female, with mesh filter
    FC100P.4E.07NE
  • Suction cup FC100P Polyurethane 40, G1/2" female, with mesh filter
    FC100P.4C.07NF
  • Suction cup FC100P Polyurethane 60, G1/2" female, with mesh filter
    FC100P.4E.07NF
  • Suction cup FC100P Polyurethane 40, for tread insert
    FC100P.5C
  • Suction cup FC100P Polyurethane 40, thread insert G3/8" male, with mesh filter
    FC100P.5C.G40M
  • Suction cup FC100P Polyurethane 60, for tread insert
    FC100P.5E
  • Suction cup FC100P Polyurethane 60, thread insert G3/8" male, with mesh filter
    FC100P.5E.G40M
  • Suction cup FC100P Polyurethane 40, 3/8" NPSF female
    FC100P.5C.N40W
  • Suction cup FC100P Polyurethane 60, 3/8" NPSF female
    FC100P.5E.N40W
  • Suction cup FC100 Nitrile-PVC 60
    FC100.30
  • Suction cup FC100 Nitrile-PVC 60, G3/8" male
    FC100 3/8"
  • Suction cup FC100 Nitrile-PVC 60, 1/8" NPSF female, with mesh filter
    FC100.30.07NA
  • Suction cup FC100 Nitrile-PVC 60, with washer
    FC100.30.W
  • Suction cup FC100 Nitrile-PVC 60, G3/8" female, with mesh filter
    FC100.30.07ND
  • Suction cup FC100 Nitrile-PVC 60, 3/8" NPSF female, with mesh filter
    FC100.30.07NE
  • Suction cup FC100 Nitrile-PVC 60, G1/2" female, with mesh filter
    FC100.30.07NF

特性

  • Suitable for slightly domed and flat and oily surfaces, e.g., such as those encountered when handling steel sheets in press processes.
  • Thanks to the high friction of the rubber material, the suction cups can withstand high forces at rapid accelerations in horizontal directions, even on oily surfaces.
  • The suction cups have cleats that prevent thin objects from being disfigured.
  • DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
