Suction cup FC35P Polyurethane 50 - 1
订货号: 0103290
19 种类

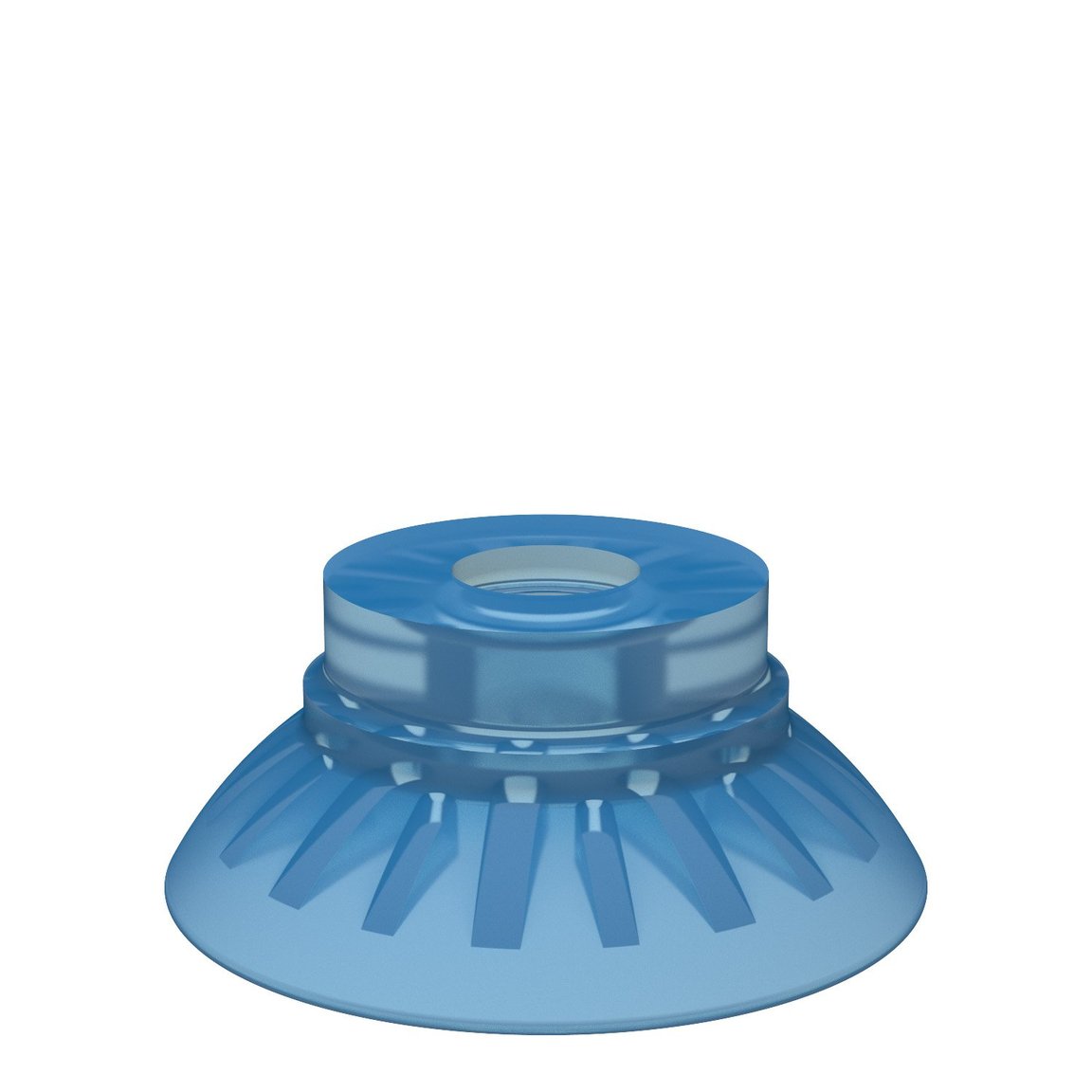

Suction cup FC35P Polyurethane 50

DURAFLEX®吸盘专为满足汽车行业的苛刻要求而研制。其典型应用为将钣金送入冲压模具。它具有略带弧形的外形和内夹板,抓持力好,同时唇边经过强化,能显著延长吸盘的使用寿命。同时还供应椭圆型号用于处理卵形工件。
登录或创建账户以访问我们的所有内容和功能!

种类

  • Suction cup FC35P Polyurethane 50
    0103290
  • Suction cup FC35P Polyurethane 60
    0103291
  • Suction cup FC35P Polyurethane 50, 1/8" NPSF female, with mesh filter
    0103705
  • Suction cup FC35P Polyurethane 60, 1/8" NPSF female, with mesh filter
    0103706
  • Suction cup FC35P Polyurethane 50, 1/8" NPSF female
    0103707
  • Suction cup FC35P Polyurethane 50, 1/8" NPSF female, with dual flow control valve
    0103709
  • Suction cup FC35P Polyurethane 50, G1/4" male, with mesh filter
    0103711
  • Suction cup FC35P Polyurethane 60, G1/4" male, with mesh filter
    0103712
  • Suction cup FC35P Polyurethane 50, G1/4" male, with mesh filter and dual flow control valve
    0103713
  • Suction cup FC35P Polyurethane 50, 1/4" NPT male, with mesh filter
    0103715
  • Suction cup FC35P Polyurethane 50, G3/8" male, with mesh filter
    0103719
  • Suction cup FC35P Polyurethane 60, G3/8" male, with mesh filter
    0103720
  • Suction cup FC35P Polyurethane 60, G3/8" male, with mesh filter and dual flow control valve
    0103722
  • Suction cup FC35P Polyurethane 60, 5x1/8" NPSF female
    0103728
  • Suction cup FC35P Polyurethane 60, 1/8" NPSF female
    0103708
  • Suction cup FC35P Polyurethane 60, 1/4" NPT male, with mesh filter
    0103716
  • Suction cup FC35P Polyurethane 60, NPT3/8" male, with mesh filter
    0103724
  • Suction cup FC35P Polyurethane 60, 1/4" NPT male, with dual flow control valve
    0103718
  • Suction cup FC35P Polyurethane 60, NPT3/8" male, with dual flow control valve
    0103726

特性

  • Suitable for slightly domed and flat and oily surfaces, e.g., such as those encountered when handling steel sheets in press processes.
  • Thanks to the high friction of the rubber material, the suction cups can withstand high forces at rapid accelerations in horizontal directions, even on oily surfaces.
  • The suction cups have cleats that prevent thin objects from being disfigured.
  • DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
