Item number: 0112667
3 Variants

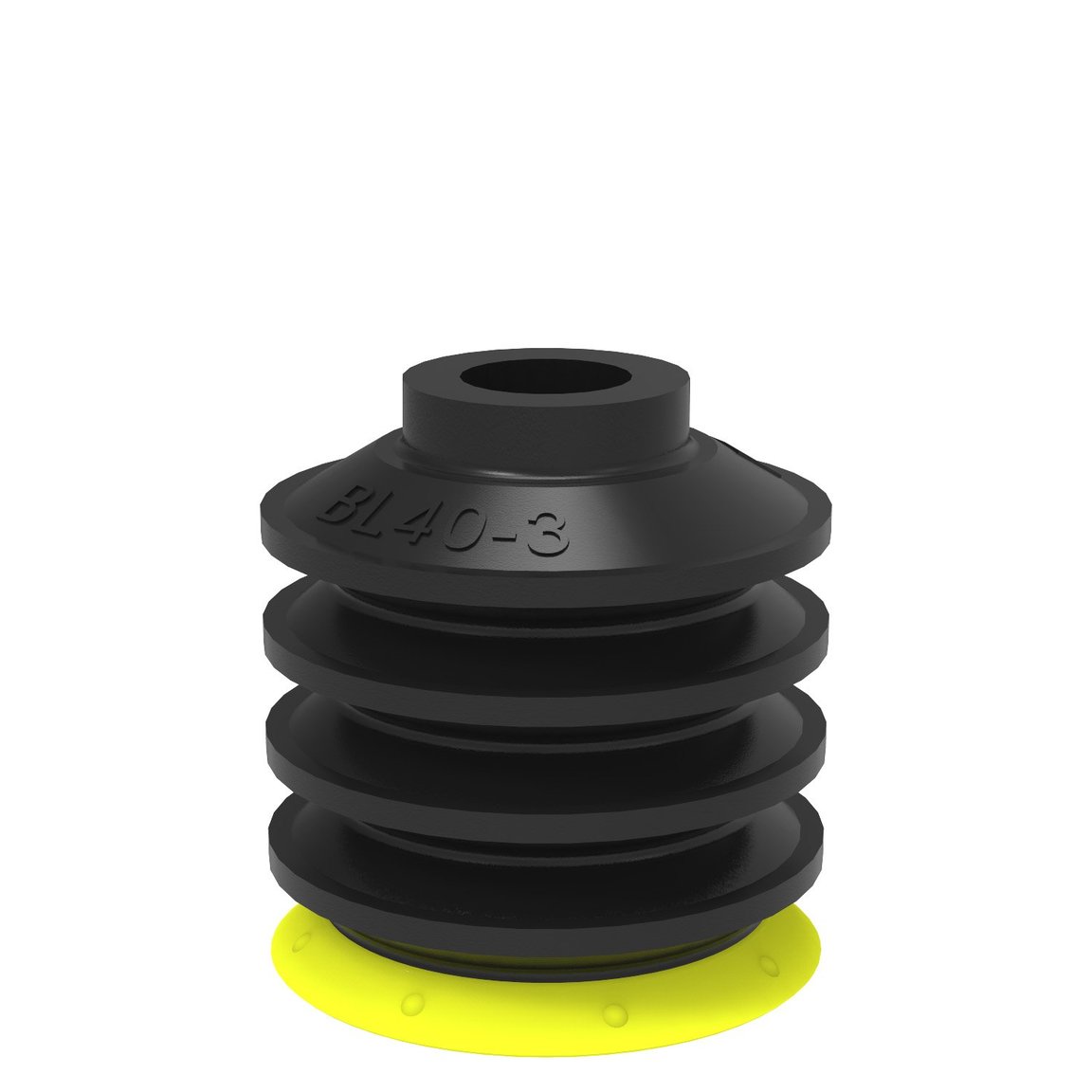

Suction cup BL40-3P Polyurethane 30/70
This suction cup is specially designed for plastic bag handling. The unique suction cup fitting allows the high initial flow needed for a secure grip. The dual-...
Read more
Login or create account to access all our content and features!
Variants
0112667
0111791
0112693
Features
- High-flow fitting allowing high initial vacuum flow needed for plastic bag handling.
- Suitable for level adjustment and uneven surfaces.
- Dual hardness allowing strength and stability in conjunction with softness and flexibility.
- DURAFLEX® material features the elasticity of rubber in combination with the wear resistance of polyurethane.
- The DURAFLEX® material is mark-free.
Packaging
- Bag and pouch handling
- Bags, sacks and bundles
General
Material
Polyurethane (PU)
Characteristics
Bag handling
Suction cup model
BL-3-P
Volume
27 cm³
Weight, min.
12 g
Fitting
Fitting option
None
Fitting size
None
Fitting style
None
Fitting type
None
Dimension
Height
42.4 mm
Outer diameter, min.
40 mm
Performance - lifting forces
BL40-3P
20 -kPa
20 N
13 N
60 -kPa
43 N
24 N
90 -kPa
55 N
36 N
Material
Name
Polyurethane (PU30)
Colour
Yellow
Temperature
10 - 50 °C
Hardness
30 °Shore A
Material
Name
Polyurethane (PU70)
Colour
Black
Temperature
10 - 50 °C
Hardness
70 °Shore A
Material resistance
Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Petrol
Wear resistance
Material resistance
Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Petrol
Wear resistance
Dimensional drawings
This activity requires login. Please login or register to receive the full benefits of piab.com.
CAD
CAD
Datasheet
PDF
Brochures
PDF
Certificates
PDF
PDF
PDF
White papers
PDF
