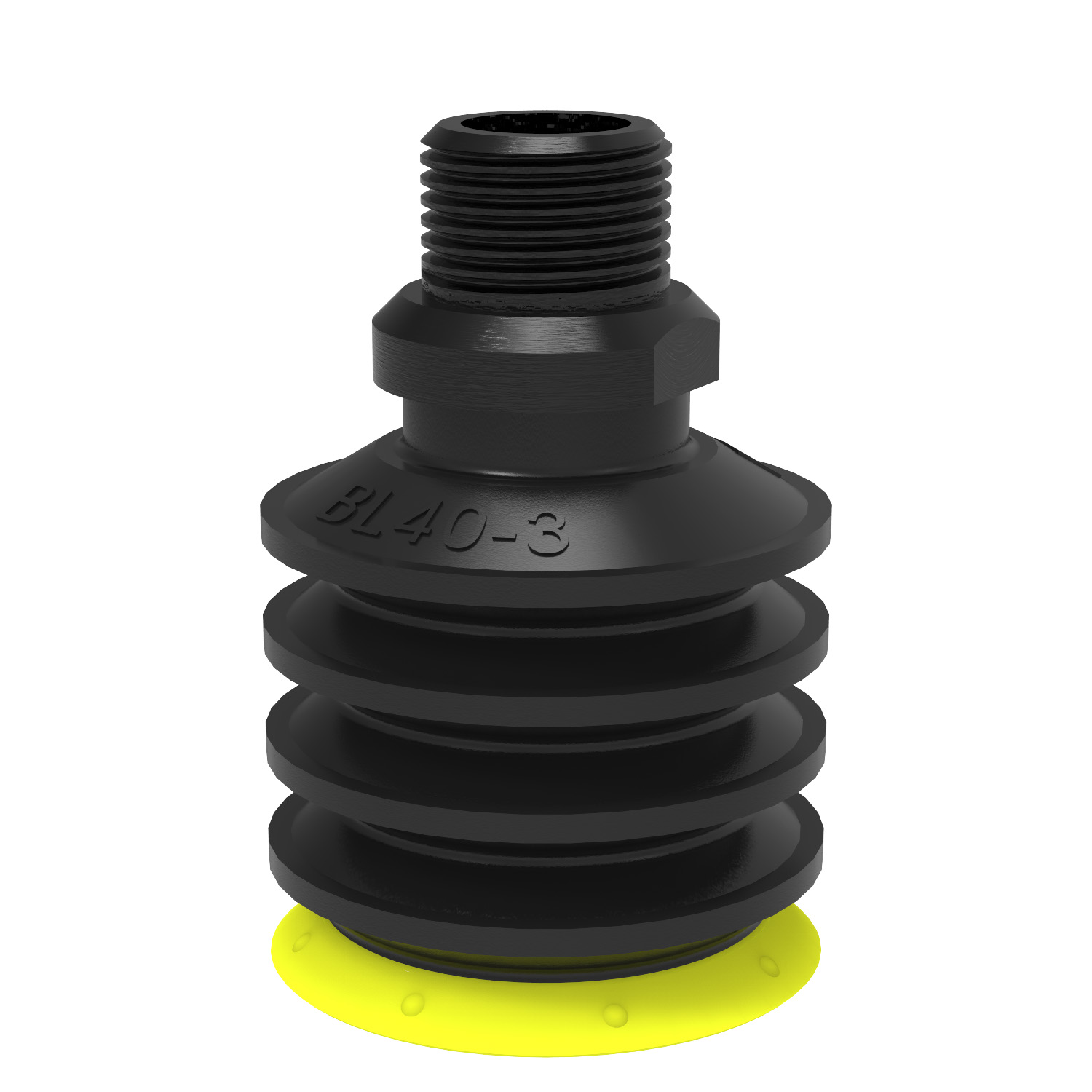

Suction cup BL40-3P Polyurethane 30/70, 3/8" NPT male - 1
Item number: BL40-3P.4L.04AL
9 Variants

Suction cup BL40-3P Polyurethane 30/70, 3/8" NPT male

This suction cup is specially designed for plastic bag handling. The unique suction cup fitting allows the high initial flow needed for a secure grip. The dual-hardness suction cup offers better sealing capabilities and more stable and secure handling.
Login or create account to access all our content and features!
DownloadsShare via email

Size

30 mm
Item number: BL30-3P.4L.04AL
40 mm
Item number: BL40-3P.4L.04AL
50 mm
Item number: BL50-3P.4L

Fitting

Without fitting None
Item number: BL40-3P.4L
G 3/8" MaleAl
Item number: BL40-3P.4L.04AJ
G 1/2" MaleAl
Item number: BL50-3P.4L.05AJ
3/8" NPT MaleAl
Item number: BL40-3P.4L.04AL
1/2" NPT MaleAl
Item number: BL50-3P.4L.05AL
Not compatible with the selected fitting or size. Choosing this option will adjust the size/fitting.

Features

  • High-flow fitting allowing high initial vacuum flow needed for plastic bag handling.
  • Suitable for level adjustment and uneven surfaces.
  • Dual hardness allowing strength and stability in conjunction with softness and flexibility.
  • DURAFLEX® material features the elasticity of rubber in combination with the wear resistance of polyurethane.
  • The DURAFLEX® material is mark-free.
