Item number: 0110545
3 Variants

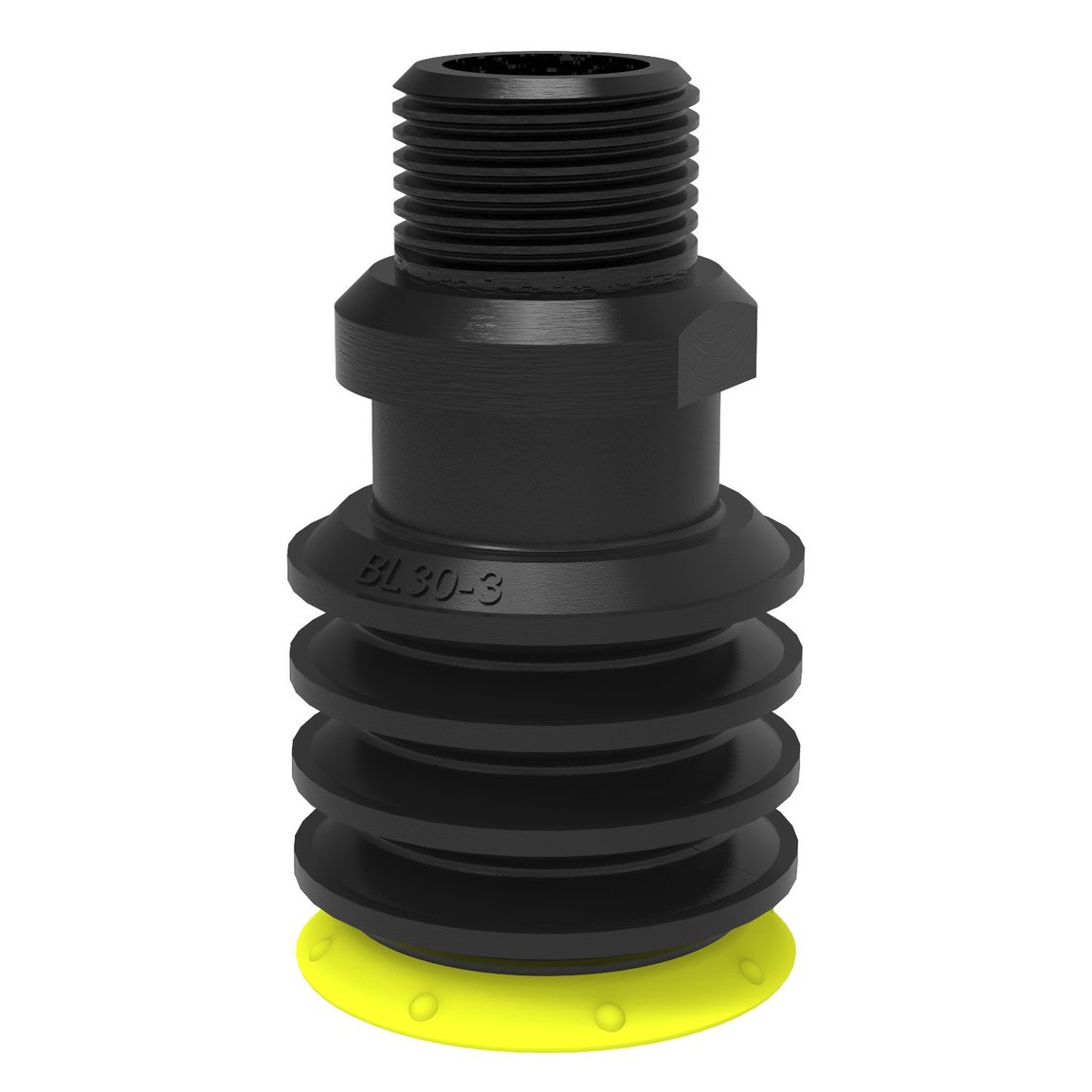

Suction cup BL30-3P Polyurethane 30/70
This suction cup is specially designed for plastic bag handling. The unique suction cup fitting allows the high initial flow needed for a secure grip. The dual-...
Read more
Login or create account to access all our content and features!
Variants
0110545
0113744
0113743
Features
- High-flow fitting allowing high initial vacuum flow needed for plastic bag handling.
- Suitable for level adjustment and uneven surfaces.
- Dual hardness allowing strength and stability in conjunction with softness and flexibility.
- DURAFLEX® material features the elasticity of rubber in combination with the wear resistance of polyurethane.
- The DURAFLEX® material is mark-free.
Packaging
- Bag and pouch handling
- Bags, sacks and bundles
General
Material
Polyurethane (PU)
Characteristics
Bag handling
Suction cup model
BL-3-P
Volume
14 cm³
Weight, min.
6 g
Fitting
Fitting option
None
Fitting size
None
Fitting style
None
Fitting type
None
Dimension
Height
35.5 mm
Outer diameter, min.
30 mm
Performance - lifting forces
BL30-3P
20 -kPa
10 N
9 N
60 -kPa
22 N
10 N
90 -kPa
28 N
16 N
Material
Name
Polyurethane (PU30)
Colour
Yellow
Temperature
10 - 50 °C
Hardness
30 °Shore A
Material
Name
Polyurethane (PU70)
Colour
Black
Temperature
10 - 50 °C
Hardness
70 °Shore A
Material resistance
Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Petrol
Wear resistance
Material resistance
Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Petrol
Wear resistance
