Item number: 0101211
43 Variants

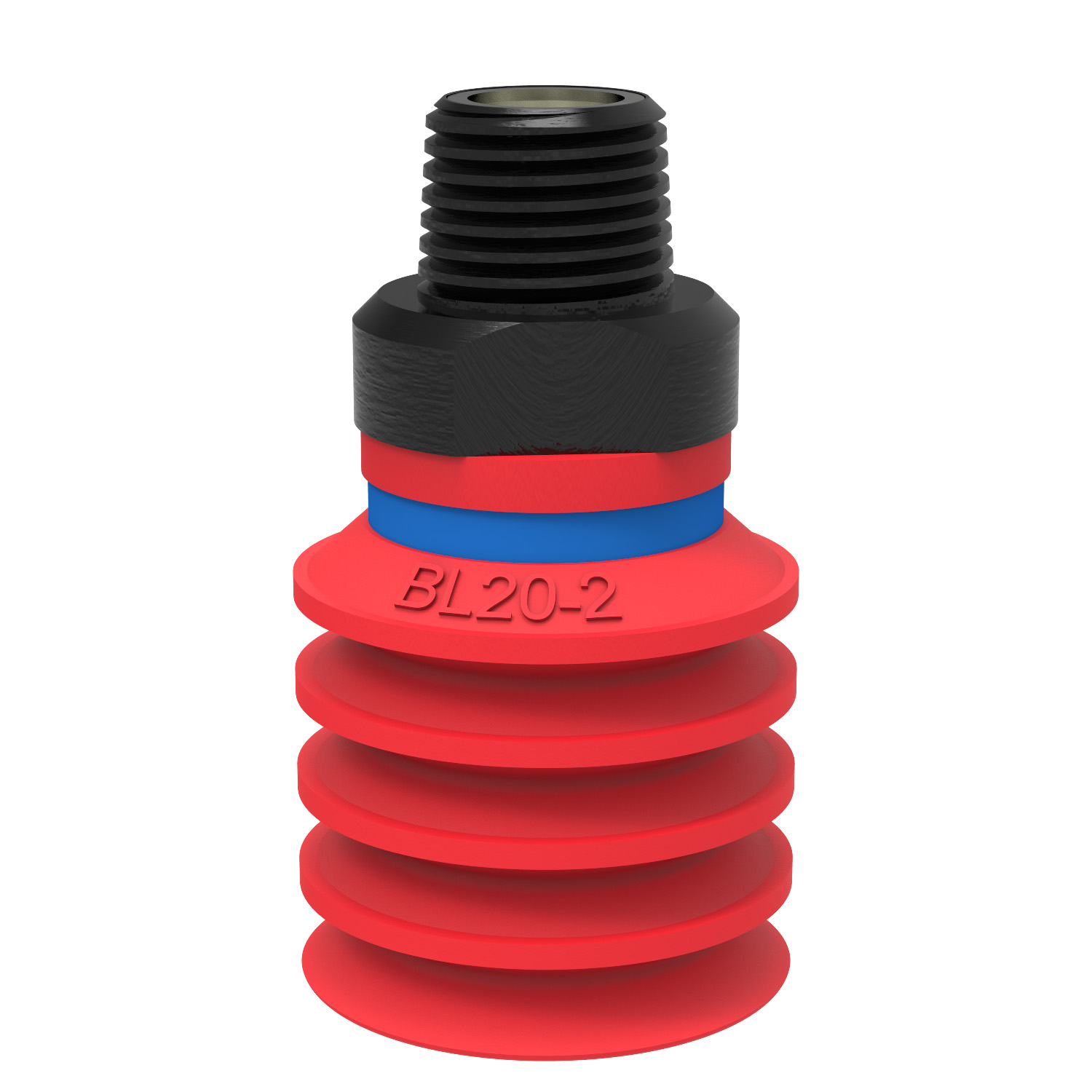

Suction cup BL20-2 Silicone, G1/8" male, with mesh filter and dual flow control valve
The BL-2 silicone cup have a soft, flexible lip and are suitable for bags that are not too tightly packed. It's four bellows offer good level compensation. Available in diameters from 20 to 50 mm.
Login or create account to access all our content and features!
Fitting
Without fitting None
5xM5 FemaleAl, Brass, PA
M5 FemaleAl
G 1/8" Male, M5 FemaleAl
G 1/8" Male, M5 FemaleFilter mesh, Al
M5 FemaleDual flow control valve, Al
G 1/8" Male, M5 FemalePA
G 1/8" MaleFilter mesh, Al
G 1/8" MaleDual flow control valve, Filter mesh, Al
G 1/4" MaleFilter mesh, Al
G 1/4" MaleDual flow control valve, Filter mesh, Al
G 3/8" MaleFilter mesh, Al
1/8" NPT MaleFilter mesh, Al
1/4" NPT MaleFilter mesh, Al
1/4" NPT MaleDual flow control valve, Filter mesh, Al
1/4" NPT MaleDual flow control valve, Al
3/8" NPT MaleFilter mesh, Al
1/8" NPSF FemaleAl
1/8" NPSF FemaleFilter mesh, Al
1/8" NPSF FemaleDual flow control valve, Al
1/8" NPSF FemalePA
5x1/8" NPSF FemaleAl
Not compatible with the selected fitting or size. Choosing this option will adjust the size/fitting.
Features
- Optimized for high-flow bag handling
- Made from durable, high-quality silicone, allowing a wide temperature range
- Secure, non-damaging grip on bags
- Suitable for level adjustment.
- Lifting movement to separate small and thin objects.
- Less suitable when the lifting force is parallel to the surface of the object.
