Item number: BL30-2.20
19 Variants

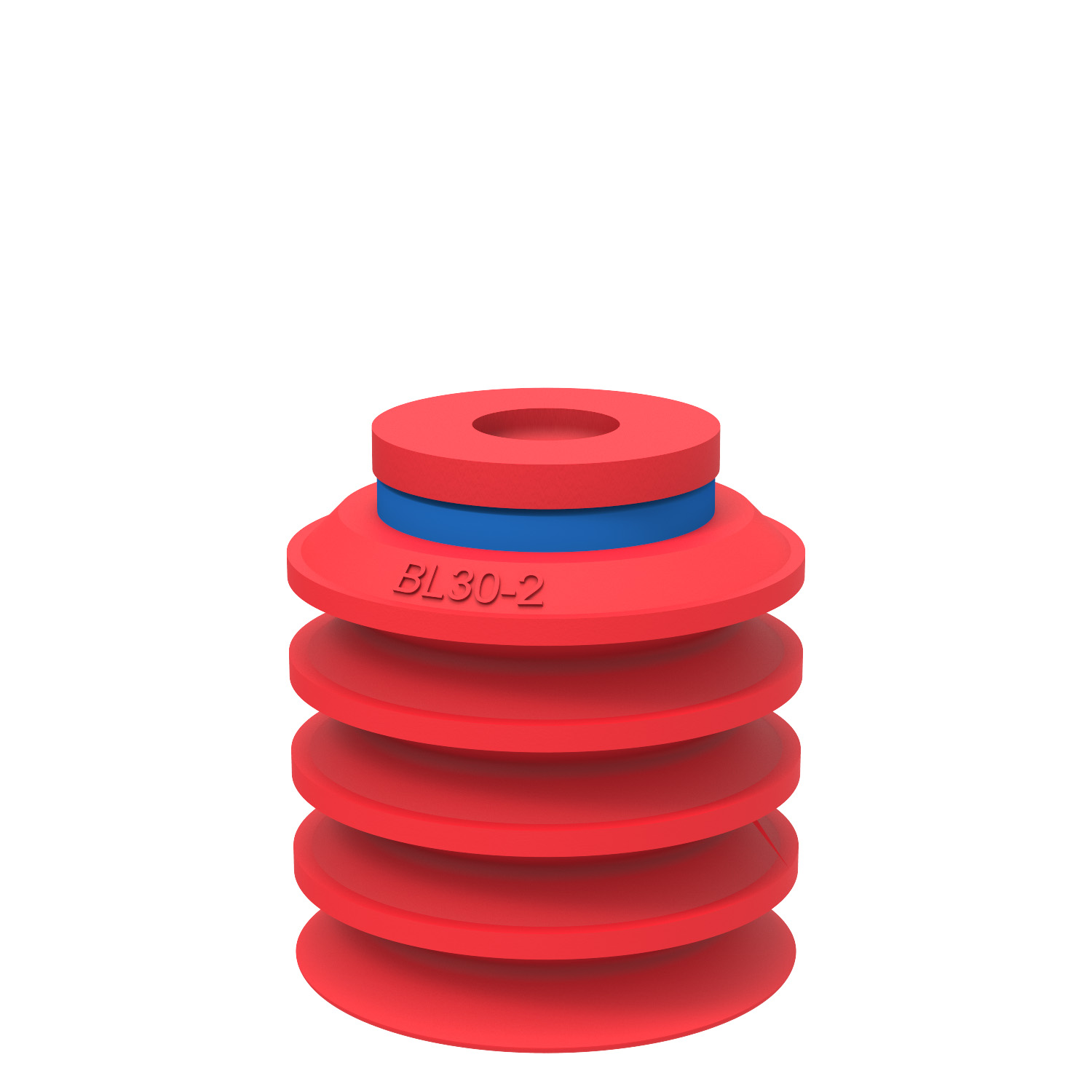

Suction cup BL30-2 Silicone
The BL-2 silicone cup have a soft, flexible lip and are suitable for bags that are not too tightly packed. It's four bellows offer good level compensation. Available in diameters from 20 to 50 mm.
Login or create account to access all our content and features!
Fitting
1/4" NPT MaleFilter mesh, Al
1/8" NPSF FemaleAl
1/8" NPSF FemalePA
1/8" NPT MaleFilter mesh, Al
3/8" NPT MaleFilter mesh, Al
5x1/8" NPSF FemaleAl
5xM5 FemaleAl
G 1/4" MaleFilter mesh, Al
G 1/8" MaleFilter mesh, SS
G 1/8" Male, M5 FemaleAl
G 1/8" Male, M5 FemaleFilter mesh, Al
G 1/8" Male, M5 FemalePA
G 3/8" MaleFilter mesh, Al
M5 FemaleAl
Without fitting None
Not compatible with the selected fitting or size. Choosing this option will adjust the size/fitting.
Features
- Suitable for level adjustment.
- Lifting movement to separate small and thin objects.
- Less suitable when the lifting force is parallel to the surface of the object.
- Optional reinforcement rings made of polyamide.
