Item number: 0101122
21 Variants

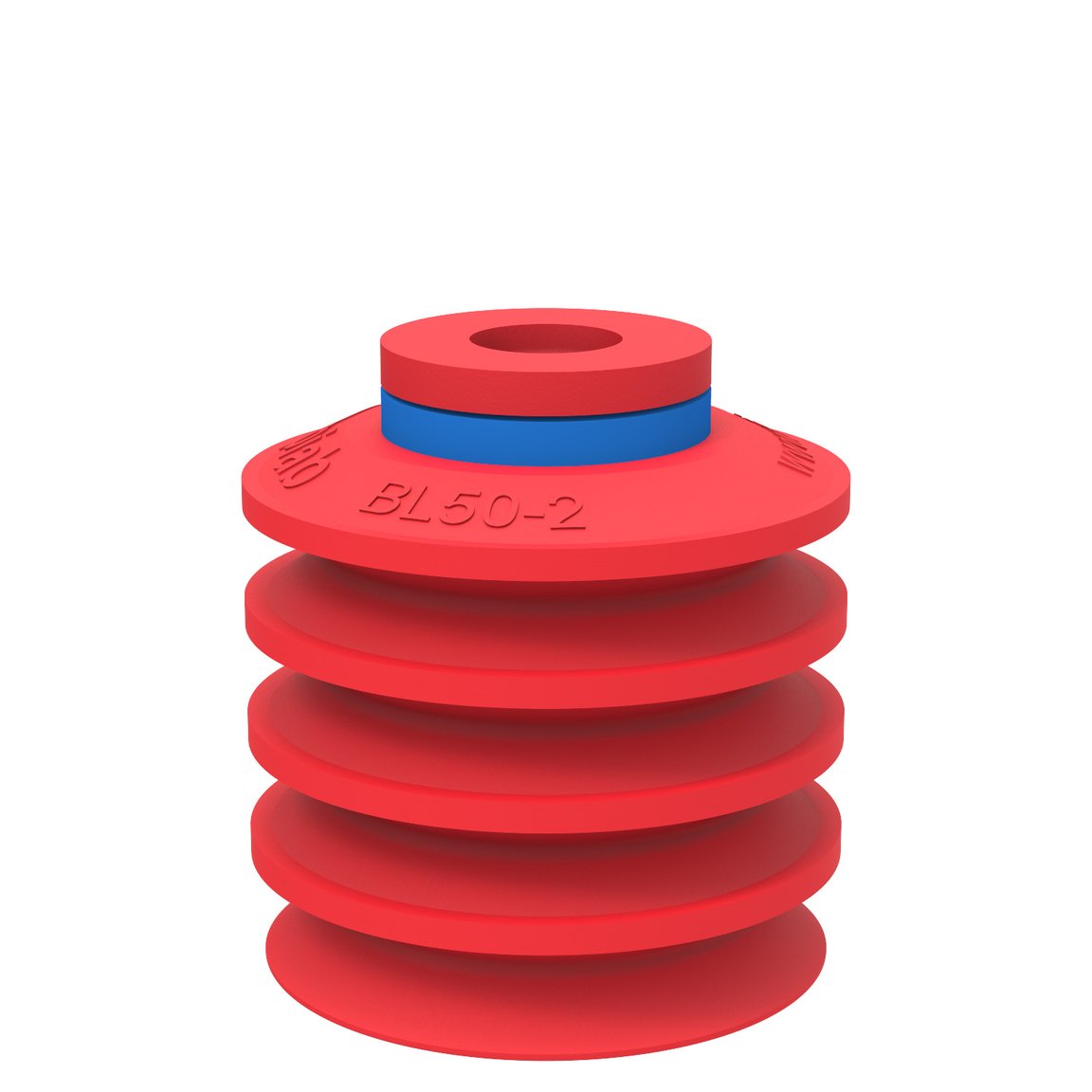

Suction cup BL50-2 Silicone
The same applications as for short bellows but can cope with greater differences in levels due to the longer lifting movement. Not suitable for use with deep va...
Read more
Login or create account to access all our content and features!
Variants
0101121
0101122
0101695
0101696
0101697
0101698
0101700
0101701
0101702
0101703
0101705
0101708
0101709
0101710
0101711
0101712
0101714
0101715
0101717
0110342
0110958
Features
- Suitable for level adjustment.
- Lifting movement to separate small and thin objects.
- Less suitable when the lifting force is parallel to the surface of the object.
Packaging
- Bag and pouch handling
- Bags, sacks and bundles
General
Material
Silicone (SIL)
Characteristics
Bag handling
Suction cup model
BL-2
Volume
53 cm³
Weight, min.
20 g
Fitting
Fitting option
None
Fitting size
None
Fitting style
None
Fitting type
None
Dimension
Height
53 mm
Outer diameter, actuated
50 mm
Outer diameter, min.
48 mm
Performance - lifting forces
BL50-2
20 -kPa
21 N
0 N
60 -kPa
48 N
0 N
Material
Name
Silicone, SIL 50° Shore A
Colour
Red
Temperature
-40 - 200 °C
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
