Suction cup B5 HNBR - 1
Item number: B5.47
10 Variants

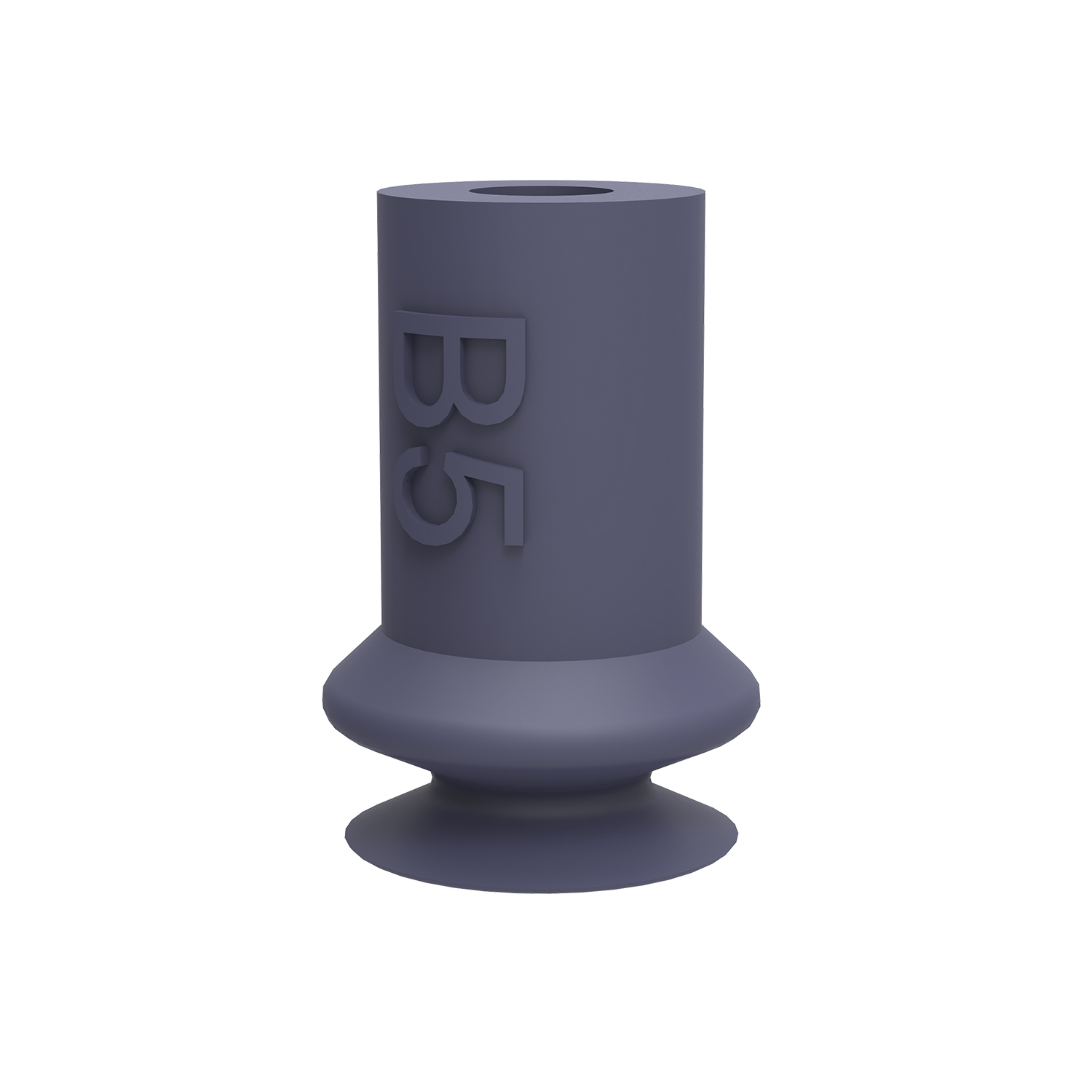

Suction cup B5 HNBR

Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items. Materials used are silicone, conductive silicone, semi-conductive EPDM, chloroprene, HNBR and nitrile-PVC.
Login or create account to access all our content and features!
DownloadsShare via email

Variants

  • Suction cup B5 Semi-conductive EPDM
    B5.50
  • Suction cup B5 HNBR
    B5.47
  • Suction cup B5 Chloroprene
    B5.10
  • Suction cup B5 Silicone
    B5.20
  • Suction cup B5 Conductive silicone
    B5.25
  • Suction cup B5 Chloroprene, M5 male
    B5.10.01AB
  • Suction cup B5 Silicone, M5 male
    B5.20.01AB
  • Suction cup B5 Conductive silicone, M5 male
    B5.25.01AB
  • Suction cup B5 HNBR, M5 male
    B5.47.01AB
  • Suction cup B5 Semi-conductive EPDM, M5 male
    B5.50.01AB

Features

  • Lifting movement to separate small and thin objects.
  • Only lightweight objects should be handled when the lifting force is parallel to the surface.
  • Suitable for level adjustment.
  • Suction cups of conductive silicone and semi-conductive EPDM are suitable for objects with sensitivity to static electricity.
