Suction cup FC100P Polyurethane 40, 3/8" NPSF female - 1
품목 번호: FC100P.5C.N40W
23 변형

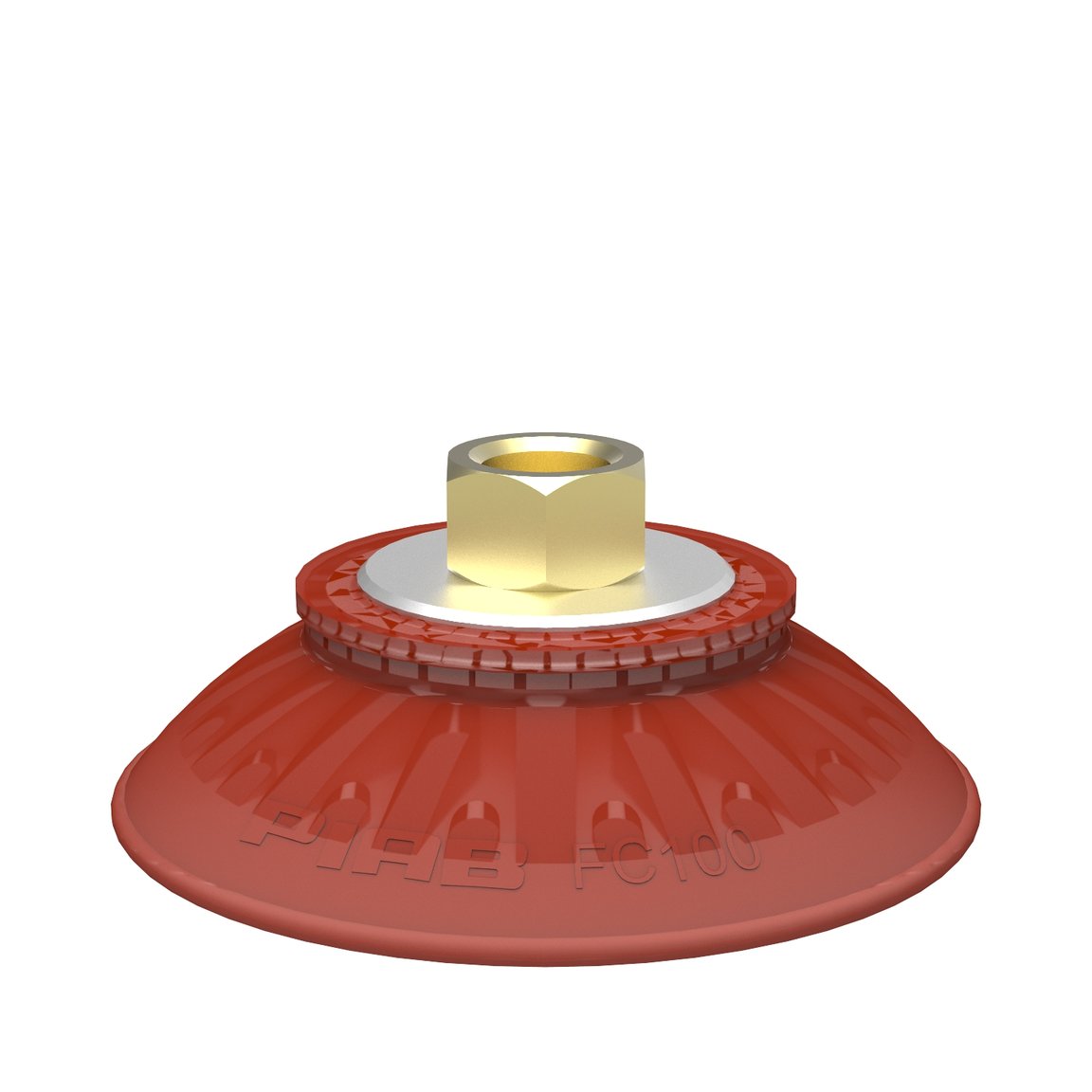

Suction cup FC100P Polyurethane 40, 3/8" NPSF female

DURAFLEX® suction cups have been developed to meet the strict demands of the automotive industry. A typical application is the feeding of sheet metal into a pre...
더 읽기
로그인하거나 계정을 생성하여 모든 콘텐츠와 기능에 액세스하세요!
다운로드이메일로 공유

변형

  • Suction cup FC100P Polyurethane 40
    FC100P.4C
  • Suction cup FC100P Polyurethane 60
    FC100P.4E
  • Suction cup FC100P Polyurethane 40, 1/8" NPSF female, with mesh filter
    FC100P.4C.07NA
  • Suction cup FC100P Polyurethane 60, 1/8" NPSF female, with mesh filter
    FC100P.4E.07NA
  • Suction cup FC100P Polyurethane 40, G3/8" female, with mesh filter
    FC100P.4C.07ND
  • Suction cup FC100P Polyurethane 60, G3/8" female, with mesh filter
    FC100P.4E.07ND
  • Suction cup FC100P Polyurethane 40, 3/8" NPSF female, with mesh filter
    FC100P.4C.07NE
  • Suction cup FC100P Polyurethane 60, 3/8" NPSF female, with mesh filter
    FC100P.4E.07NE
  • Suction cup FC100P Polyurethane 40, G1/2" female, with mesh filter
    FC100P.4C.07NF
  • Suction cup FC100P Polyurethane 60, G1/2" female, with mesh filter
    FC100P.4E.07NF
  • Suction cup FC100P Polyurethane 40, for tread insert
    FC100P.5C
  • Suction cup FC100P Polyurethane 40, thread insert G3/8" male, with mesh filter
    FC100P.5C.G40M
  • Suction cup FC100P Polyurethane 60, for tread insert
    FC100P.5E
  • Suction cup FC100P Polyurethane 60, thread insert G3/8" male, with mesh filter
    FC100P.5E.G40M
  • Suction cup FC100P Polyurethane 40, 3/8" NPSF female
    FC100P.5C.N40W
  • Suction cup FC100P Polyurethane 60, 3/8" NPSF female
    FC100P.5E.N40W
  • Suction cup FC100 Nitrile-PVC 60
    FC100.30
  • Suction cup FC100 Nitrile-PVC 60, G3/8" male
    FC100 3/8"
  • Suction cup FC100 Nitrile-PVC 60, 1/8" NPSF female, with mesh filter
    FC100.30.07NA
  • Suction cup FC100 Nitrile-PVC 60, with washer
    FC100.30.W
  • Suction cup FC100 Nitrile-PVC 60, G3/8" female, with mesh filter
    FC100.30.07ND
  • Suction cup FC100 Nitrile-PVC 60, 3/8" NPSF female, with mesh filter
    FC100.30.07NE
  • Suction cup FC100 Nitrile-PVC 60, G1/2" female, with mesh filter
    FC100.30.07NF

특징

  • Suitable for slightly domed and flat and oily surfaces, e.g., such as those encountered when handling steel sheets in press processes.
  • Thanks to the high friction of the rubber material, the suction cups can withstand high forces at rapid accelerations in horizontal directions, even on oily surfaces.
  • The suction cups have cleats that prevent thin objects from being disfigured.
  • DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
