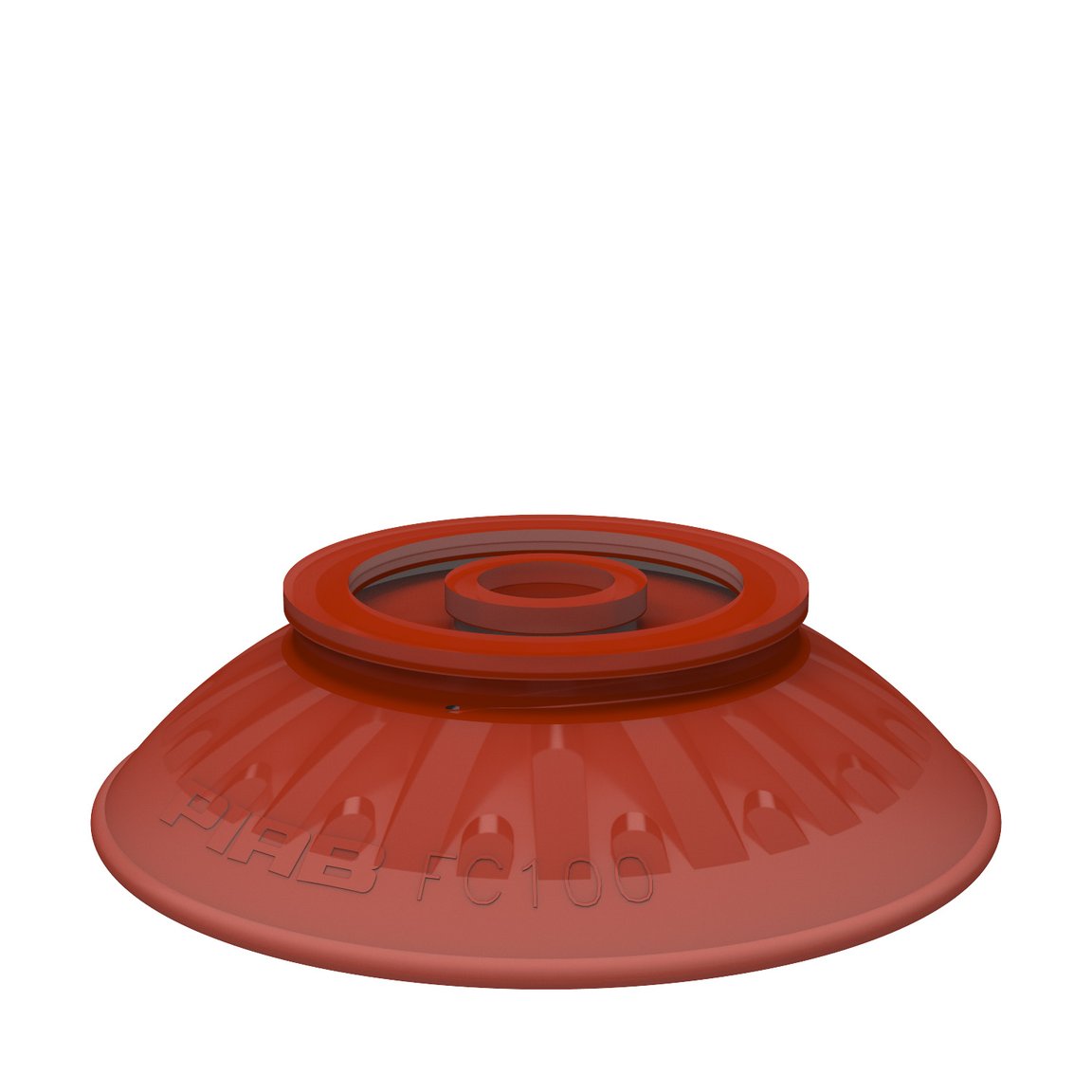

Suction cup FC100P Polyurethane 40 - 1
품목 번호: 0103297
23 변형

Suction cup FC100P Polyurethane 40

DURAFLEX® suction cups have been developed to meet the strict demands of the automotive industry. A typical application is the feeding of sheet metal into a pre...
더 읽기
로그인하거나 계정을 생성하여 모든 콘텐츠와 기능에 액세스하세요!
다운로드이메일로 공유

변형

  • Suction cup FC100P Polyurethane 40
    0103297
  • Suction cup FC100P Polyurethane 60
    0103299
  • Suction cup FC100P Polyurethane 40, 1/8" NPSF female, with mesh filter
    0103731
  • Suction cup FC100P Polyurethane 60, 1/8" NPSF female, with mesh filter
    0103733
  • Suction cup FC100P Polyurethane 40, G3/8" female, with mesh filter
    0103734
  • Suction cup FC100P Polyurethane 60, G3/8" female, with mesh filter
    0103736
  • Suction cup FC100P Polyurethane 40, 3/8" NPSF female, with mesh filter
    0103737
  • Suction cup FC100P Polyurethane 60, 3/8" NPSF female, with mesh filter
    0103739
  • Suction cup FC100P Polyurethane 40, G1/2" female, with mesh filter
    0103740
  • Suction cup FC100P Polyurethane 60, G1/2" female, with mesh filter
    0103742
  • Suction cup FC100P Polyurethane 40, for tread insert
    0106835
  • Suction cup FC100P Polyurethane 40, thread insert G3/8" male, with mesh filter
    0106836
  • Suction cup FC100P Polyurethane 60, for tread insert
    0107304
  • Suction cup FC100P Polyurethane 60, thread insert G3/8" male, with mesh filter
    0107305
  • Suction cup FC100P Polyurethane 40, 3/8" NPSF female
    0108798
  • Suction cup FC100P Polyurethane 60, 3/8" NPSF female
    0108799
  • Suction cup FC100 Nitrile-PVC 60
    3150213P
  • Suction cup FC100 Nitrile-PVC 60, G3/8" male
    3250062P
  • Suction cup FC100 Nitrile-PVC 60, 1/8" NPSF female, with mesh filter
    0101880
  • Suction cup FC100 Nitrile-PVC 60, with washer
    3150094P
  • Suction cup FC100 Nitrile-PVC 60, G3/8" female, with mesh filter
    0101881
  • Suction cup FC100 Nitrile-PVC 60, 3/8" NPSF female, with mesh filter
    0101882
  • Suction cup FC100 Nitrile-PVC 60, G1/2" female, with mesh filter
    0101883

특징

  • Suitable for slightly domed and flat and oily surfaces, e.g., such as those encountered when handling steel sheets in press processes.
  • Thanks to the high friction of the rubber material, the suction cups can withstand high forces at rapid accelerations in horizontal directions, even on oily surfaces.
  • The suction cups have cleats that prevent thin objects from being disfigured.
  • DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
