Item number: 0207111
10 Variants

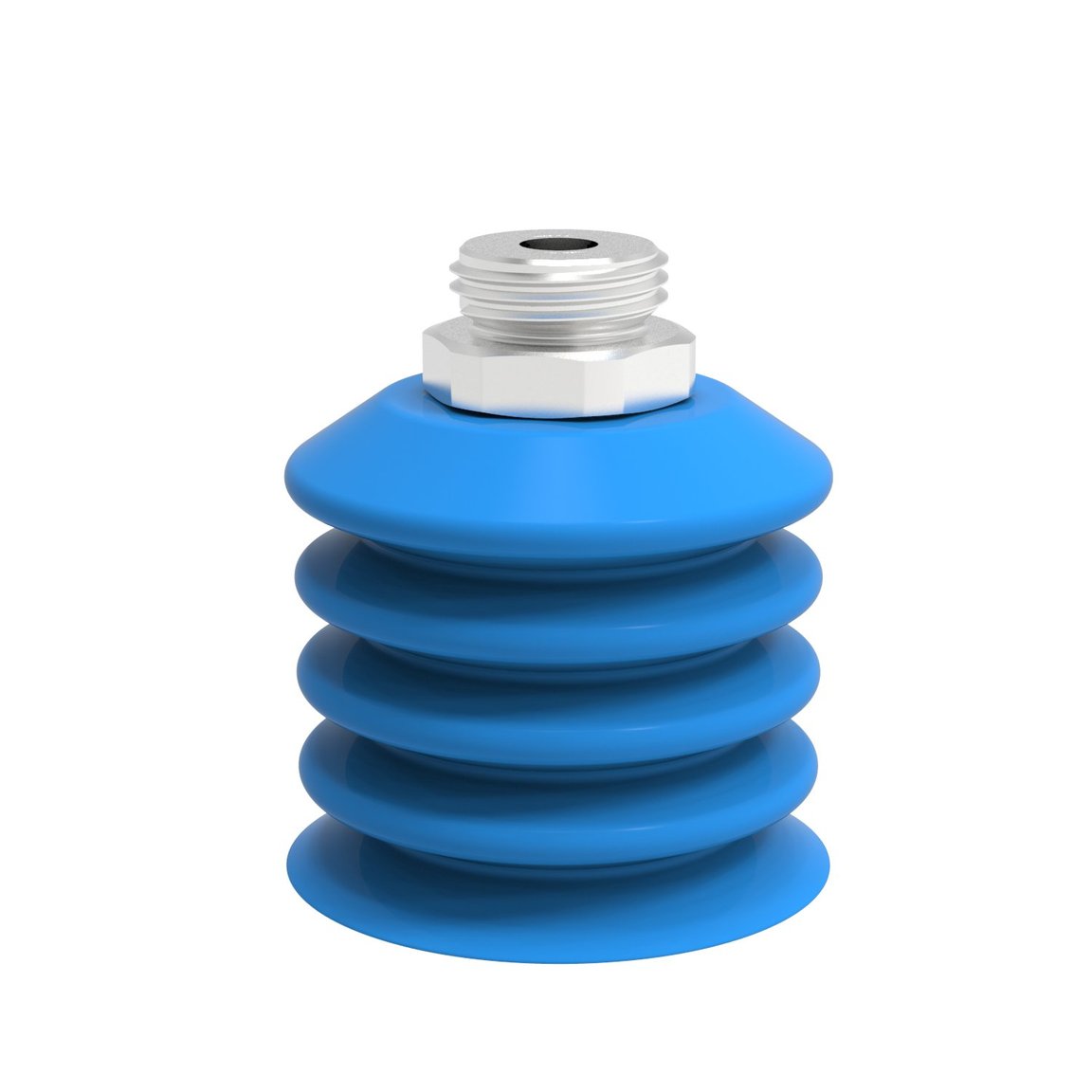

Suction cup B-BL60-2 Silicone, G1/2" male SS detectable, FCM
Login or create account to access all our content and features!
Variants
0206374
0207110
0207111
0207112
0207113
0207114
0207115
0207117
0207118
0207119
Features
- The silicone material complies with FDA 21 CFR 177.2600 and EU 1935/2004.
- Long lasting high-end silicone material
- A low percentage metal additive (Fe) is mixed with the rubber material to make it detectable.
- Suitable for bakeries for use with handling seeded product.
- Suitable for level adjustment.
- Available with male threaded food grade, detectable plastic fittings or acid proof stainless steel fittings. The fittings are separable.
- Additional fitting option – retainer clip for standard belts used for bread de-panner
- Easy to clean with hygienic design. No dust/dirt pockets.
- Low vacuum level needed to collapse bellows. Reduces risk for damaging the handled bakery product
Food & beverage
Packaging
- Direct food contact
General
Material
Silicone (SIL)
Characteristics
Food contact materials (FDA & EU), detectable
Suction cup model
B-BL
Volume
82.1 cm³
Weight, min.
83.2 g
Fitting
Material
ASTM 316L
Fitting option
None
Fitting size
1/2"
Fitting style
Male
Fitting type
G-thread
Dimension
Height
68.6 mm
Outer diameter, actuated
60 mm
Outer diameter, min.
60 mm
Mechanical data
Load, torque, max.
13 Nm
Performance - lifting forces
B-BL60-2 FCM, detectable
10 -kPa
10.6 N
11.9 N
20 -kPa
23.7 N
21.4 N
40 -kPa
43.1 N
47.9 N
Material
Name
Silicone (SIL detectable FCM)
Colour
Blue
Temperature
-40 - 200 °C
Hardness
40 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
