Item number: 0207069
9 Variants

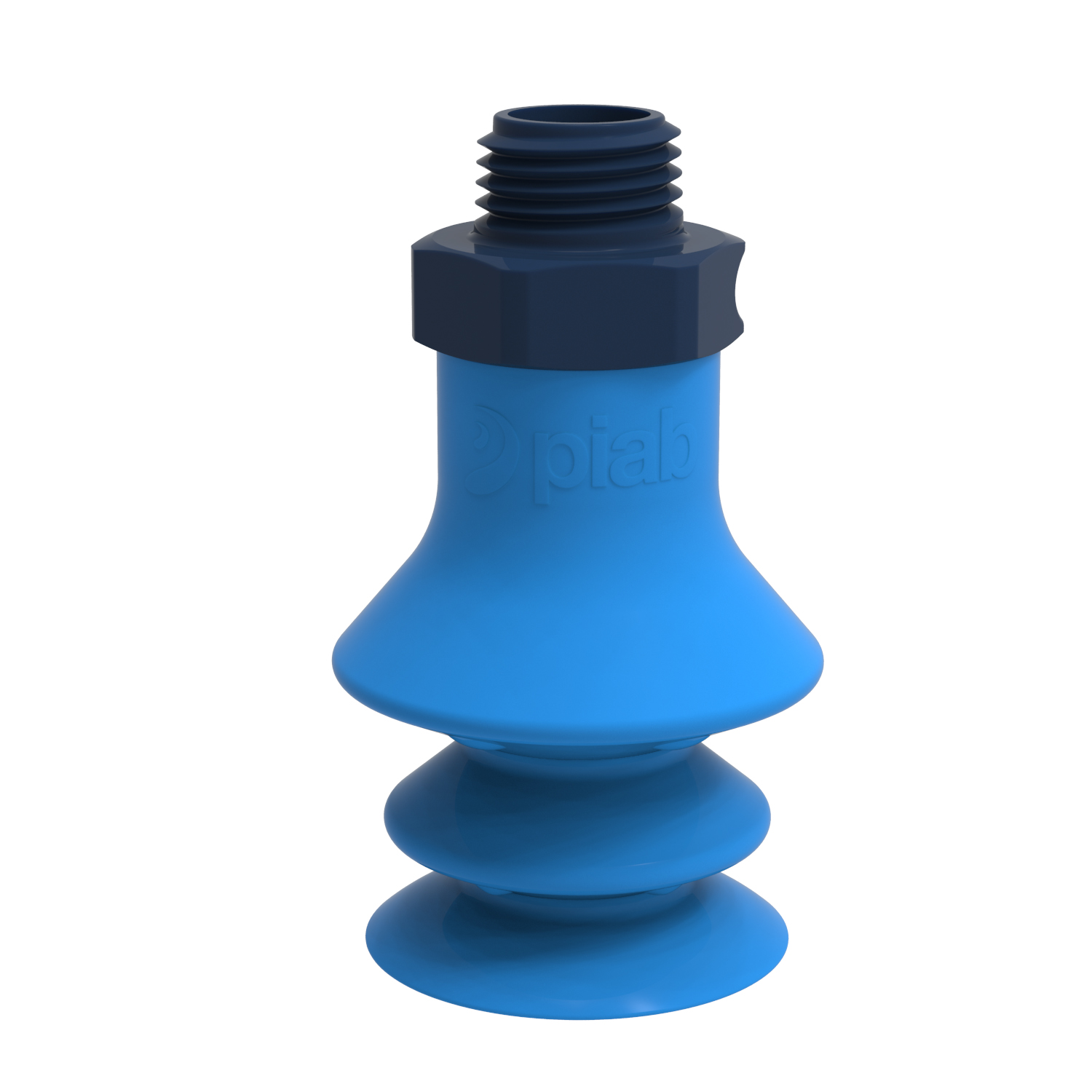

Suction cup F-BX20 Silicone 1/8" NPT male composite, detectable, FCM
Login or create account to access all our content and features!
Variants
0206204
0207063
0207064
0207065
0207066
0207067
0207068
0207069
0207070
Features
- The silicone material complies with FDA 21 CFR 177.2600 and EU 1935/2004.
- Long lasting high-end silicone material
- A low percentage metal additive (Fe) is mixed with the rubber material to make it detectable.
- Suitable for frozen and raw food.
- Excellent grip on food with irregular surfaces and different heights, even at fast speeds and accelerations
- Available with male threaded food grade, detectable plastic fittings or acid proof stainless steel fittings.
- Easy to clean with hygienic design. No dust/dirt pockets.
- Low vacuum level needed to collapse bellows. Reduces risk for damaging the handled food product
Food & beverage
Packaging
- Direct food contact
General
Material
Silicone (SIL)
Characteristics
Food contact materials (FDA & EU), detectable
Suction cup model
F-BX
Tightening torque, max.
13 Nm
Volume
2.9 cm³
Weight, min.
4.1 g
Fitting
Material
Composite
Fitting option
None
Fitting size
1/8"
Fitting style
Male
Fitting type
NPT-thread
Dimension
Height
35 mm
Outer diameter, actuated
21 mm
Outer diameter, min.
21 mm
Mechanical data
Load, torque, max.
13 Nm
Performance - lifting forces
F-BX20
10 -kPa
2.4 N
2.2 N
20 -kPa
4.4 N
2.8 N
40 -kPa
6.2 N
3.8 N
Material
Name
Silicone (SIL detectable FCM)
Colour
Blue
Temperature
-40 - 200 °C
Hardness
40 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
