Item number: 0216786
9 Variants

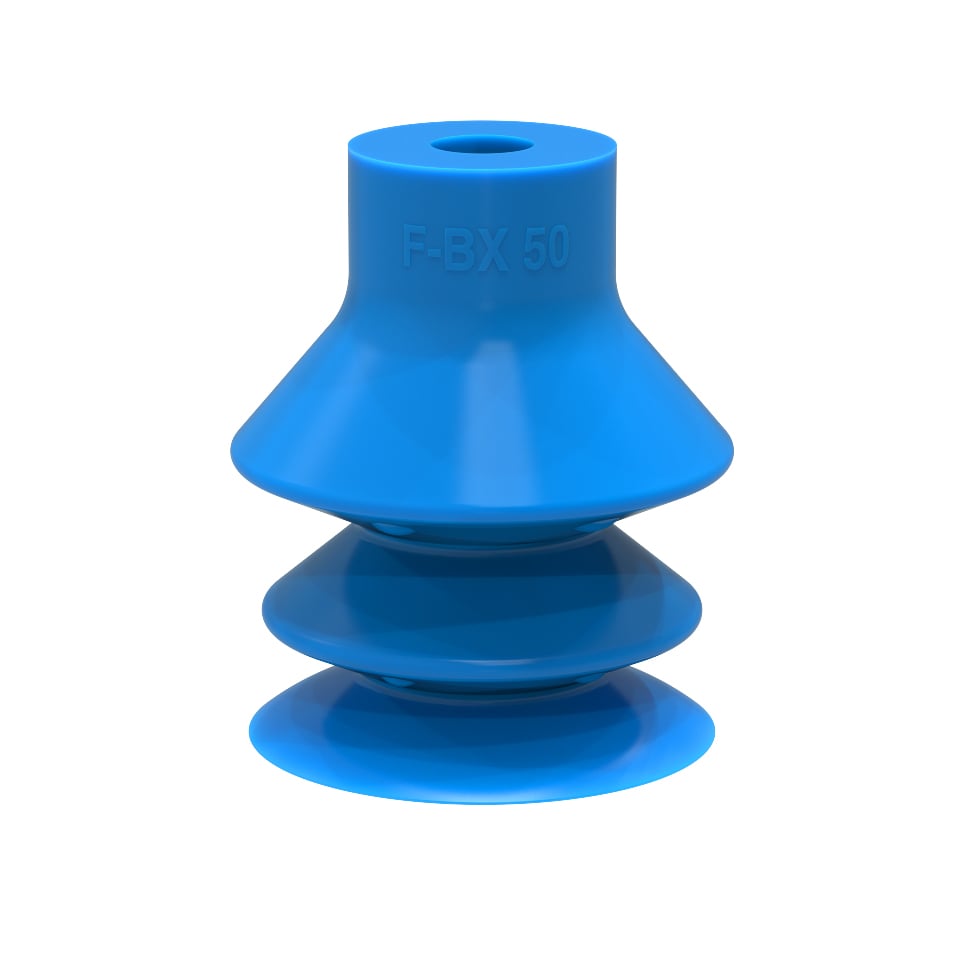

Suction cup F-BX50 Silicone detectable, FCM
Login or create account to access all our content and features!
Variants
0216786
0242568
0242569
0242570
0242571
0242585
0242586
0242588
0242589
Features
- The silicone material complies with FDA 21 CFR 177.2600 and EU 1935/2004.
- Long lasting high-end silicone material.
- A low percentage metal additive (Fe) is mixed with the rubber material to make it detectable.
- Suitable for frozen and raw food.
- Excellent grip on food with irregular surfaces and different heights, even at fast speeds and accelerations.
- Available with male threaded food grade, detectable plastic fittings or acid proof stainless steel fittings.
- Low vacuum level needed to collapse bellows. Reduces risk for damaging the handled food product.
- Easy to clean with hygienic design. No dust/dirt pockets.
Food & beverage
Packaging
- Direct food contact
General
Material
Silicone (SIL)
Characteristics
Food contact materials (FDA & EU), detectable
Suction cup model
F-BX
Volume
40.5 cm³
Weight, min.
36.7 g
Fitting
Material
Composite
Fitting option
None
Fitting size
None
Fitting style
None
Fitting type
None
Dimension
Height (A)
65 mm
Inner diameter (G)
28.5 mm
Outer diameter, actuated
53 mm
Outer diameter, min. (B)
51 mm
Width 2 (C)
54.2 mm
Performance - lifting forces
F-BX50
10 -kPa
15.2 N
10.5 N
20 -kPa
23 N
16.9 N
40 -kPa
32.4 N
21.4 N
Material
Name
Silicone (SIL detectable FCM)
Colour
Blue
Temperature
-40 - 200 °C
Hardness
40 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
