Item number: 0101540
30 Variants

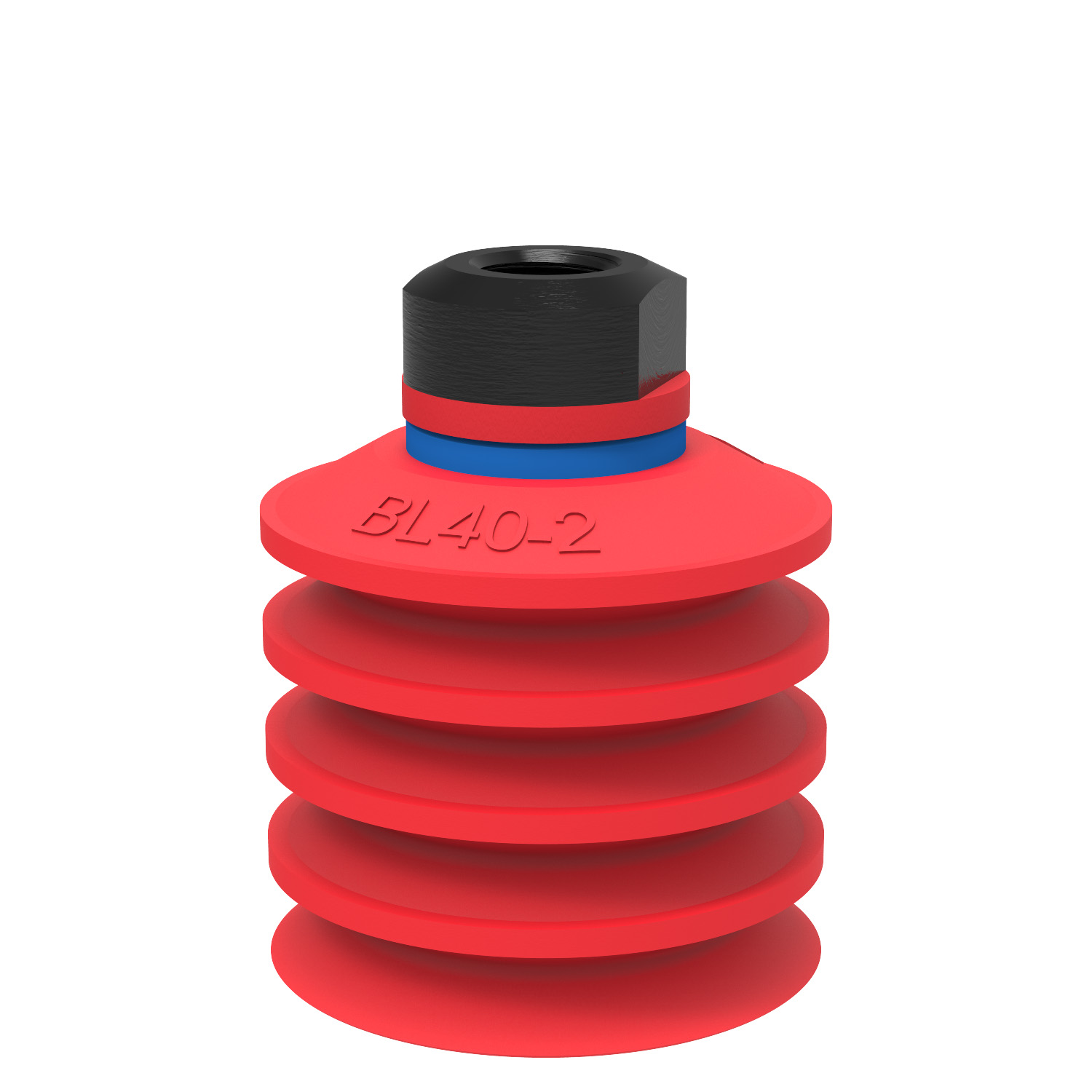

Suction cup BL40-2 Silicone, 1/8" NPSF female, with mesh filter
The same applications as for short bellows but can cope with greater differences in levels due to the longer lifting movement. Not suitable for use with deep va...
Read more
Login or create account to access all our content and features!
Variants
0101119
0101120
0101521
0101522
0101523
0101524
0101525
0101526
0101527
0101528
0101529
0101530
0101531
0101532
0101533
0101534
0101535
0101536
0101537
0101538
0101539
0101540
0101541
0101542
0101543
0101544
0101545
0101546
0110341
0110946
Features
- Suitable for level adjustment.
- Lifting movement to separate small and thin objects.
- Less suitable when the lifting force is parallel to the surface of the object.
Packaging
- Bag and pouch handling
- Bags, sacks and bundles
General
Material
Silicone (SIL)
Characteristics
Bag handling
Suction cup model
BL-2
Volume
27 cm³
Weight, min.
10 g
Fitting
Fitting option
Filter mesh
Fitting size
1/8"
Fitting style
Female
Fitting type
NPSF-thread
Dimension
Height
50.4 mm
Outer diameter, min.
40 mm
Performance - lifting forces
BL40-2
20 -kPa
11 N
0 N
60 -kPa
30 N
0 N
Performance - lifting forces
BL40-2 reinforcement ring
20 -kPa
11 N
0 N
60 -kPa
22 N
0 N
Material
Name
Silicone, SIL 50° Shore A
Colour
Red
Temperature
-40 - 200 °C
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
