Item number: 9909710
4 Variants

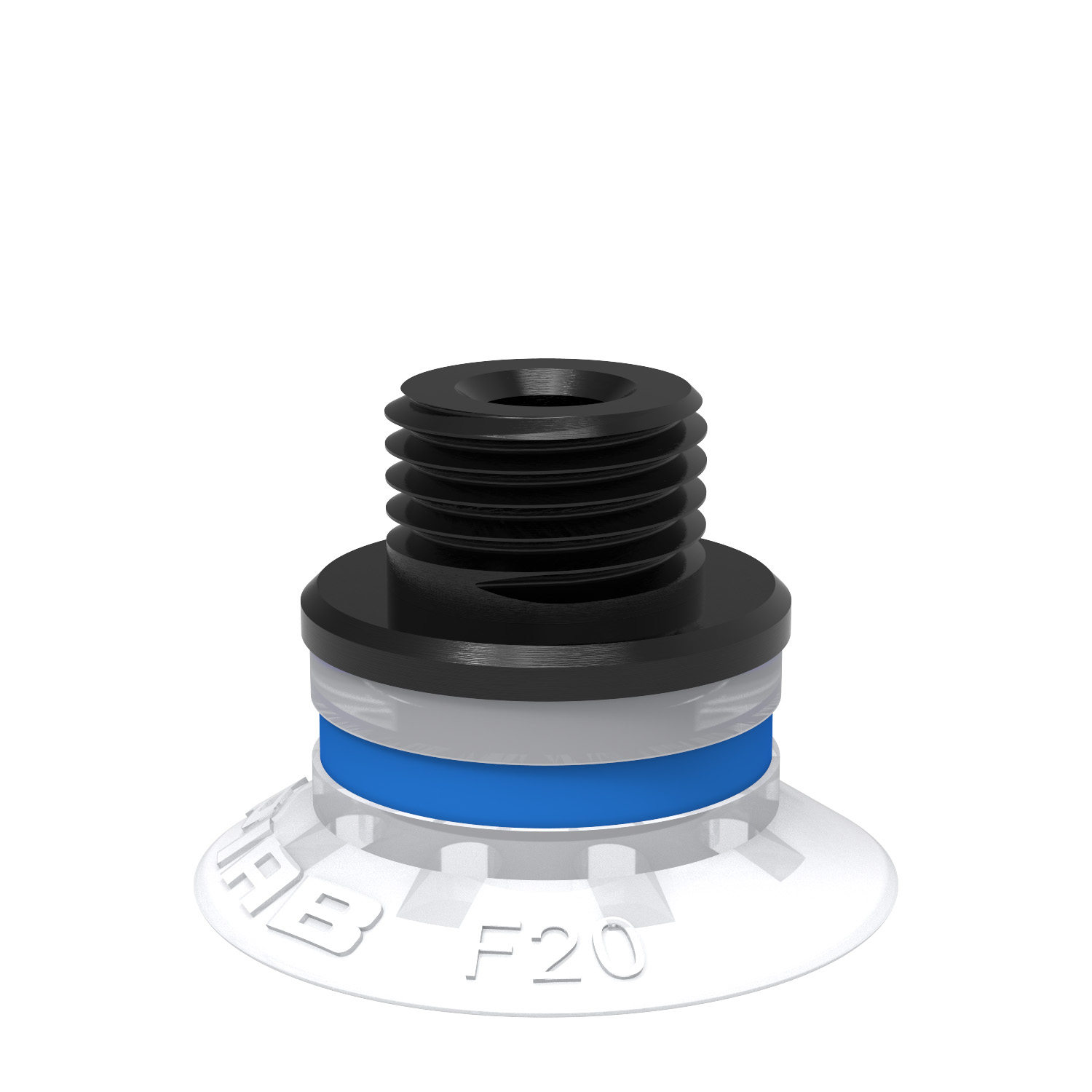

Suction cup F20 Silicone FCM, G1/8" male/M5 female, with mesh filter
The material used is food grade silicone material. It is free from colour pigments, approved by FDA (FDA 21 CFR 177.2600. ) and meets EU's regulation EU 1935/20...
Read more
Login or create account to access all our content and features!
Variants
0200417
9909624
9909666
9909710
Features
- The silicone material complies with FDA 21 CFR 177.2600 & EU 1935/2004.
- Suitable for flat objects.
- Good stability and little inherent movement.
- Recommended when the lifting force is parallel to the surface of the object.
- Cleats prevent thin, sensitive objects from being deformed and gives extra friction when the lifting force is parallel.
Food & beverage
Packaging
- Direct food contact
General
Material
Silicone (SIL)
Characteristics
Food contact materials (FDA & EU), non-detectable
Suction cup model
F
Volume
1 cm³
Weight, min.
1.2 g
Fitting
Fitting option
Filter mesh
Fitting size
1/8" , M5
Fitting style
Female/Male
Fitting type
G-thread , M-thread
Dimension
Height
15.5 mm
Outer diameter, actuated
23.2 mm
Outer diameter, min.
22 mm
Performance - lifting forces
F20
20 -kPa
6 N
5 N
60 -kPa
14.5 N
8 N
90 -kPa
19 N
8.5 N
Material
Name
Silicone (SIL FDA) 50° Shore
Colour
Transparent
Temperature
-40 - 200 °C
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
