Item number: 0200497
3 Variants

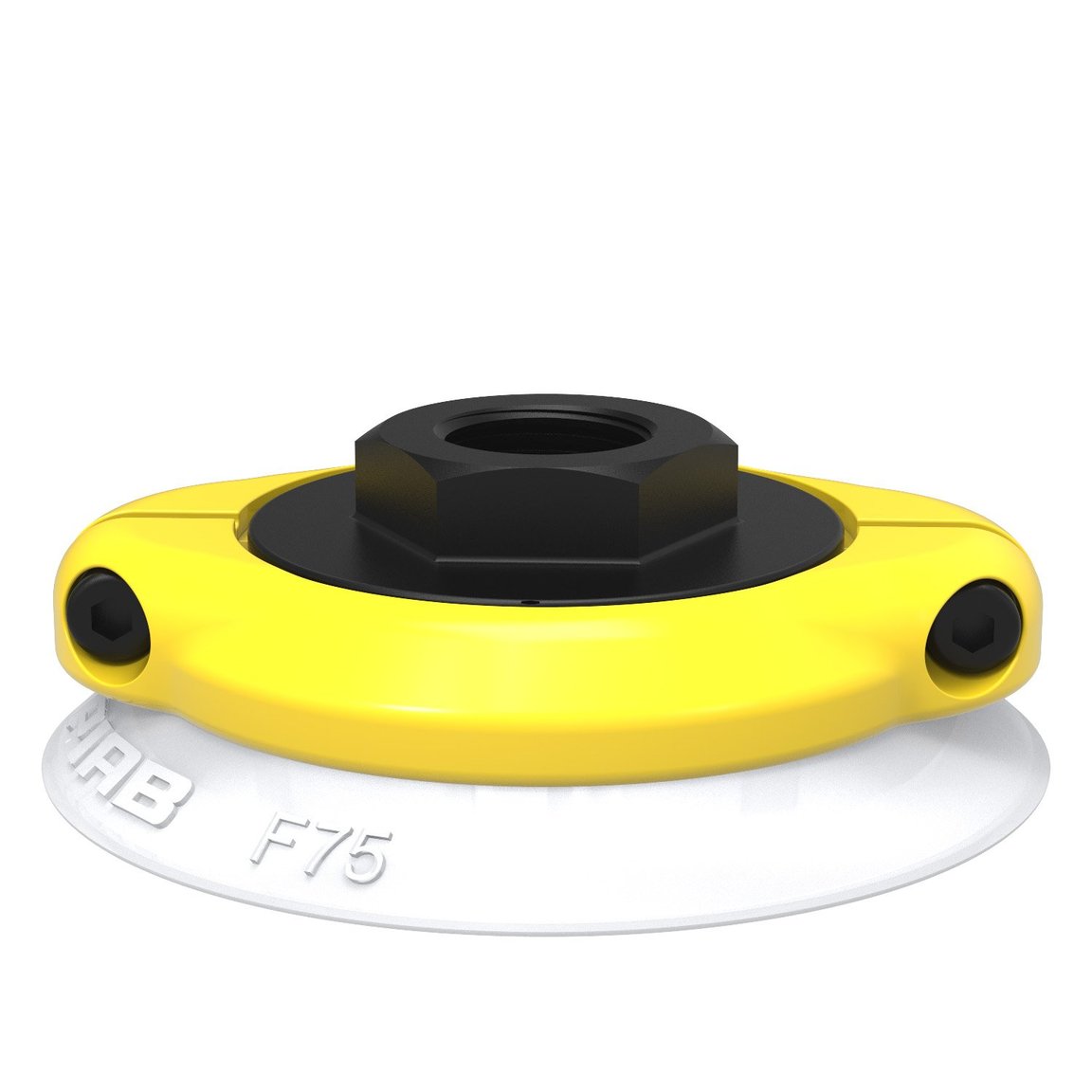

Suction cup F75 Silicone FCM, G3/8" female, with mesh filter
The material used is food grade silicone material. It is free from colour pigments, approved by FDA (FDA 21 CFR 177.2600. ) and meets EU's regulation EU 1935/20...
Read more
Login or create account to access all our content and features!
Variants
0200264
0200497
0200499
Features
- The silicone material complies with FDA 21 CFR 177.2600 & EU 1935/2004.
- Suitable for flat objects.
- Good stability and little inherent movement.
- Recommended when the lifting force is parallel to the surface of the object.
- Cleats prevent thin, sensitive objects from being deformed and gives extra friction when the lifting force is parallel.
Food & beverage
Packaging
- Direct food contact
General
Material
Silicone (SIL)
Characteristics
Food contact materials (FDA & EU), non-detectable
Suction cup model
F
Volume
20 cm³
Weight, min.
23 g
Fitting
Fitting option
Filter mesh
Fitting size
3/8"
Fitting style
Female
Fitting type
G-thread
Dimension
Height
26 mm
Outer diameter, actuated
80 mm
Outer diameter, min.
77 mm
Performance - lifting forces
F75
20 -kPa
80 N
60 N
60 -kPa
200 N
110 N
90 -kPa
270 N
140 N
Material
Name
Silicone (SIL FDA) 50° Shore
Colour
Transparent
Temperature
-40 - 200 °C
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
Dimensional drawings
This activity requires login. Please login or register to receive the full benefits of piab.com.
CAD
CAD
Datasheet
PDF
Certificates
PDF
PDF
