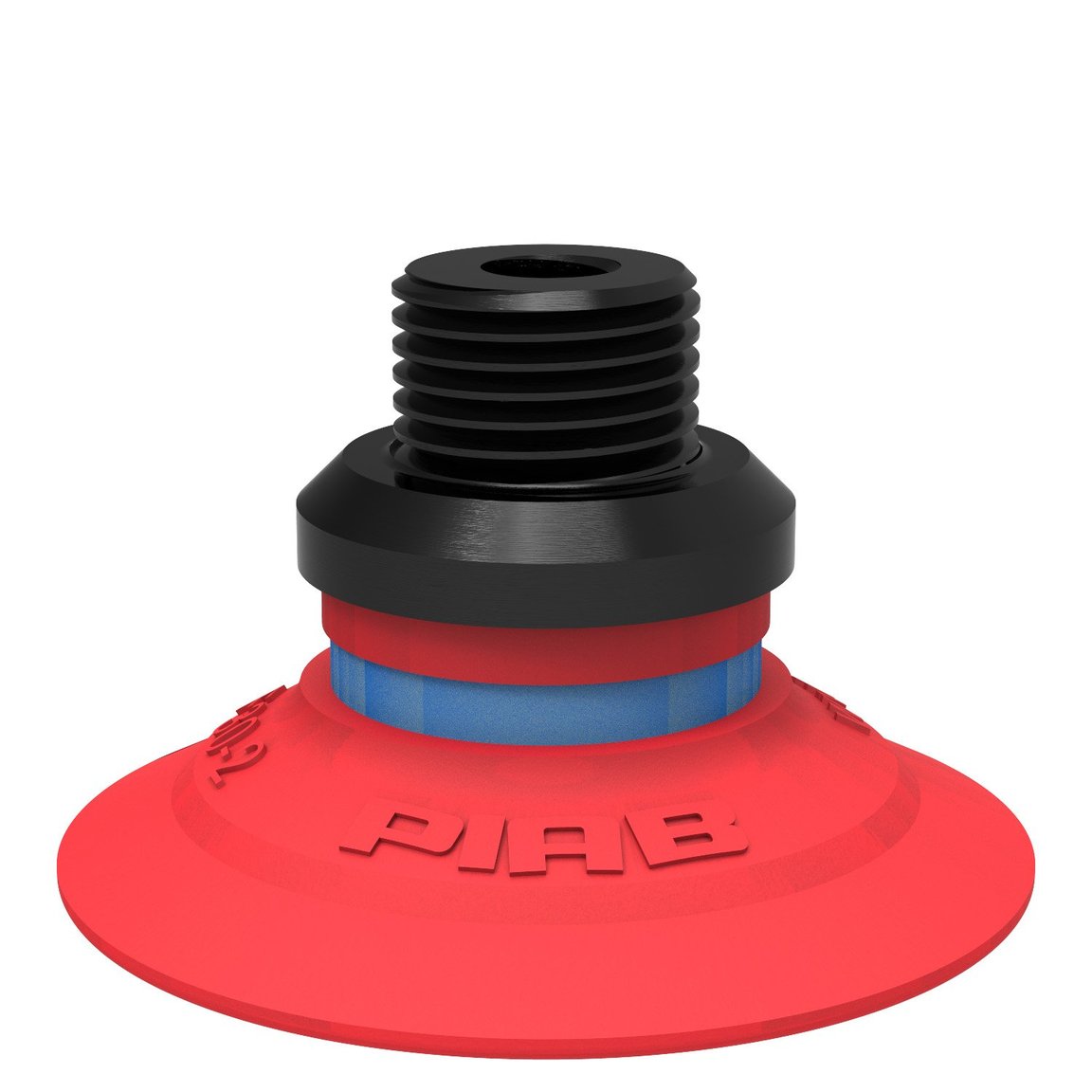

Suction cup F30-2 Silicone, G1/8" male/M5 female PA - 1
Item number: F30-2.20.02CD
25 Variants

Suction cup F30-2 Silicone, G1/8" male/M5 female PA

Suitable for flat objects such as cardboard, sheet metal, glass and porous materials. The cleats stop deformation by preventing suction of the object into the cup. The suction cup has good stability and very little movement. Also suitable when the lifting force is parallel to the surface as the cleats increase friction.
Login or create account to access all our content and features!
DownloadsShare via email

Variants

  • Suction cup F30-2 Chloroprene
    F30-2.10
  • Suction cup F30-2 Chloroprene, M5 female
    F30-2.10.02AA
  • Suction cup F30-2 Chloroprene, G1/8" male, with mesh filter
    F30-2.10.02AB
  • Suction cup F30-2 Chloroprene, 1/8" NPT male, with mesh filter
    F30-2.10.02AC
  • Suction cup F30-2 Chloroprene, G1/8" male/M5 female
    F30-2.10.02AD
  • Suction cup F30-2 Chloroprene, 5xM5 female
    F30-2.10.02AE
  • Suction cup F30-2 Chloroprene, G1/8" male/M5 female, with mesh filter
    F30-2.10.02AF
  • Suction cup F30-2 Chloroprene, M5 female, with dual flow control valve
    F30-2.10.02DA
  • Suction cup F30-2 Chloroprene, G1/8" male, with mesh filter and dual flow control valve
    F30-2.10.02DB
  • Suction cup F30-2 Chloroprene, 1/8" NPT male, with dual flow control valve
    F30-2.10.02DC
  • Suction cup F30-2 Chloroprene, G1/8" male/M5 female, with dual flow control valve
    F30-2.10.02DD
  • Suction cup F30-2 Chloroprene, G1/8" male/M5 female, with cone valve
    F30-2.10.02UV
  • Suction cup F30-2 Chloroprene, G1/8" male/M5 female PA
    F30-2.10.02CD
  • Suction cup F30-2 Silicone
    F30-2.20
  • Suction cup F30-2 Silicone, M5 female
    F30-2.20.02AA
  • Suction cup F30-2 Silicone, G1/8" male, with mesh filter
    F30-2.20.02AB
  • Suction cup F30-2 Silicone, 1/8" NPT male, with mesh filter
    F30-2.20.02AC
  • Suction cup F30-2 Silicone, G1/8" male/M5 female
    F30-2.20.02AD
  • Suction cup F30-2 Silicone, 5xM5 female
    F30-2.20.02AE
  • Suction cup F30-2 Silicone, G1/8" male/M5 female, with mesh filter
    F30-2.20.02AF
  • Suction cup F30-2 Silicone, G1/8" male, with mesh filter and dual flow control valve
    F30-2.20.02DB
  • Suction cup F30-2 Silicone, 1/8" NPT male, with dual flow control valve
    F30-2.20.02DC
  • Suction cup F30-2 Silicone, G1/8" male/M5 female, with dual flow control valve
    F30-2.20.02DD
  • Suction cup F30-2 Silicone, G1/8" male/M5 female PA
    F30-2.20.02CD
  • Suction cup F30-2 Silicone, G1/8" male/M5 female, with cone valve
    F30-2.20.02UV

Features

  • Suitable for flat objects.
  • Good stability and little inherent movement.
  • Recommended when the lifting force is parallel to the surface of the object.
  • Cleats prevent thin, sensitive objects from being deformed and gives extra friction when the lifting force is parallel.
