Item number: 0101752
41 Variants

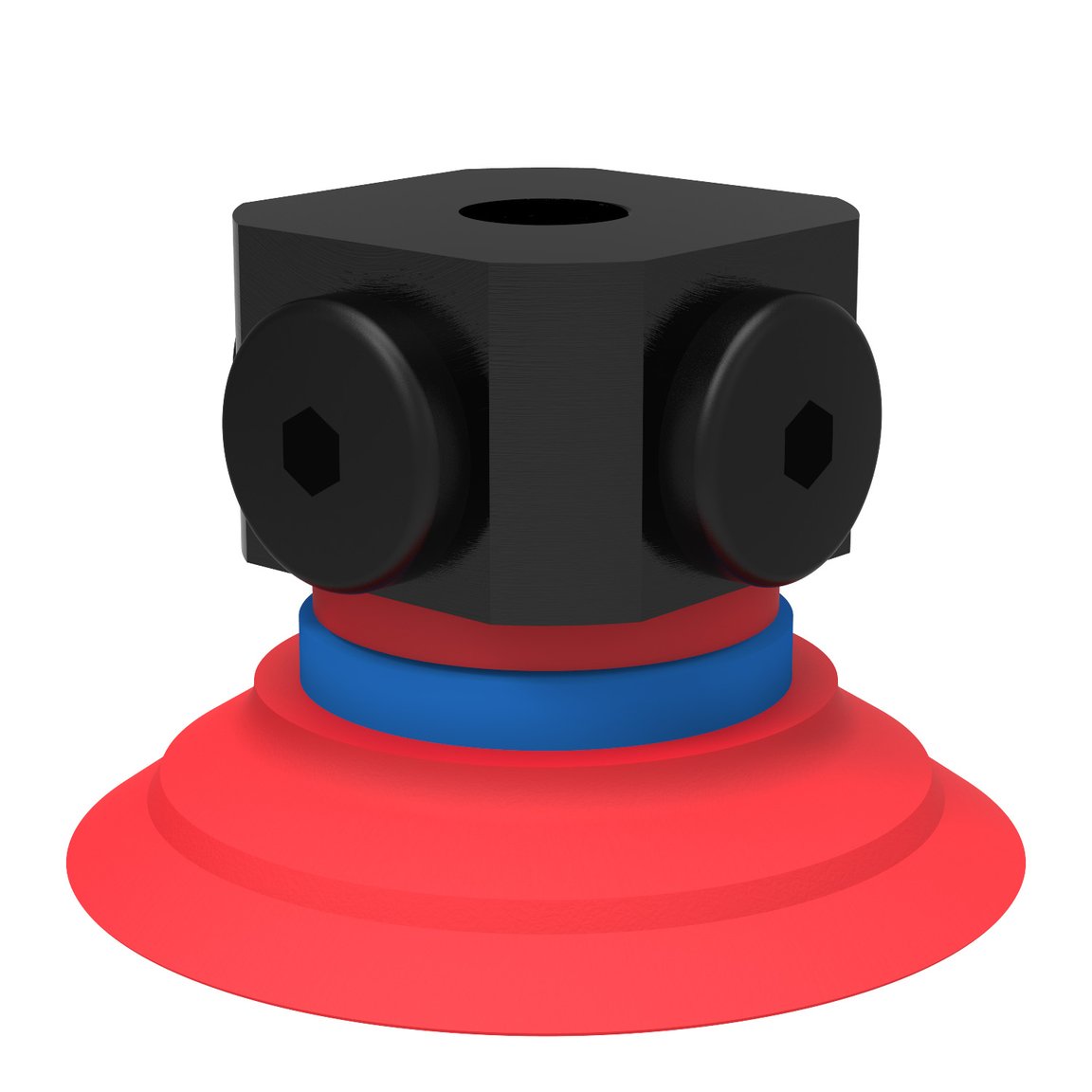

Suction cup F50-2 Silicone, 5x1/8" NPSF female
Suitable for flat objects such as cardboard, sheet metal, glass and porous materials. The cleats stop deformation by preventing suction of the object into the c...
Read more
Login or create account to access all our content and features!
Variants
0108166
0108181
0108182
0108183
9906576
9909460
9909461
9909462
9909463
9909465
0101138
0101749
0101747
0101750
0101748
0101751
0101752
0101753
0101754
0101755
0101756
0101757
0101758
0101759
0110346
3150051S
0101137
0101766
0101767
0101768
0101769
0101770
0101771
0101772
0101773
9909458
0101775
0101776
0101778
0110952
3150051P
Features
- Suitable for flat objects.
- Good stability and little inherent movement.
- Recommended when the lifting force is parallel to the surface of the object.
- Cleats prevent thin, sensitive objects from being deformed and gives extra friction when the lifting force is parallel.
Logistics
Packaging
General
Material
Silicone (SIL)
Characteristics
Dry sheet metal
Suction cup model
F
Volume
10 cm³
Weight, min.
14 g
Fitting
Fitting option
None
Fitting size
5×1/8"
Fitting style
Female
Fitting type
NPSF-thread
Dimension
Height
35.5 mm
Outer diameter, actuated
54.6 mm
Outer diameter, min.
53 mm
Performance - lifting forces
F50-2
20 -kPa
36 N
24 N
60 -kPa
74 N
40 N
90 -kPa
96 N
50 N
Material
Name
Silicone, SIL 50° Shore A
Colour
Red
Temperature
-40 - 200 °C
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
Dimensional drawings
