Item number: 0101915
19 Variants

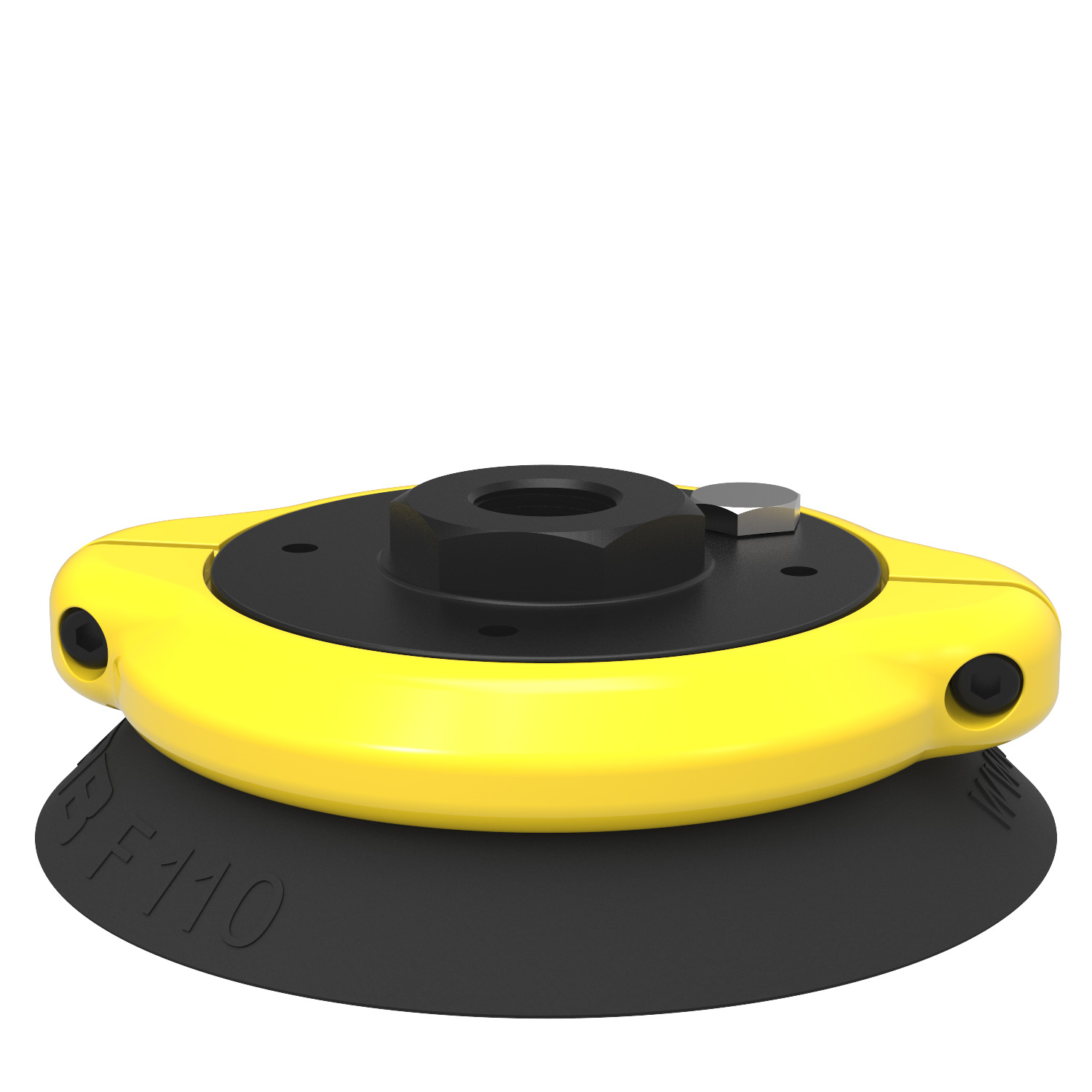

Suction cup F110 Nitrile-PVC, G3/8" female, with mesh filter
Suitable for flat objects such as cardboard, sheet metal, glass and porous materials. The cleats stop deformation by preventing suction of the object into the c...
Read more
Login or create account to access all our content and features!
Variants
0101908
0101909
0101910
0101914
0101915
0101916
0101917
0101921
0108188
0108189
0108190
3150038P
3150038S
3150038T
3150132P
3150132S
3150132T
3150021P
3150021T
Features
- Suitable for flat objects.
- Good stability and little inherent movement.
- Recommended when the lifting force is parallel to the surface of the object.
- Cleats prevent thin, sensitive objects from being deformed and gives extra friction when the lifting force is parallel.
Logistics
Packaging
General
Material
Nitrile-PVC (NPV)
Characteristics
Dry sheet metal
Suction cup model
F
Volume
70 cm³
Weight, min.
66 g
Fitting
Fitting option
Filter mesh
Fitting size
3/8"
Fitting style
Female
Fitting type
G-thread
Dimension
Height
36.2 mm
Outer diameter, actuated
115.3 mm
Outer diameter, min.
112 mm
Performance - lifting forces
F110
20 -kPa
140 N
140 N
60 -kPa
420 N
250 N
90 -kPa
560 N
300 N
Material
Name
Nitrile-PVC (NPV)
Colour
Black
Temperature
0 - 90 °C
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
Dimensional drawings
