Item number: 3150133P
12 Variants

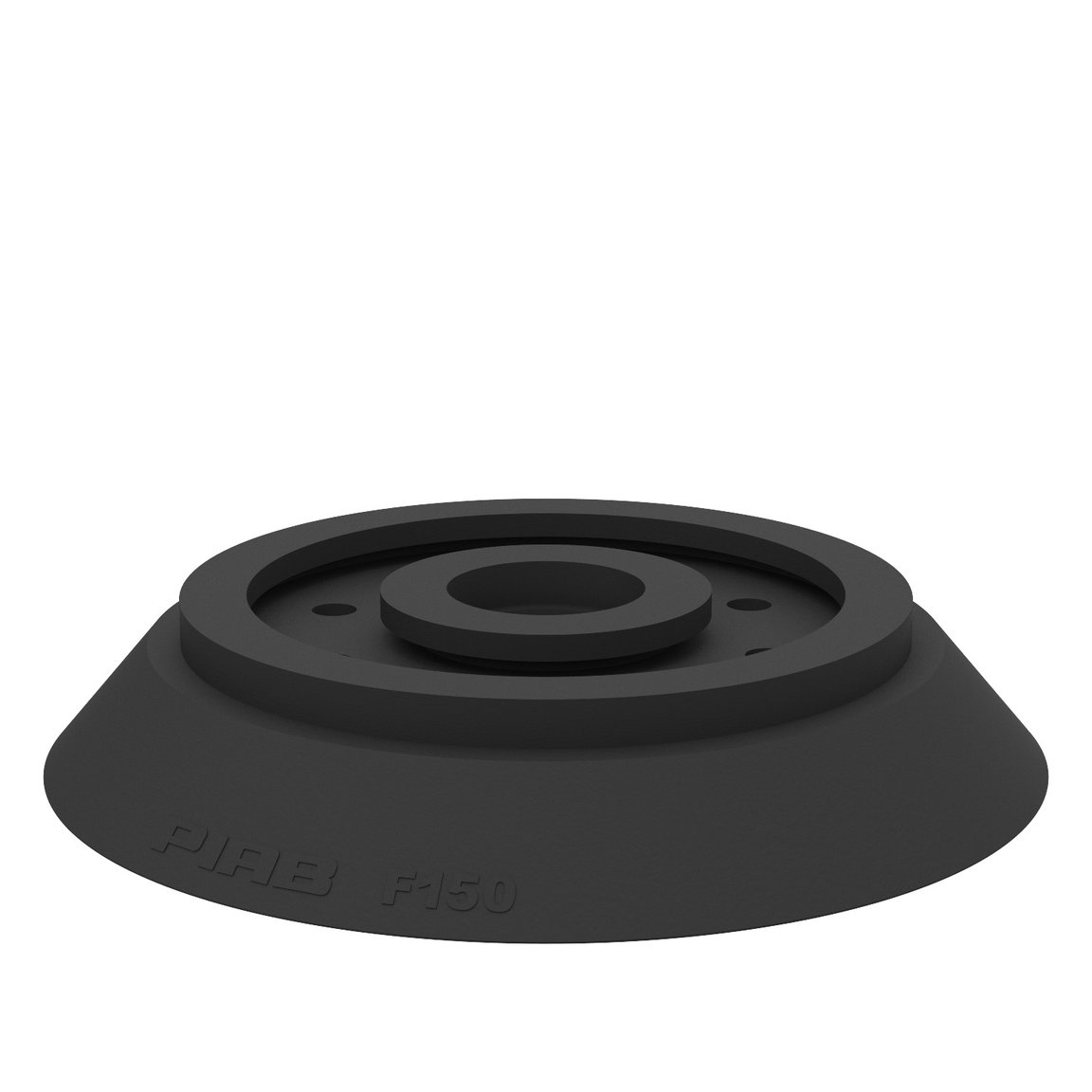

Suction cup F150 Nitrile-PVC
Suitable for flat objects such as cardboard, sheet metal, glass and porous materials. The cleats stop deformation by preventing suction of the object into the c...
Read more
Login or create account to access all our content and features!
Variants
0101934
0101935
0101937
0101938
0101939
0101941
3150022P
3150022S
3150039P
3150039S
3150133P
3150133S
Features
- Suitable for flat objects.
- Good stability and little inherent movement.
- Recommended when the lifting force is parallel to the surface of the object.
- Cleats prevent thin, sensitive objects from being deformed and gives extra friction when the lifting force is parallel.
Logistics
Packaging
General
Material
Nitrile-PVC (NPV)
Characteristics
Dry sheet metal
Suction cup model
F
Volume
160 cm³
Weight, min.
200 g
Fitting
Fitting option
None
Fitting size
None
Fitting style
None
Fitting type
None
Dimension
Height
26.4 mm
Outer diameter, actuated
157 mm
Outer diameter, min.
152 mm
Performance - lifting forces
F150
20 -kPa
300 N
250 N
60 -kPa
850 N
600 N
90 -kPa
1100 N
800 N
Material
Name
Nitrile-PVC (NPV)
Colour
Black
Temperature
0 - 90 °C
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
