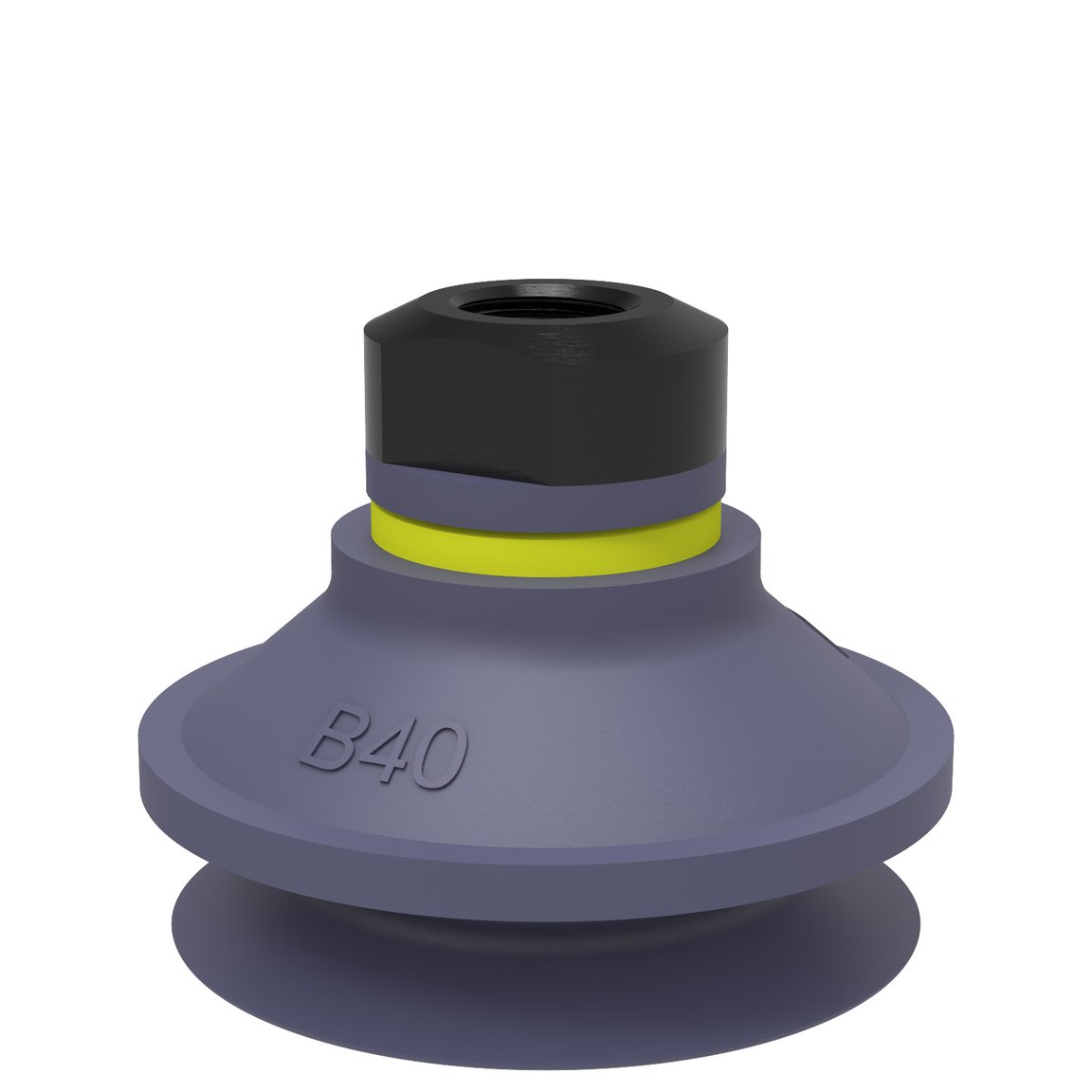

Suction cup B40 HNBR, 1/8" NPSF female, with dual flow control valve
Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting moveme...
Read more
Login or create account to access all our content and features!
Variants
0101105
0101106
0101456
0101457
0101458
0101459
0101460
0101461
0101462
0101463
0101464
0101466
0101467
0101469
0101470
0101471
0101472
0101473
0101474
0101475
0101476
0101477
0108081
0108082
0108169
0108170
0109843
0110337
9907166
9908658
9906571
9908774
9908775
9908776
9908777
9908778
9908779
9908780
Features
- Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
- The lifting movement can be used to separate small and thin objects.
- Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement.
Logistics
Packaging
General
Material
HNBR
Characteristics
Dry sheet metal , Glass handling , High/low temp cup (plastic) , Plastic injection molded parts , Mark free
Leakage flow, max.
0.13 Nl/s
Suction cup model
B
Valve restriction
0.9 mm
Volume
15 cm³
Weight, min.
10 g
Fitting
Fitting option
Dual flow control valve
Fitting size
1/8"
Fitting style
Female
Fitting type
NPSF-thread
Dimension
Height
36 mm
Outer diameter, min.
43 mm
Performance - lifting forces
B40
20 -kPa
22 N
17.1 N
60 -kPa
39 N
26.3 N
90 -kPa
49 N
30.5 N
Material
Name
HNBR 50° Shore A
Colour
Blue
Temperature
-30 - 140 °C
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
Dimensional drawings
