Item number: 0222781
83 Variants

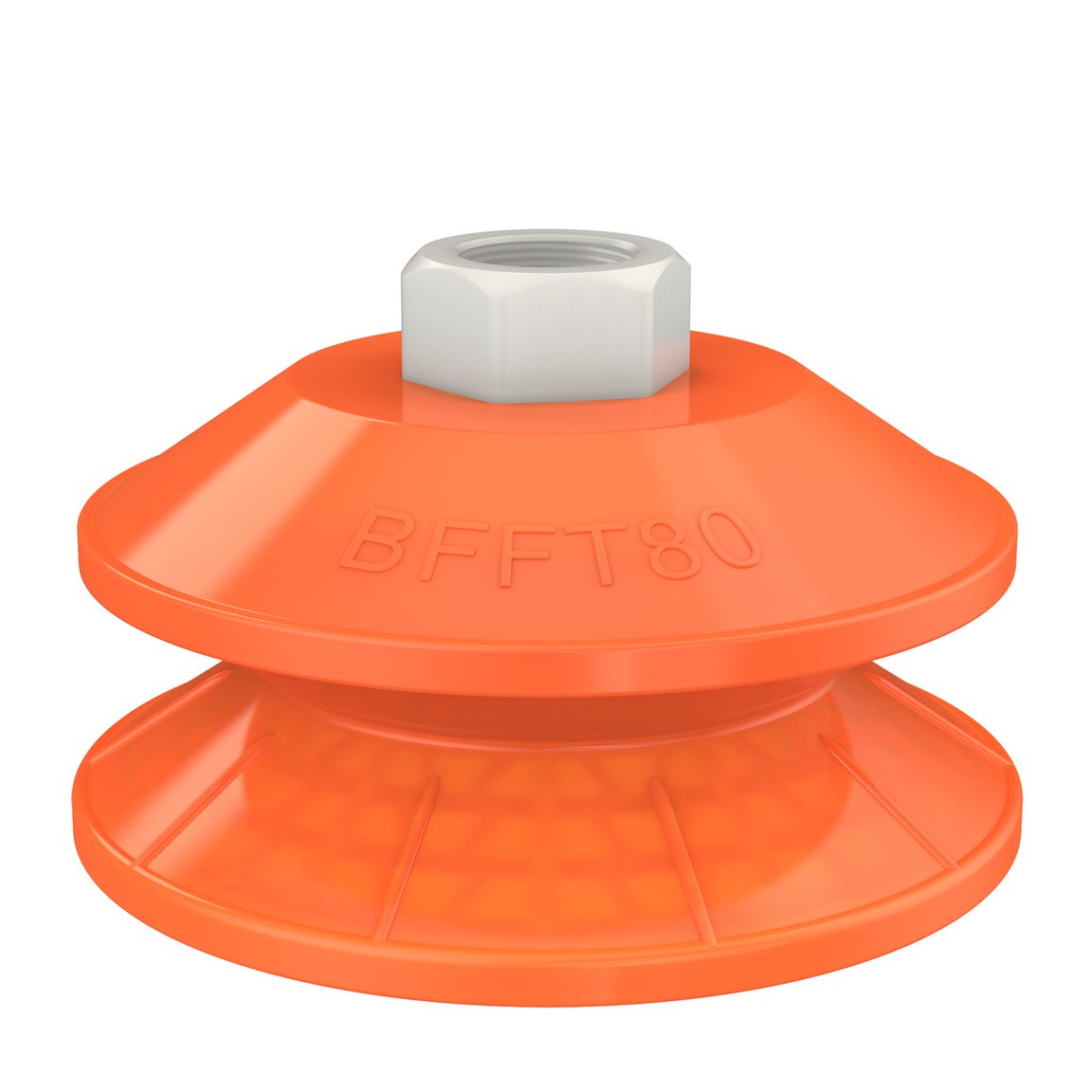

Suction cup BFFT80P-2 Polyurethane 60/60/30, G3/8" female plastic
The BFFT-P design is suitable for oily surfaces, uneven/curved surfaces or if level compensation is needed, for example in de-stacking applications. The flat inner support gives stability during movement in any orientation. Special designed friction cups for oily surfaces, such as sheets in metal forming processes. Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 3–5 times more than corresponding conventional suction cups.
Login or create account to access all our content and features!
Fitting
M10x1.5 MaleSS
M10x1.5 MaleFilter mesh, SS
G 1/8" MaleFilter mesh, Brass
G 1/4" MaleBrass
G 1/4" MaleFilter mesh, Al
G 1/4" MaleAl
G 3/8" MaleFilter mesh, Al
G 3/8" MaleAl
G 3/8" Male, 1/8" NPSF FemaleFilter mesh, Al
G 3/8" Long FemaleAl
G 3/8" Long FemaleFilter mesh, Al
G 3/8" Long FemaleFilter disc, Al
G 1/4" FemaleAl
G 1/4" FemaleFilter mesh, Brass
G 1/4" FemaleFilter mesh, Al
G 3/8" FemaleFilter mesh, PA
G 3/8" FemaleAl
G 3/8" FemaleFilter mesh, Al
G 3/8" FemalePA
3/8" NPT FemaleBrass
3/8" NPT FemaleFilter mesh, Brass
3/8" NPT FemaleFilter mesh, Al
T-slot Al
T-slot Filter mesh, Al
Not compatible with the selected fitting or size. Choosing this option will adjust the size/fitting.
Features
- Special designed friction cups for thin (0.6-0.8 mm) oily metal sheets, such as outer body car parts in a press-to press forming process.
- Long lasting material, normal wear on friction cup will not affect the long term grip performance.
- Refined internal friction pattern provides additional grip performance, the suction cups can withstand high shear forces, typically 3–5 times more than corresponding conventional suction cups.
- Best choice if > 0.1g/m2 press oil is used on the sheet but also a great choice for dry metal sheets.
- The "BFFT" design is suitable for thin flat or uneven/curved surfaces and if level compensation is needed, for example in de-stacking applications.
- The flat inner support, made of dual hardness, gives stability and good grip during movement in any orientation.
- DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled and has a fantastic elastic memory, even after hundreds of thousands of cycles.
