Item number: 0210555
9 Variants

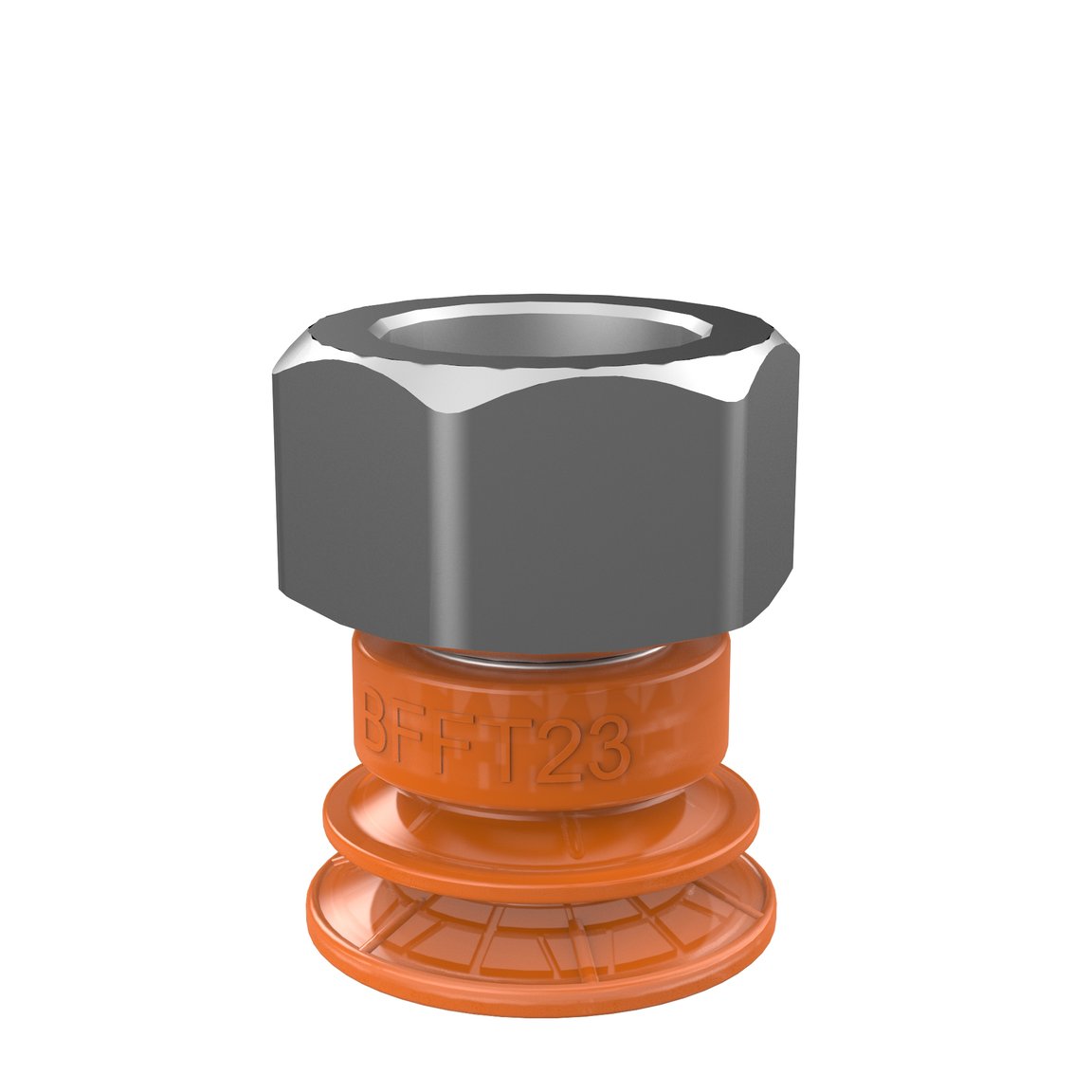

Suction cup BFFT23P Polyurethane 60/60/30, G3/8" female
Login or create account to access all our content and features!
Variants
0210170
0210555
0210556
0210557
0210558
0210559
0210560
0210561
0210562
Features
- Special designed friction cups for thin (0.6-0.8 mm) oily metal sheets, such as outer body car parts in a press-to press forming process.
- Long lasting material, normal wear on friction cup will not affect the long term grip performance.
- Refined internal friction pattern provides additional grip performance, the suction cups can withstand high shear forces, typically 3–5 times more than corresponding conventional suction cups.
- Best choice if > 0.1g/m2 press oil is used on the sheet but also a great choice for dry metal sheets.
- The "BFFT" design is suitable for thin flat or uneven/curved surfaces and if level compensation is needed, for example in de-stacking applications.
- The flat inner support, made of dual hardness, gives stability and good grip during movement in any orientation.
- DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled and has a fantastic elastic memory, even after hundreds of thousands of cycles.
Automotive
- Bodysides & framing
- De-stacking
- Door on / off ergo tools
- Gas tank assembly and installation
- Glass assembly & installation
- Press-transfer
General
Material
Polyurethane (PU)
Characteristics
Oily sheet metal
Suction cup model
BFFT
Volume
1.08 cm³
Weight, min.
14.4 g
Fitting
Material
Al
Fitting size
3/8"
Fitting style
Female
Fitting type
G-thread
Dimension
Height
29.1 mm
Height 2 (Actuated)
24.2 mm
Outer diameter, actuated
24 mm
Outer diameter, min.
23 mm
Performance - lifting forces
BFFT23 Dry metal sheet
60 -kPa
19 N
15 N
90 -kPa
27 N
19 N
Performance - lifting forces
BFFT23 Oily metal sheet
60 -kPa
17 N
9 N
90 -kPa
23 N
12 N
Material
Name
Polyurethane (PU30)
Colour
Yellow
Temperature
10 - 50 °C
Hardness
30 °Shore A
Material
Name
Polyurethane (PU60)
Colour
Orange
Temperature
10 - 50 °C
Hardness
60 °Shore A
Material
Name
Polyurethane (PU60)
Colour
GreenTransparent
Temperature
10 - 50 °C
Hardness
60 °Shore A
Material resistance
Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Petrol
Wear resistance
Material resistance
Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Petrol
Wear resistance
Material resistance
Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Petrol
Wear resistance
