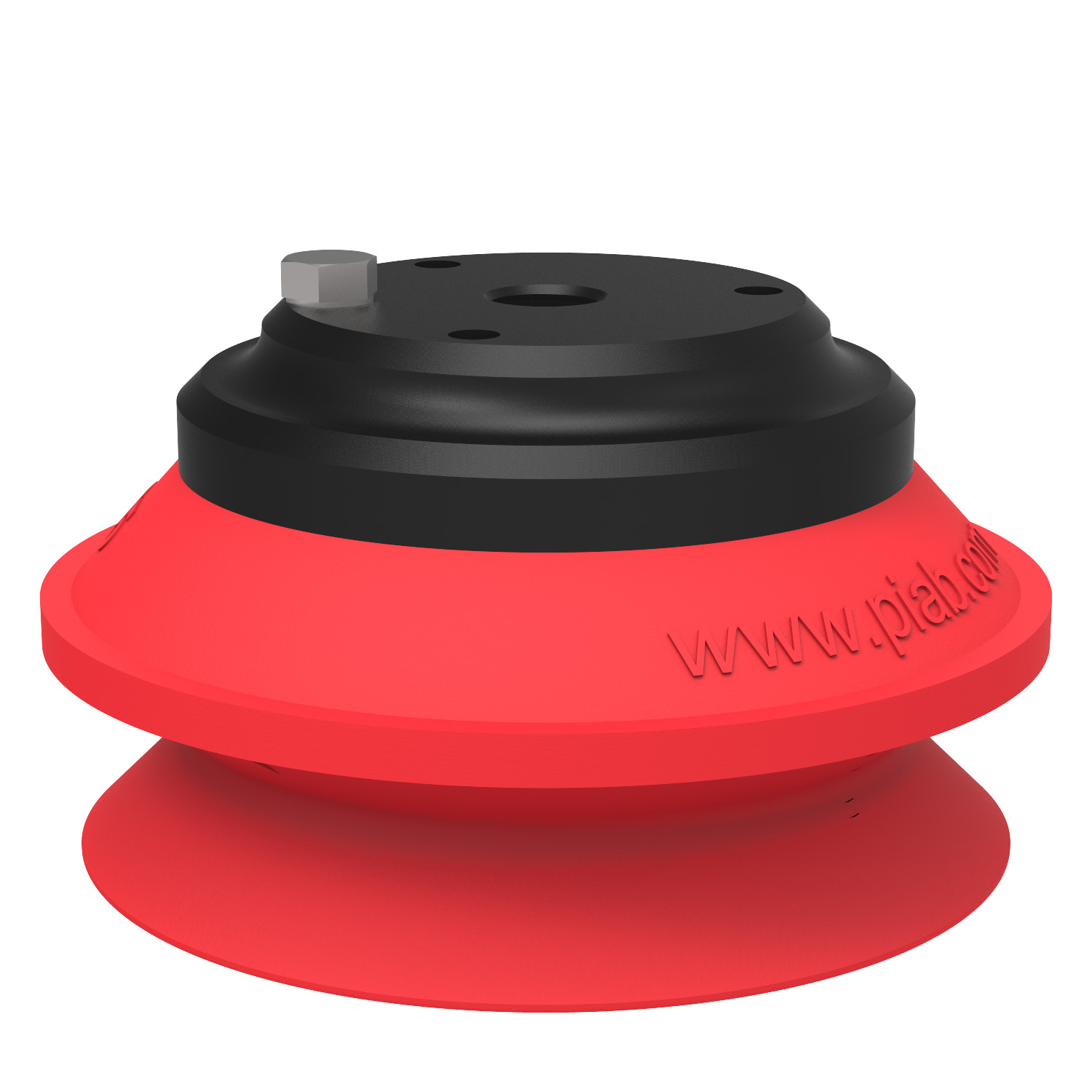

Suction cup B75 Silicone, 1/8" NPSF female Al, with mesh filter - 1
품목 번호: B75.20.07UA
30 변형

Suction cup B75 Silicone, 1/8" NPSF female Al, with mesh filter

Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items. Materials used are silicone, conductive silicone, chloroprene, HNBR and nitrile-PVC.
로그인하거나 계정을 생성하여 모든 콘텐츠와 기능에 액세스하세요!
다운로드이메일로 공유

변형

  • Suction cup B75 Silicone, 1/8" NPSF female, with mesh filter
    B75.20.07NA
  • Suction cup B75 Silicone, G3/8" female, with mesh filter
    B75.20.07ND
  • Suction cup B75 Silicone, 3/8" NPSF female, with mesh filter
    B75.20.07NE
  • Suction cup B75 Silicone, G1/2" female, with mesh filter
    B75.20.07NF
  • Suction cup B75 Nitrile-PVC, 1/8" NPSF female, with mesh filter
    B75.30.07NA
  • Suction cup B75 Nitrile-PVC, G3/8" female, with mesh filter
    B75.30.07ND
  • Suction cup B75 Nitrile-PVC, 3/8" NPSF female, with mesh filter
    B75.30.07NE
  • Suction cup B75 Nitrile-PVC, G1/2" female, with mesh filter
    B75.30.07NF
  • Suction cup B75 HNBR, 1/8" NPSF female, with mesh filter
    B75.37.07NA
  • Suction cup B75 HNBR, G3/8" female, with mesh filter
    B75.37.07ND
  • Suction cup B75 HNBR, 3/8" NPSF female, with mesh filter
    B75.37.07NE
  • Suction cup B75 HNBR, G1/2" female, with mesh filter
    B75.37.07NF
  • Suction cup B75 Silicone, 1/8" NPSF female Al, with mesh filter
    B75.20.07UA
  • Suction cup B75 Silicone, 3/8" NPSF female Al, with mesh filter
    B75.20.07UB
  • Suction cup B75 Silicone, G1/2" female Al, with mesh filter
    B75.20.07UD
  • Suction cup B75 Nitrile-PVC, 1/8" NPSF female Al, with mesh filter
    B75.30.07UA
  • Suction cup B75 Nitrile-PVC, 3/8" NPSF female Al, with mesh filter
    B75.30.07UB
  • Suction cup B75 Nitrile-PVC, G1/2" female Al, with mesh filter
    B75.30.07UD
  • Suction cup B75 Nitrile-PVC, 1/4" NPT female Al, with mesh filter & 10-32 addl. conn.
    B75.30.07UH
  • Suction cup B75 HNBR, 1/8" NPSF female Al, with mesh filter
    B75.37.07UA
  • Suction cup B75 HNBR, 3/8" NPSF female Al, with mesh filter
    B75.37.07UB
  • Suction cup B75 HNBR, G1/2" female Al, with mesh filter
    B75.37.07UD
  • Suction cup B75 HNBR, 1/4" NPT female Al, with mesh filter & 10-32 addl. conn.
    B75.37.07UH
  • Suction cup B75 Silicone, 1/4" NPT female Al, with mesh filter & 10-32 addl. conn.
    B75.20.07UH
  • Suction cup B75 Nitrile-PVC with washer
    B75.30.W
  • Suction cup B75 Silicone with washer
    B75.20.W
  • Suction cup B75 HNBR with washer
    B75.37.W
  • Suction cup B75 Nitrile-PVC
    B75.30
  • Suction cup B75 Silicone
    B75.20
  • Suction cup B75 HNBR
    B75.37

특징

  • Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
  • The lifting movement can be used to separate small and thin objects.
  • Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement.
